SRM-2620U ASSEMBLY
X7502341900 19
© 10/2016 ECHO Inc.
ENGLISH
ASSEMBLY

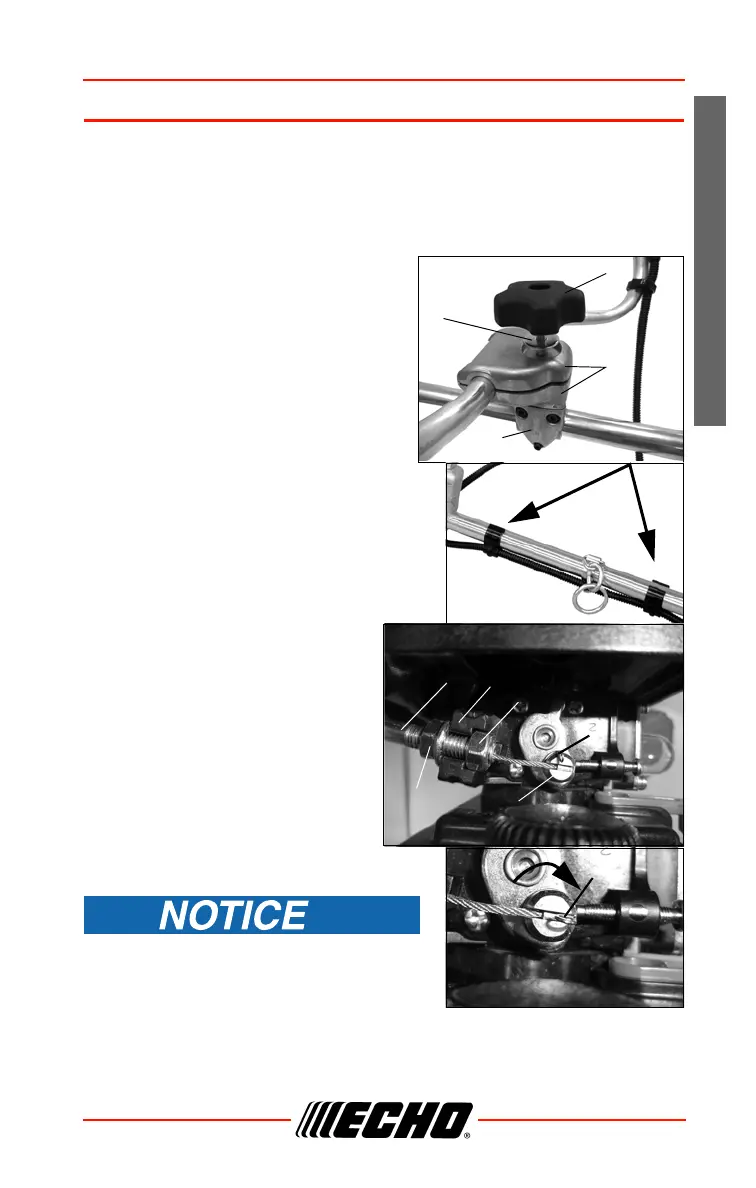

U-Handle Installation
1. Install upper and lower u-handle
clamps (A) onto u-handle, and
secure to mounting bracket on drive
shaft (B) with washer (C) and u-
handle bolt (D). Do not tighten bolt
securely until final adjustments are
completed.
2. Position u-handle as shown and
tighten u-handle bolt.
3. Route throttle linkage and ignition
lead assembly along shaft and clip as
shown.
Throttle Linkage and
Ignition Leads
1. Close choke and remove air
filter cover.
2. Place throttle wire assembly (A)
into adjustment fixture (B) and
install wire end into large
carburetor throttle swivel hole
(C).
3. Turn throttle wire retaining clip
(X) clockwise to lock into place.
Assure throttle wire retaining clip
remains in place as shown when
removing or installing air filter cover.
4. Check throttle for freedom of movement and that wide open throttle /
low idle extremes are adjusted properly.
Parts Required: U-Handle, lower u-handle clamp, upper u-handle
clamp, u-handle bolt, flat washer
A
B
C
D
A
B
C
X
D
E
X
