Echo SRM-3020T User Manual

SRM-3020T MAINTENANCE
X7502350100 39
© 04/2018 ECHO Inc.
ENGLISH

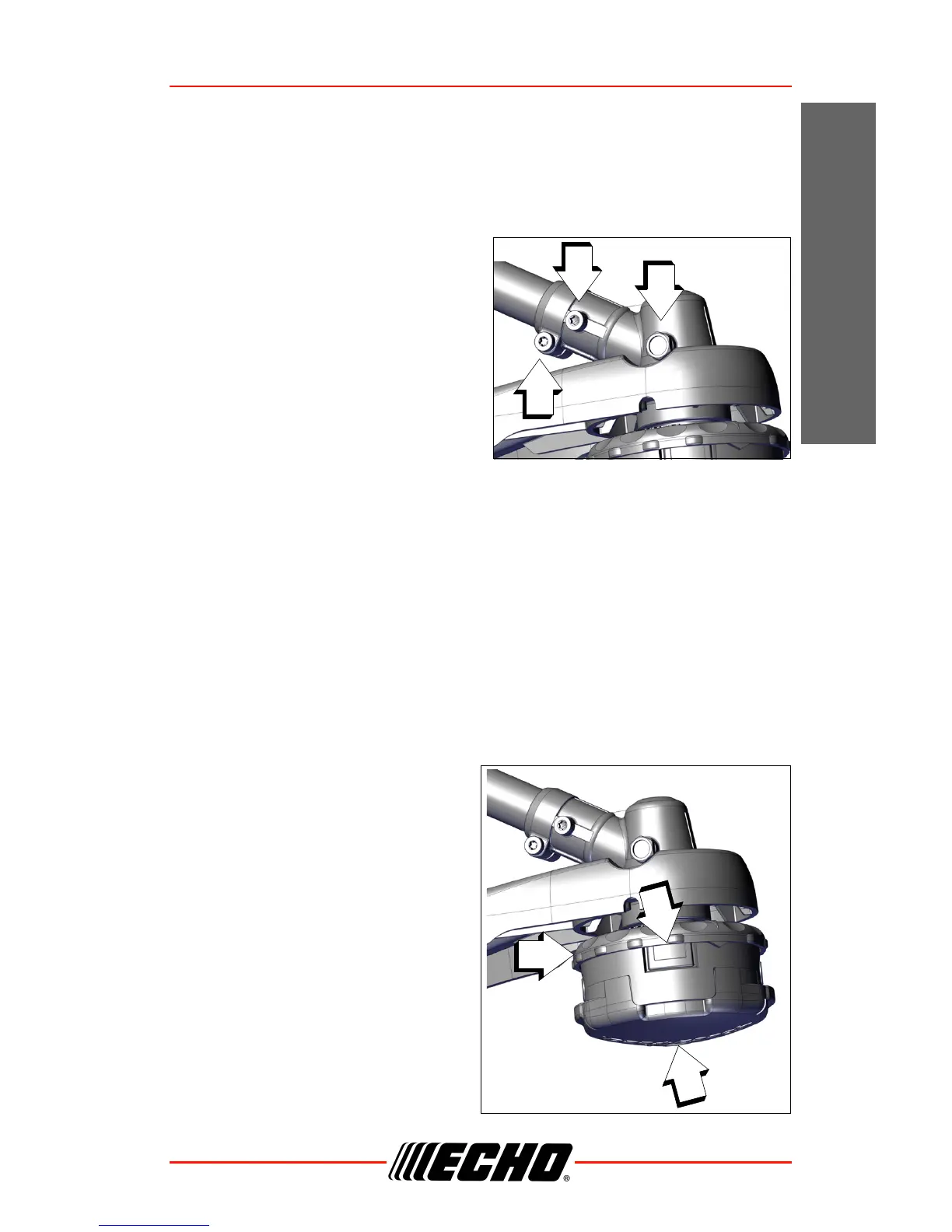

Lubrication
Level 1.
Gear Housing
1. Clean all loose debris from gear
case.
2. Remove plug (A) and check level
of grease.
3. Add grease if necessary. DO
NOT over-fill.
Drive Shaft
1. Loosen screw (B) and remove
locating screw (C). Pull gear case and shieldfrom drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean and re-coat
with 15 ml (0.5 oz.) of grease.
3. Slide the flexible cable back in the drive housing. DO NOT get dirt on
the flex cable.
4. Install the gear housing and shield assembly.
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
®
head disassembly is not
necessary. However, if circumstances require disassembly,
follow these instructions.
1. Press top of locking tabs (A) on
both sides of Speed Feed
®
head to release cover (B) from
eyelet carrier (C).
2. Remove cover from eyelet
carrier.
Parts Required: Lithium Based Grease.
B
C
A
B
A
C
