u-h a n d l e I n s t a l l a t I o n
Tools Required: 17 & 19 mm wrench, 4 mm hex wrench
Parts Required: U-Handle, Clamp w/screws, 8 mm x 55 mm hex
bolt,
8 mm at washer

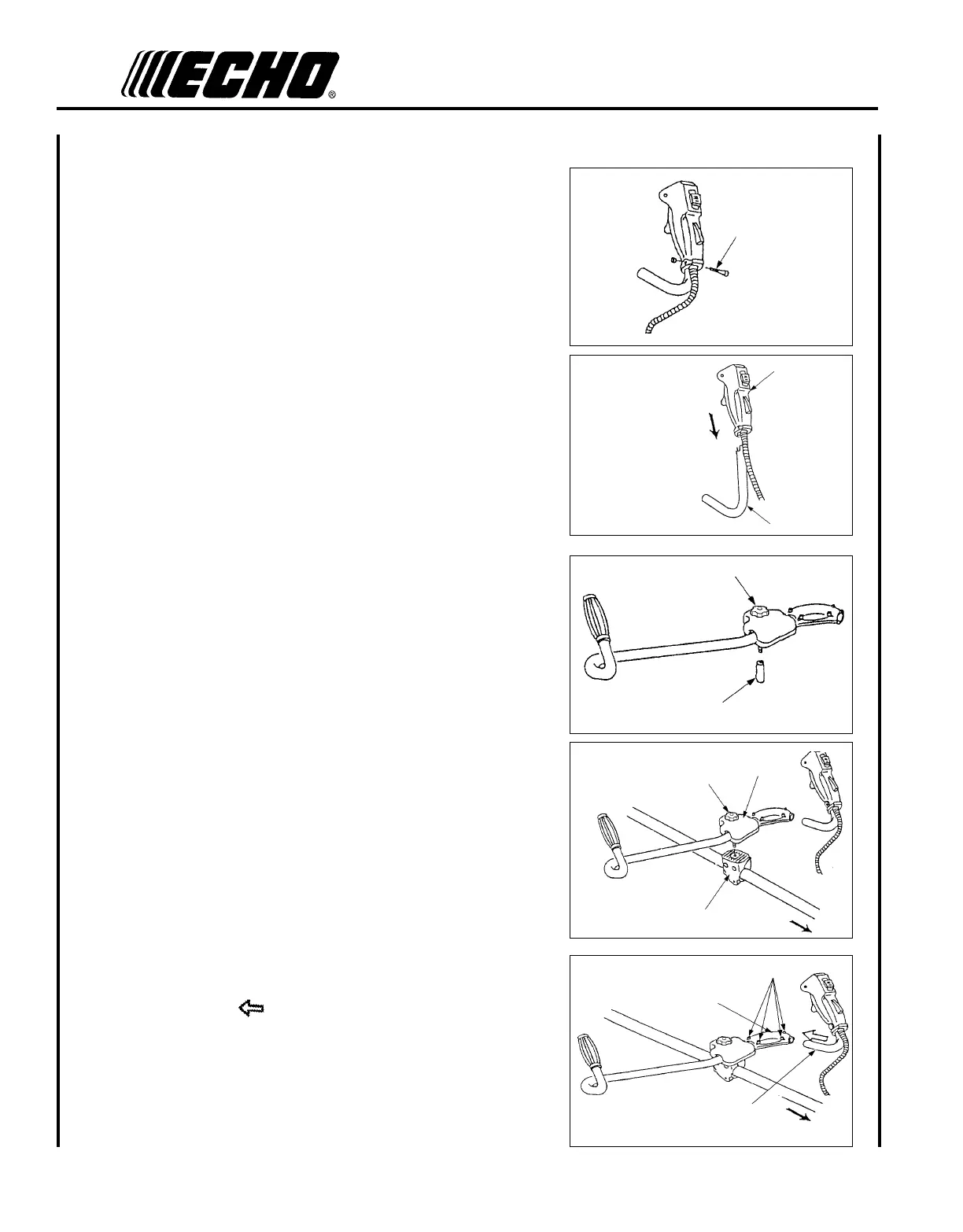

1. Remove assembling bolt (A) from right hand grip. Install right
hand grip (B) onto right hand U-handle (C) until bolt hole in U-
handle is visible through bolt hole in bottom of grip. Grip should
not rotate on handle.
2. Install assembling bolt to secure grip onto U-handle.
3. Remove bolt retainer tube (D) from end of handle assembling bolt
(E).
4. Install handle assembling bracket (upper) (F) in handle assembling
bracket (lower) (G) and secure handle by tightening handle assem-
bling bolt (E) loosely.
5. Loosen 4 right handle assembling bolts (H) and insert right hand
U-handle (C) into right handle assembling bracket (I). (toward
direction of arrow
).
D
E
F
G
E
H
I
C
