26

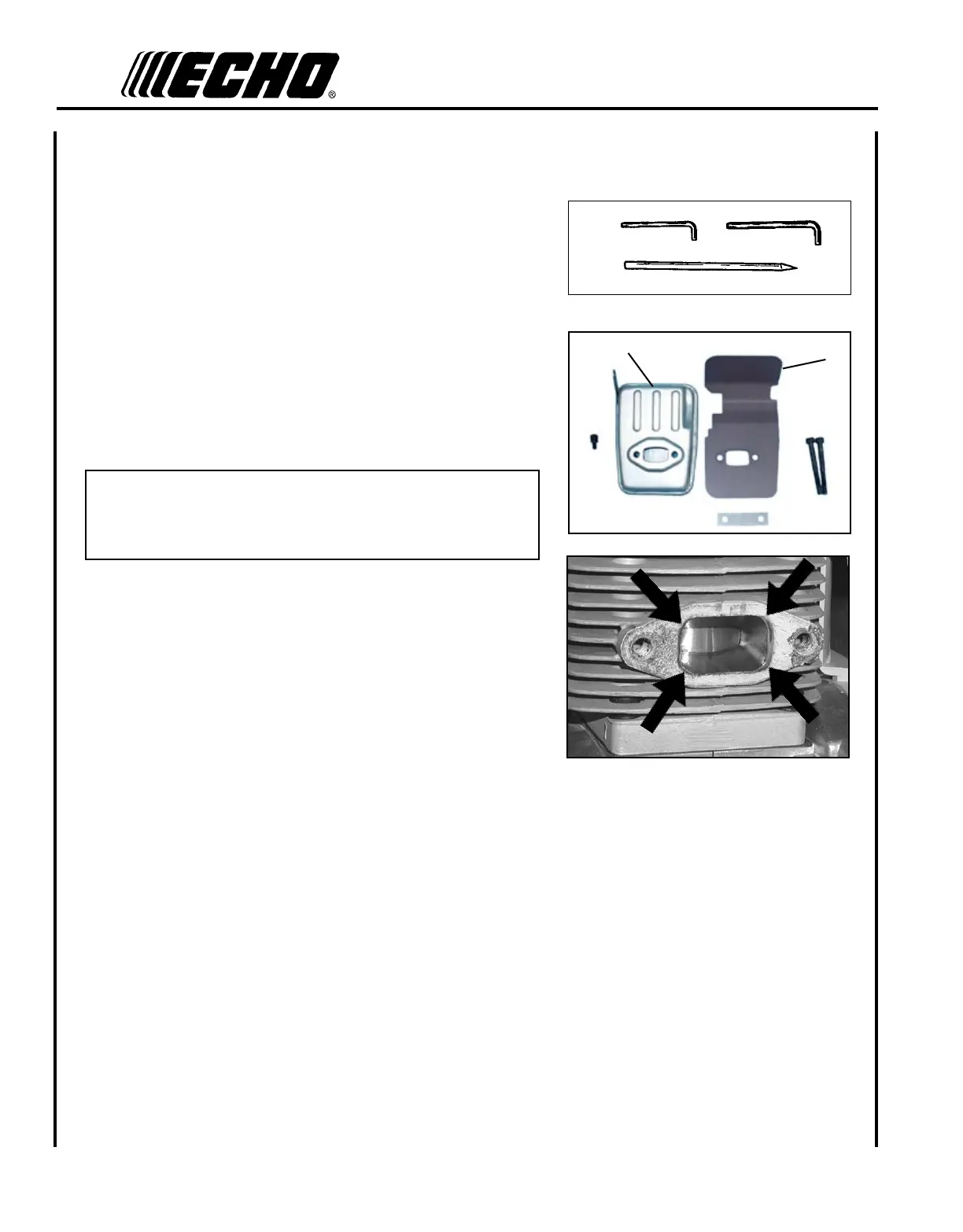

Exhaust Port Cleaning
Level 2.
Tools required: 4 & 5 mm Hex Wrench, Wood or plastic scraper
Parts Required: As needed: Heat Shield
1. Remove spark plug lead from spark plug, and remove mufer
cover (2 screws).
2. Place piston at top dead center. Remove mufer (A) and heat shield
(B).
3. Use a wood or plastic scraping tool to clean deposits from cylinder
exhaust port.
IMPORTANT
Never use a metal tool to scrape carbon from the exhaust port.
Do not scratch the cylinder or piston when cleaning the exhaust
port. Do not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and mufer.
6. Tighten mufer mounting bolts (or nuts) to 95-130 in•lbf (110-150
kgf•cm).
7. Attach spark plug lead and install mufer cover.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to specica-
tions.
A
B
