12
SRM-4300

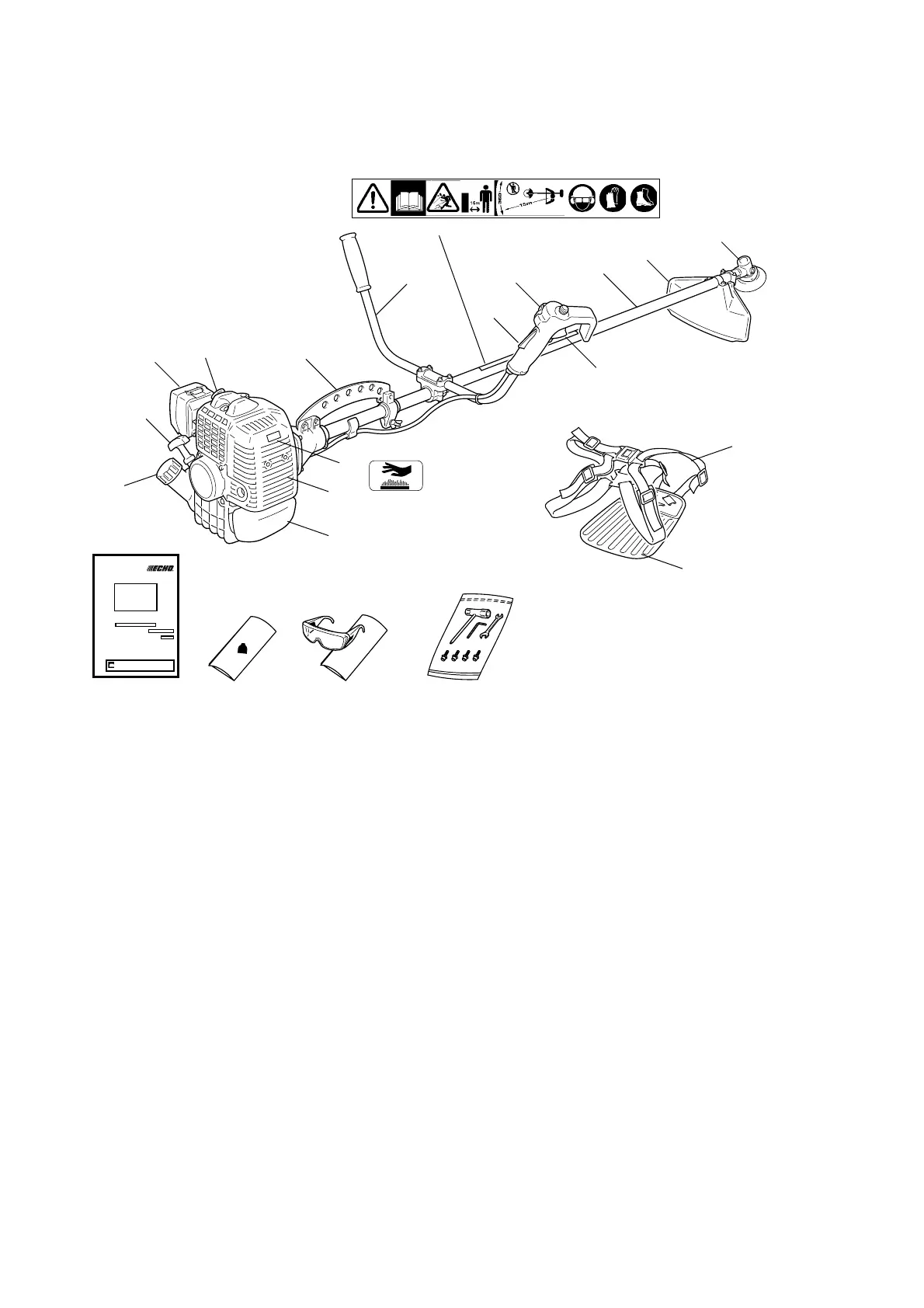

Description
1. Angle transmission - Having two gears to change
the angle of rotating axis.
2. Shield - Device to protect the operator from
accidental contact with the cutting head and thrown
objects.
3. Shaft tube - Part of the unit that provides a casing
for power transmission shaft.
4. Throttle trigger - Activated by the operator’s fi nger
for controlling the engine speed.
5. Ignition switch - “Turn Switch” mounted on top of
the Throttle Trigger Housing, turn switch
anticlockwise to RUN, clockwise to STOP position.
6. Throttle trigger lockout - Locks throttle trigger in
the idling position until you have a proper grip with
your right hand around the handle.
7. Safety decal - Part Number P022-007070
8. U-handle - Having the confi guration of a bicycle
handle bar.
9. Suspension point - Device on which the harness
can be hooked.
10. Spark plug
11. Air cleaner cover - Covers air fi lter.
12. Starter handle - Pull handle to start the engine.
13. Fuel tank cap - For closing the fuel tank.
14. Fuel tank - Contains fuel and fuel fi lter.
15. Silencer cover - Cover the silencer not to make
operator touch to hot surface of silencer.
16. Safety decal - Part Number X505-002310
17. Shouler harness - An adjustable straps to suspend
unit.
18. Hip pad - To protect hip / leg and clothing.
19. Operator’s Manual - Included with unit.
Read before operation and keep for future reference
to learn proper, safe operating techniques.
20. Throttle cable cap
21. Safety goggles
22. Tools - 17 x 19 mm T-wrench (combination
screwdriver / spark plug socket), 8 x 10 mm spanner,
4 mm hexagonal wrench and four bolts (M5 x 20).
19
20 21 22
1
2
3
4
5
6
7
8
910
11
12
13
14
15
16
17
18
P022-007070
X505-002310
