Echo SRM-4300 - Cleaning Silencer; Angle Transmission; Lubricating Shaft Tube (SRM-4300 R)

20
SRM-4300

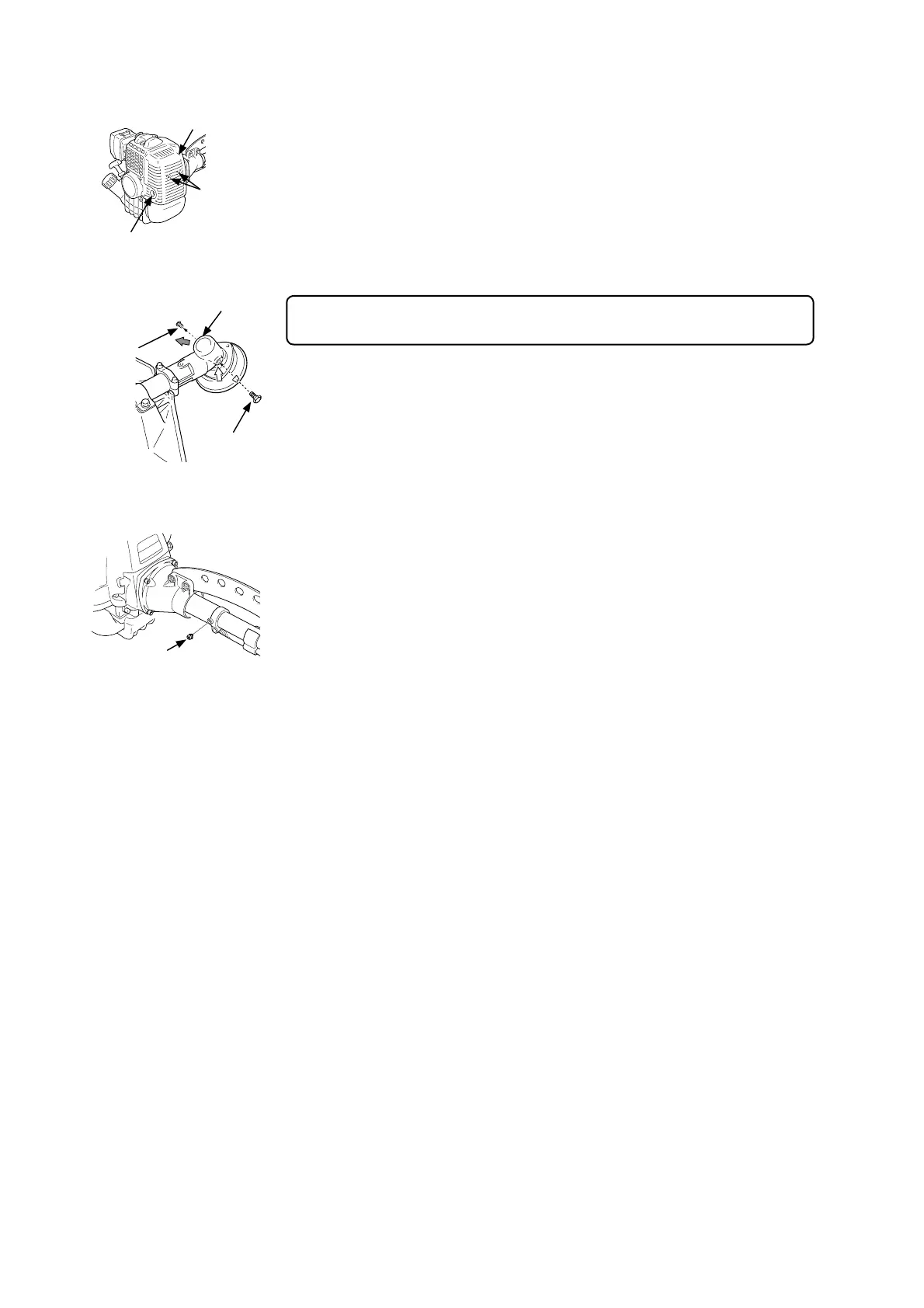

Two bolts
Silencer cover
Silencer
Cleaning silencer
• Clean deposits from silencer and tighten two bolts.
Angle transmission
NOTE
Use good quality lithium multi grease.
• Remove the plug and drain screw from the angle transmission.
• Add grease into the transmission until old grease is pushed out.
If necessary, use a low pressure pump.
• Reinstall the drain screw and plug.
Lubricating shaft tube (
SRM-4300R
)
• Remove screw from shaft tube housing.
• Add machine oil.
• Reinstall screw.
Plug (Bolt)
Angle transmission
Screw
Drain
screw
