SERVICE INFORMATIONSRM-5000
5
5K223 5K224
5K225 5K016 5K042
5K222
0
5
10
1
2
3
4
5
6
7
8
9
10
11
5K245
5K246

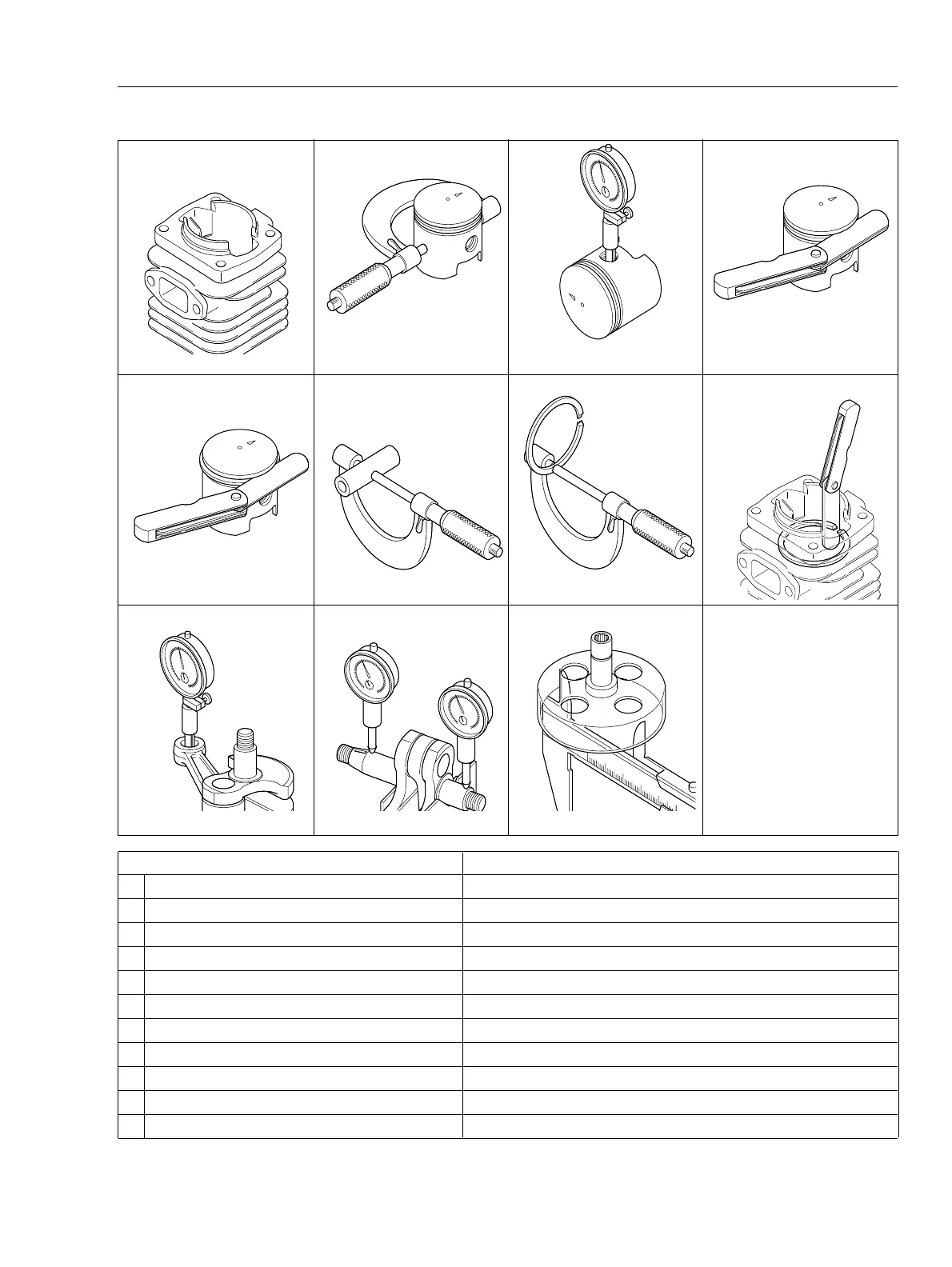

1-5 Service limits
ABCD
EFGH
KLM
Description mm (in)
A Cylinder bore When plating is worn and aluminium can be seen
B Piston outer diameter Min. 43.88 (1.728)
C Piston pin bore Max. 10.115 (0.3982)
D Piston ring groove Max. 1.6 (0.063)
E Piston ring side clearance Max. 0.1 (0.004)
F Piston pin outer diameter Min. 9.95 (0.392)
G Piston ring width Min. 1.45 (0.057)
H Piston ring end gap Max. 0.5 (0.02)
K Con-rod small end bore Max. 14.025 (0.552)
L Crankshaft runout Max. 0.05 (0.002)
M Clutch drum bore Max. 79.5 (3.13)
