Echo SRM-5000 Service Data

SERVICE INFORMATION SRM-5000
6
a
1.5
1.65
1.3
0.4
a
b
a
20
20
4
0
40
60
60
8
0
80
1
20
120
1
4
0
140
1
6
0
160
1
8
0
180
20
20
1
0
0
100
E
C
H
O

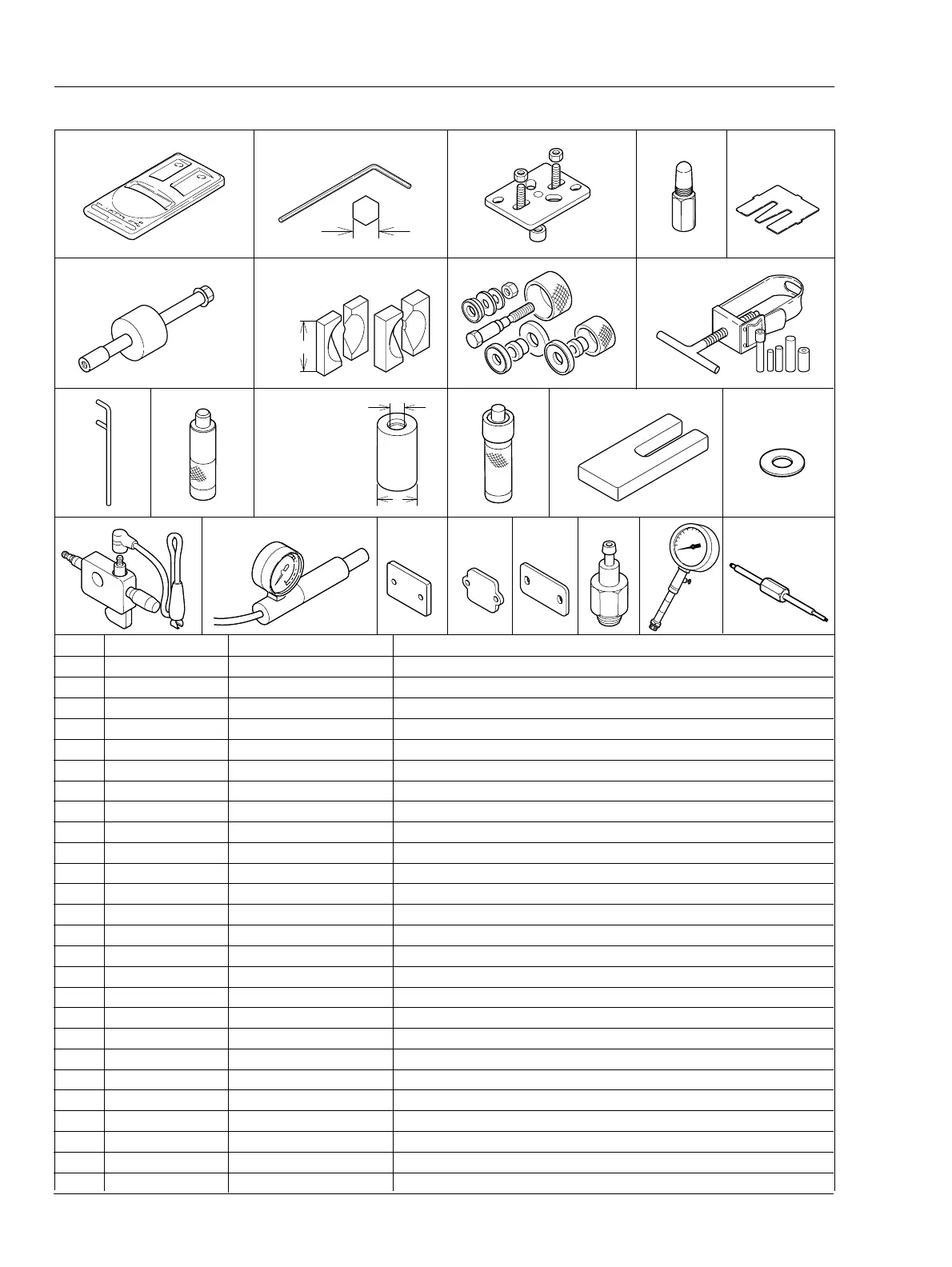

Key Part Number Description Used for:
1 897801-33330 Tachometer PET-1000 Measuring engine speed to adjust carburettor
2 895610-79920 L-hex wrench (4 mm) Removing and installing hex. socket bolt (M5)
3 895611-79920 L-hex wrench (5 mm) Removing and installing hex. socket bolt (M6)
4 897501-03938 Puller Removing flywheel
5 897537-30130 Piston stopper Locking crankshaft rotation
6 897563-19830 Metering lever gauge Measuring metering lever height on carburettor
7 897603-23030 PTO shaft puller Removing PTO shaft
8 897701-02830 Bearing wedge Removing ball bearing remaining on crankshaft
9 897701-06030 Bearing wedge Removing ball bearing on PTO shaft / drive gear
10 897701-14732 Bearing tool Removing and installing ball bearings on crankcase / clutch drum
11 897702-30131 Piston pin tool Removing and installing piston pin (Use 10mm dia. adapter)
12 897712-04630 2-pin wrench Removing and installing pawl carrier
13 897714-12330 Oil seal tool Installing crankcase oil seal (clutch side)
14 897714-24330 Oil seal tool Installing crankcase oil seal (starter side) / PTO shaft bearings
15 897726-21430 Oil seal tool Installing crankcase oil seal (clutch side)
16 897718-03930 Bearing tool Installing crankcase oil seal (starter side)
17 897719-02830 Piston holder Making piston steady to remove and install piston / ring
18 363018-00310 Washer Installing crankcase oil seal (starter side)
19 897800-79931 Spark tester Checking ignition system
20 897803-30132 Pressure tester Testing fuel pipes/tank and crankcase leakages
21 897826-16131 Pressure plug Plugging intake port to test crankcase / cylinder sealing
22 897827-16131 Pressure plate Plugging intake port to test crankcase / cylinder sealing
23 897831-16131 Pressure plug Plugging exhaust port to test crankcase / cylinder sealing
24 897835-16131 Pressure connector Testing crankcase and cylinder leakages
25 91007 Compression guage Measuring cylinder compression
26 91020 Limiter plug tool Removing and installing limiter plug
1-6 Special tools
1
7
19
8:
a = 80 mm
9: a = 70 mm
20
4
10
21 23
12
5
11
17
2: a = 4 mm
3: a = 5 mm
22
6
16
24
14: a = 12 mm
b = 32 mm
15:a = 15 mm
b = 24.5mm
18
25
13
26
