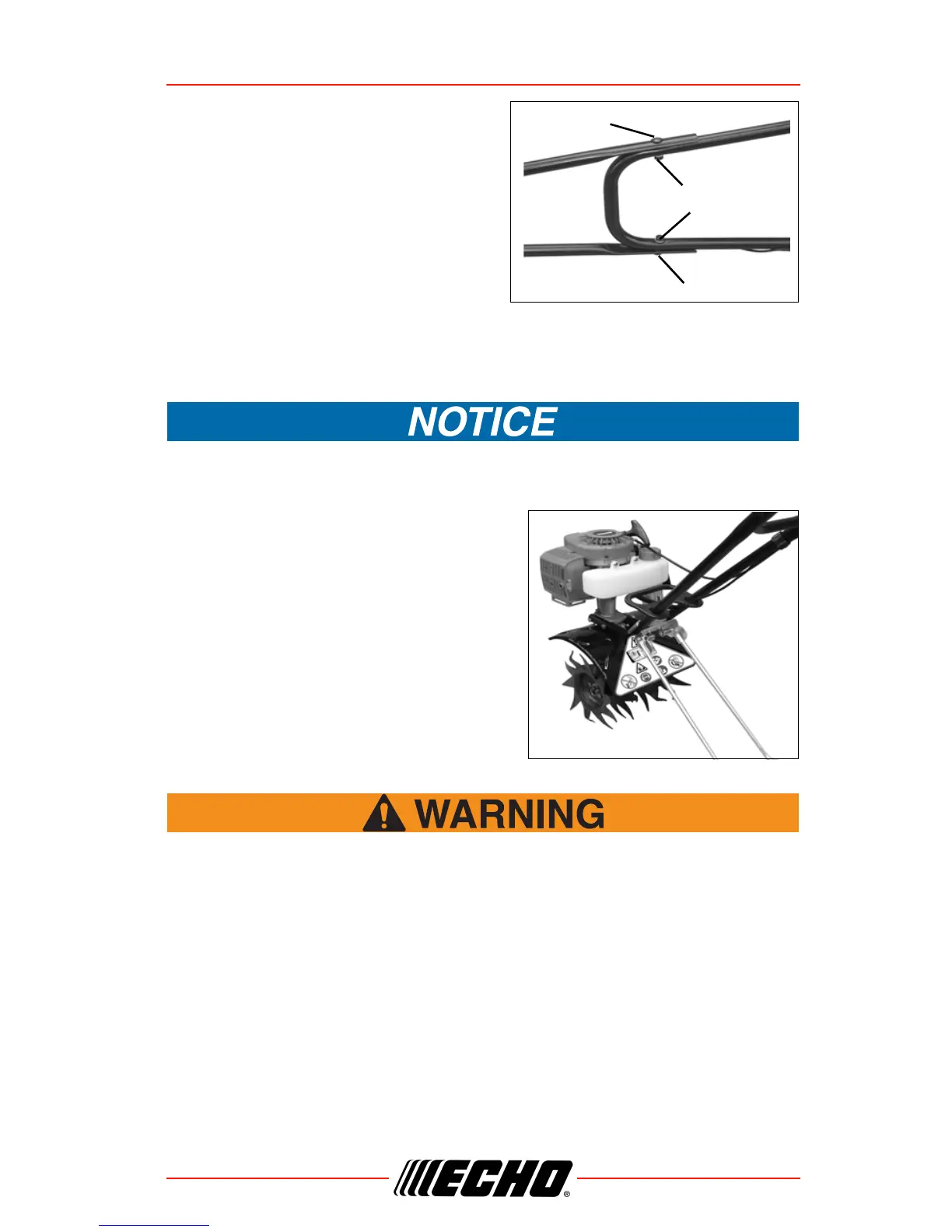

TC-210 ASSEMBLY
6. Remove carriage bolts (F),
lockwashers (G), and nuts (H) from
top handle assembly.
7. Place top handle assembly between
lower handles, align mounting holes
and attach using carriage bolts (F),
lockwashers (G), and nuts (H).
Carriage bolts must be installed from
the outside through square holes in
the lower handle, then through upper
handle tube.
8. Securely tighten lower handle bolts first, then the upper handle bolts.
Assure throttle cable is not twisted or wrapped around upper or lower
handle.
9. Stand unit up.
10. Secure throttle linkage and stop switch
lead midway on right upper and lower
handle with cable clips.
Never perform tilling or cultivating while kick stand is in down
position, otherwise serious injury may result.
