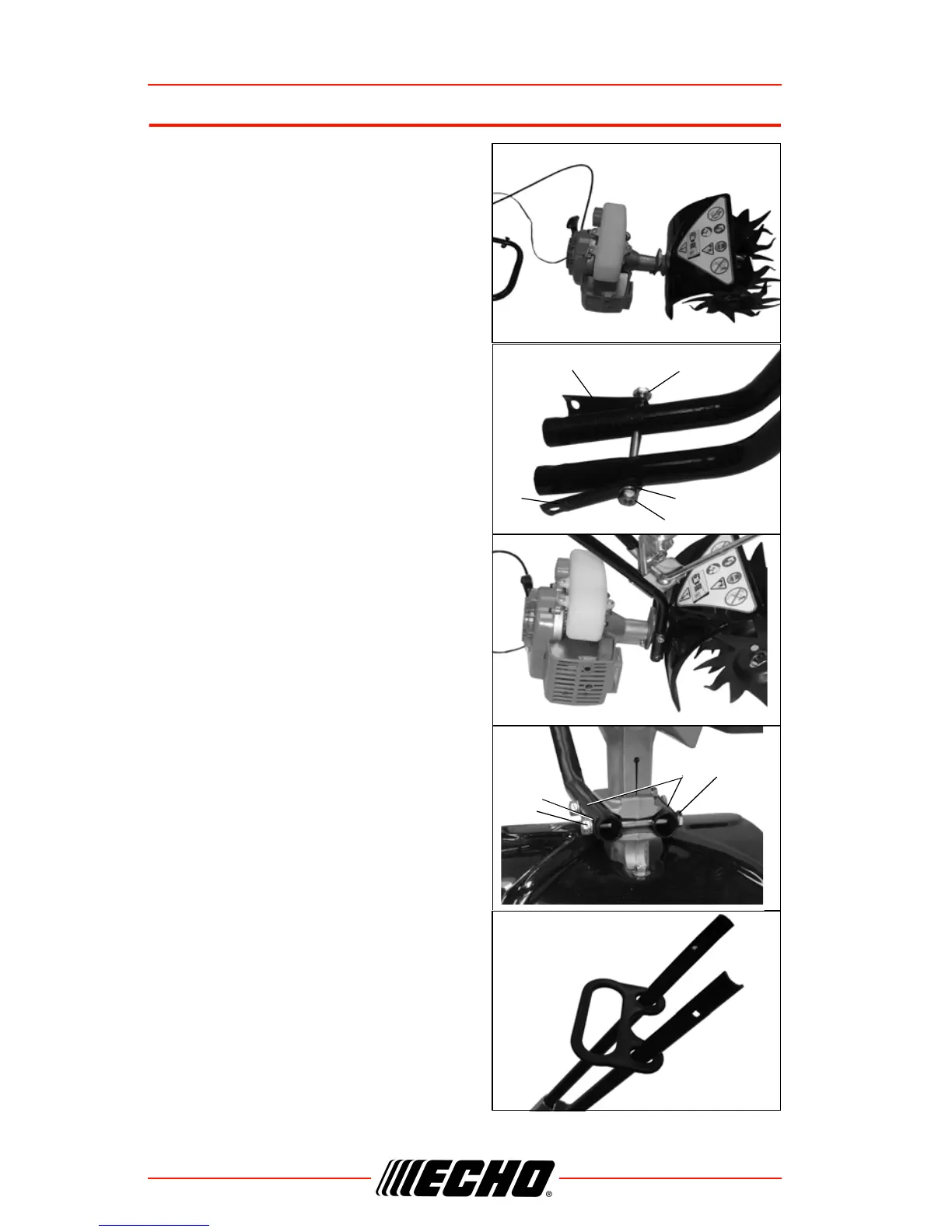

ASSEMBLY
1. Lay powerhead assembly down so
that shield label faces upward.
Place top handle assembly to front.
2. Loosely assemble lower handle/ kick
stand assembly using carriage bolt
(A), eye plates (B), lockwasher (C)
and locknut (D) in rear assembly
holes as shown.
3. Slide lower handle assembly under
power head and position in mounting
groove.
4. Assemble carriage bolt (A), eye
plates (B), lockwasher (C), and
locknut (D) in front handle mounting
holes. DO NOT TIGHTEN BOLTS.
5. Slide plastic carry handle onto lower
handle tubes.
A
B
B
C
D
A
B
C
D
