TC-210 MAINTENANCE

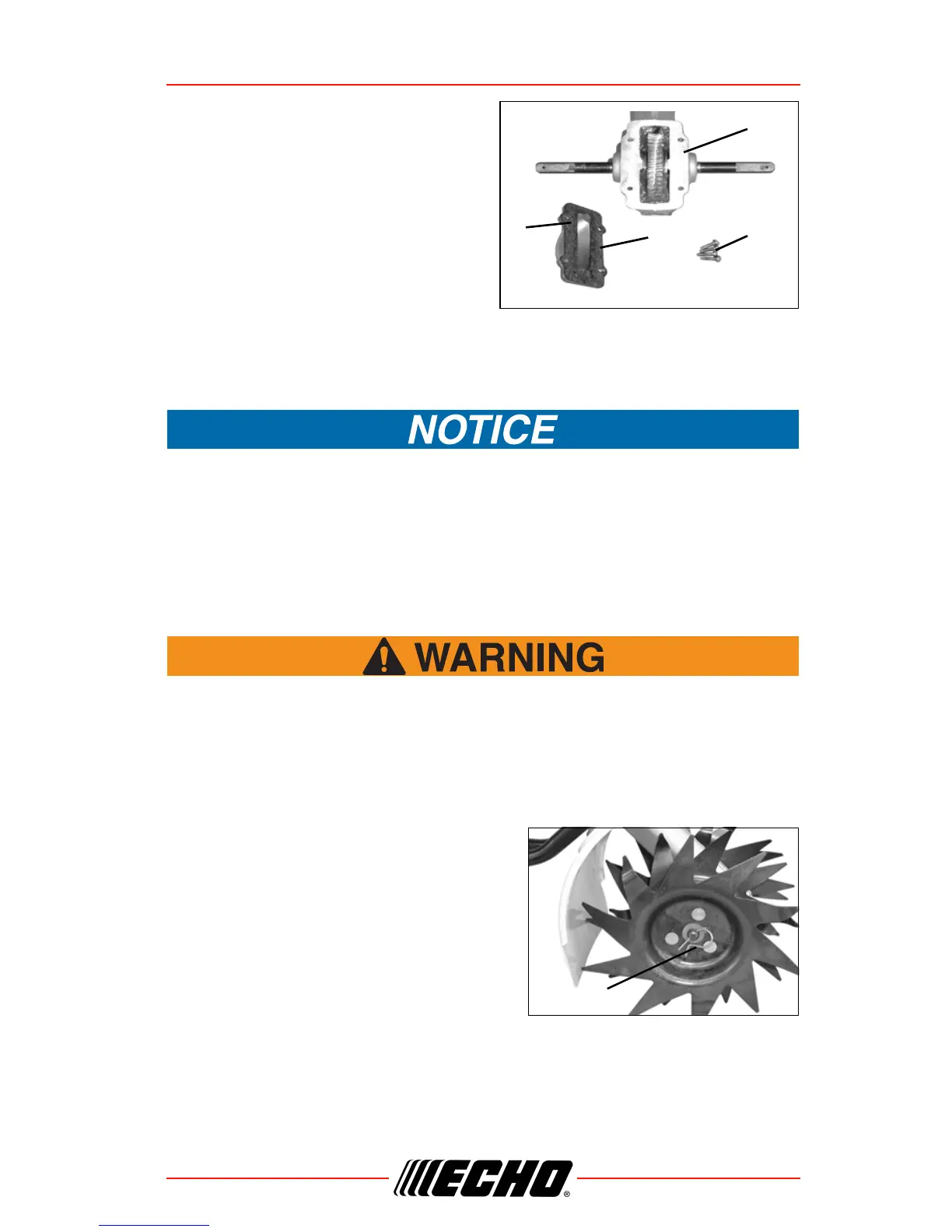

Gear Housing
1. Remove tines (See Tine Removal/
Cleaning - Installation below).
2. Remove gear case cover (A). Be
careful not to tear sealing gasket
(C).
3. Support tiller with exposed gear
case (D) upward. Add grease until
nearly level with top of gear case
(D).
Do not over fill. Too much grease will cause pressure and possible seal
failure.
Tine Removal/Cleaning - Installation
Note: Always wear gloves to protect hands from sharp blades.
Stop engine and disconnect spark plug wire before removing or
installing tines. Contact with revolving tines will cause severe
injury.
1. Remove retaining pin (E) and slide tine from shaft.
2. Remove weeds, etc. from tines and wash dirt from unit.
3. Clean accumulated dirt and debris form
gear housing and tine shaft.
4. Select "Tilling" or "Cultivating" position,
and install tines facing forward (tilling)
or rearward (cultivating).
