Echo WP-1000 - Page 14

14 X7505120800
© 4/2015 ECHO Inc.
ASSEMBLY WP-1000

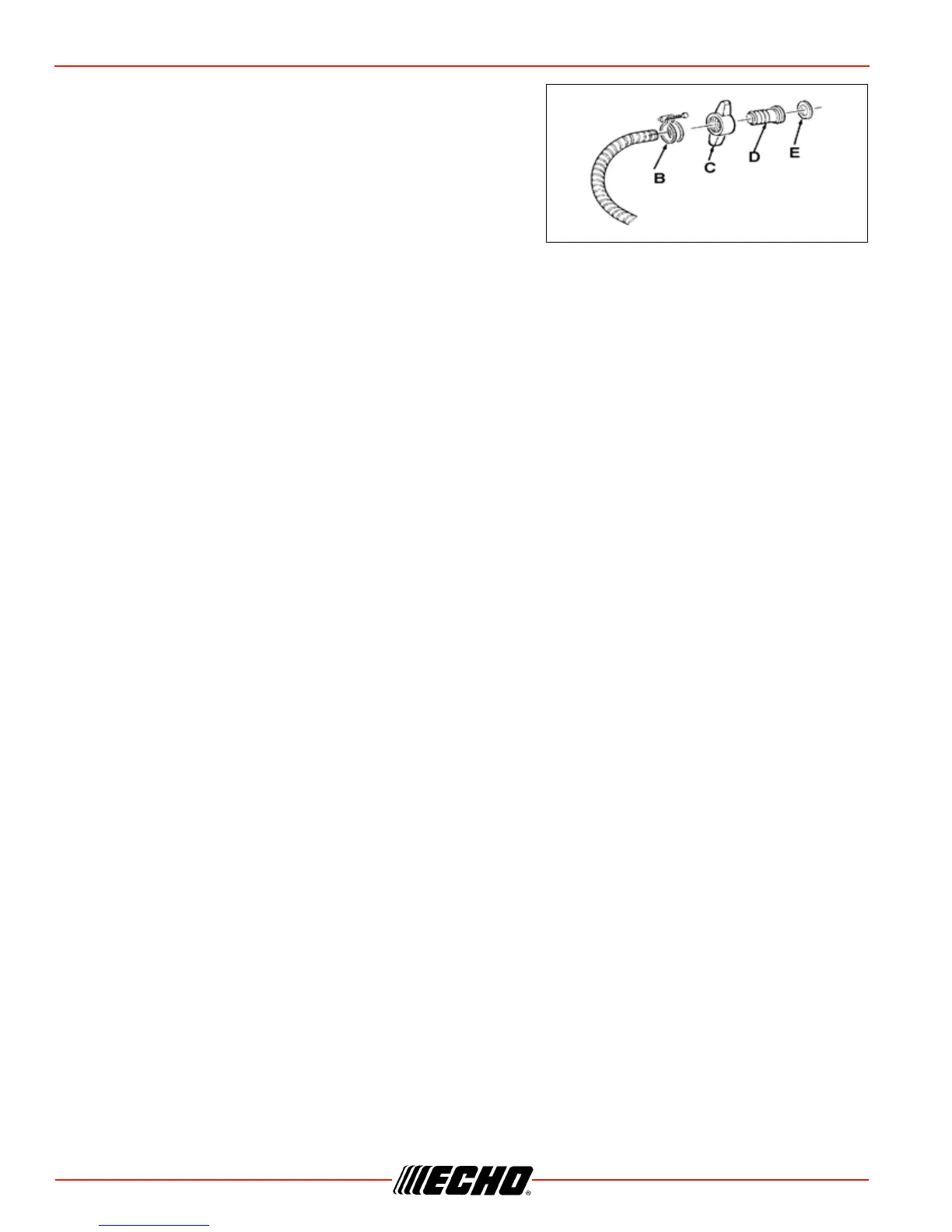

1. Assemble clamp (B), hose connecter (C), hose fitting (D)
and sealing washer (E) as shown for suction hose.
2. Attach hose onto discharge port. When 1 inch discharge
hose is used, 25 mm to 3/4 inch adaptor (H) is not required.
