MAINTENANCE WP-1000
3. Use brush to remove dirt from the cylinder fins.
4. Remove grass and leaves from the grid between the starter
and fuel tank.
5. When installing the cover, be certain the tab of the metal
deflector shield is in the slot of the cover.
6. Assemble components in reverse order.
Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove engine cover. See “Cleaning Cooling System” for
step by step instructions.
2. Place piston at Top Dead Center (TDC) to prevent
carbon/dirt from entering cylinder.

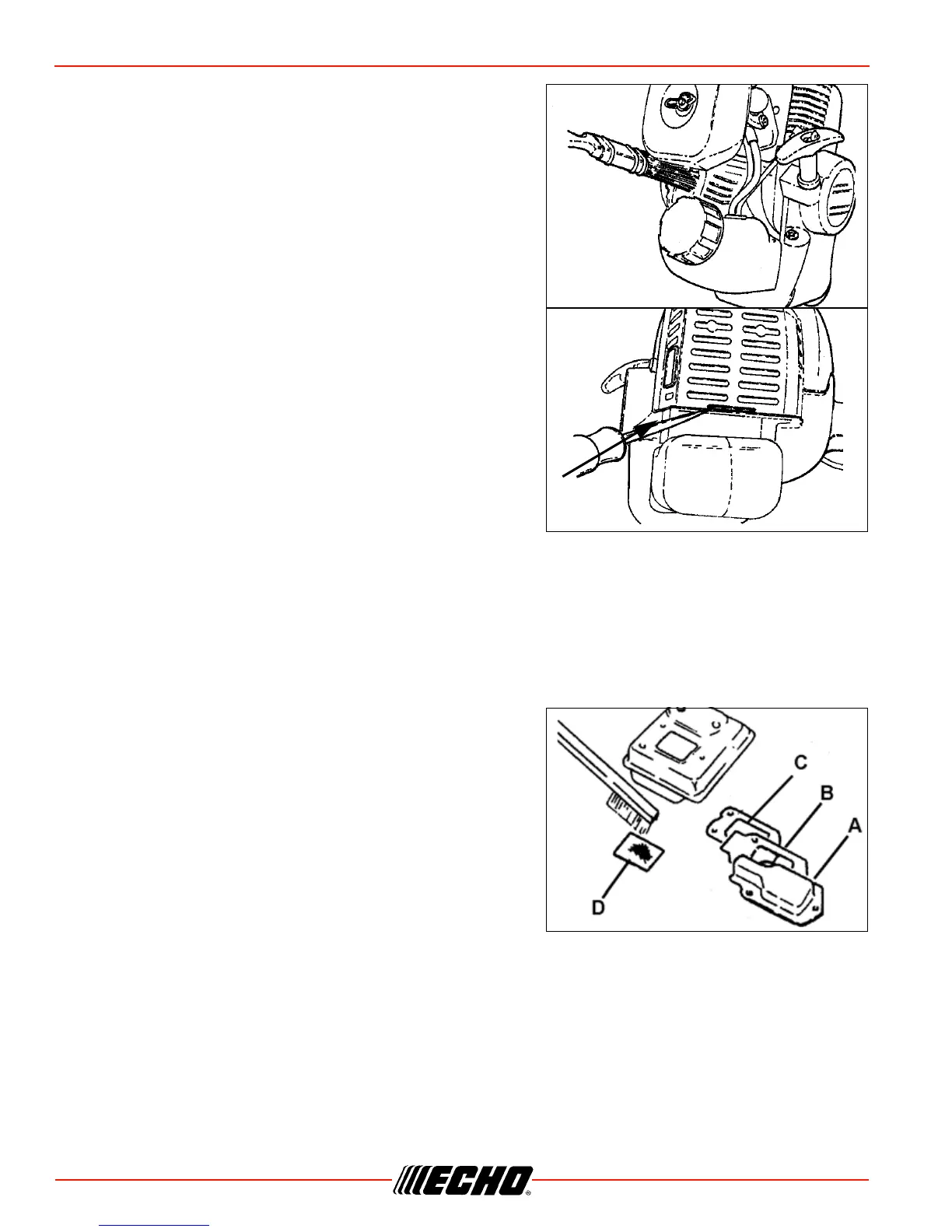

3. Remove screen cover (A), screen holder (B), gasket (C),
and spark arrestor screen (D) from muffler body.
4. Clean carbon deposits from screen (D) and muffler
components.
Note: When cleaning carbon deposit, be careful not to damage
the catalytic element inside muffler.
5. Replace screen if it is cracked, plugged, or has holes burned through.
6. Assemble components in reverse order.
Parts Required: Spark Arrestor Screen, Gasket
