FCTP-MB1903
Sprinter Tow Package
Step 2

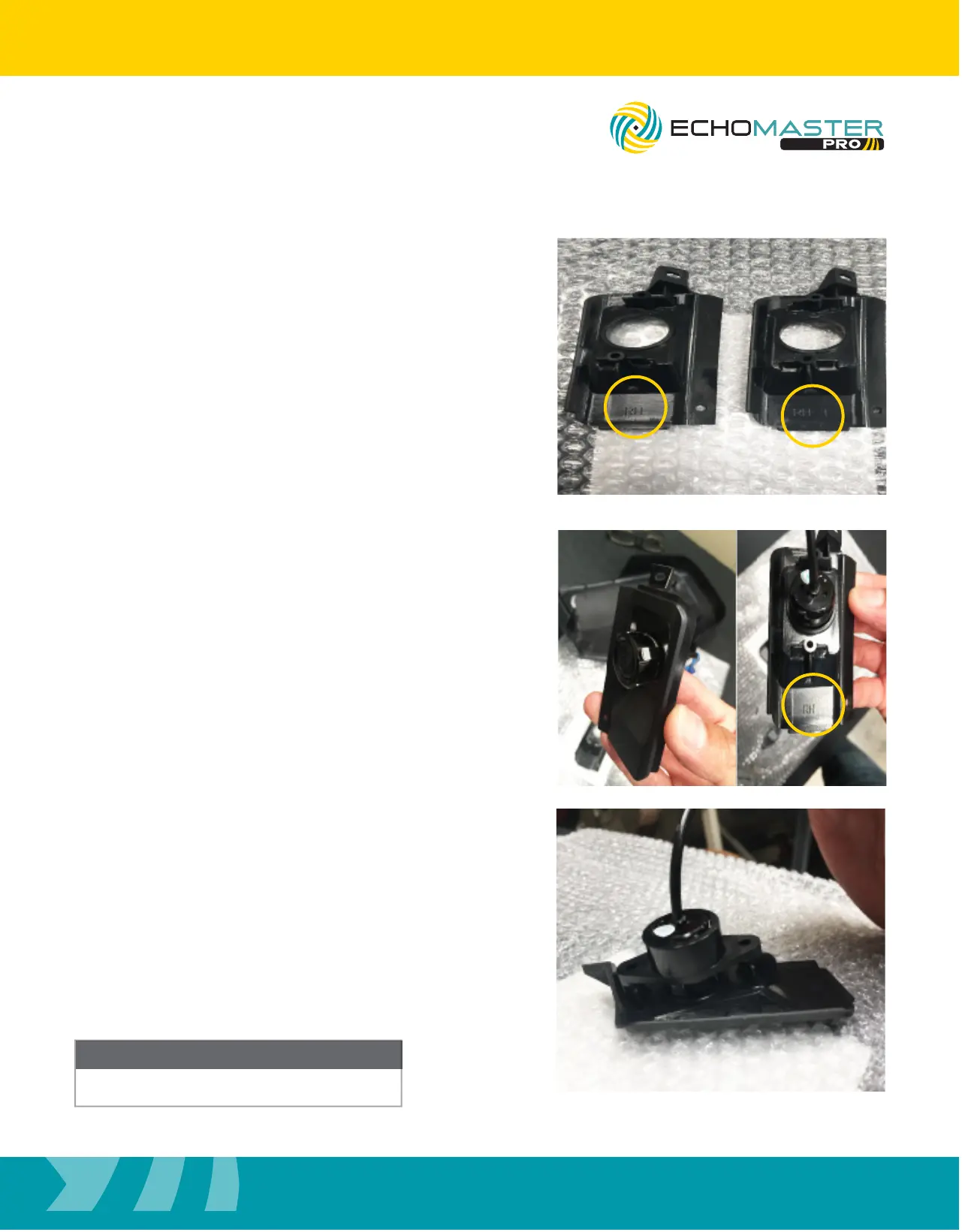

There are two sets of camera inserts per side.
RH Right hand side
RH-T Right hand side towing
LH Left hand side
LH-T Left hand side towing
The towing inserts are for the mirrors that extend out
farther from the vehicle.
Step 3
Select the inserts you are going to be installing.
There is a small notch on the camera; this notch needs to
be on the same side as the lettering on the insert.
Step 4
Once the camera is snapped into place, slide the locking
mount over the camera. There is a locking rib which needs
to be lined up with the notch on the camera. You can adjust
the camera using the locking mount by twisting the camera
so the screw holes line up. Once the holes line up, using a
No. 1 Phillips screwdriver install the supplied screws.
NOTE
DO NOT OVER TIGHTEN
Mirror Assembly (continued)
To Next Page
