Eclipse Veri-Flame Instruction Manual 818 -6/06
System Installation
Note:
Shut off the power supply before the Veri-Flame is removed or replaced from
the base.
Caution:
Installation and maintenance must conform with the National Electrical Code
and all other national and local codes and authorities having jurisdiction. Flame
monitoring systems must be installed by a qualied, licensed technician.
For purge and modulation models: Wire any switches and contacts in se-
ries to this terminal for proving air ow function and relating to the air failure
light. Power must not be immediately present at terminal 6 when power is rst
applied to terminals 1 or 7.
If this terminal is not used, place a jumper between the combustion blower
output (terminal 8) and the air switch input (terminal 6).

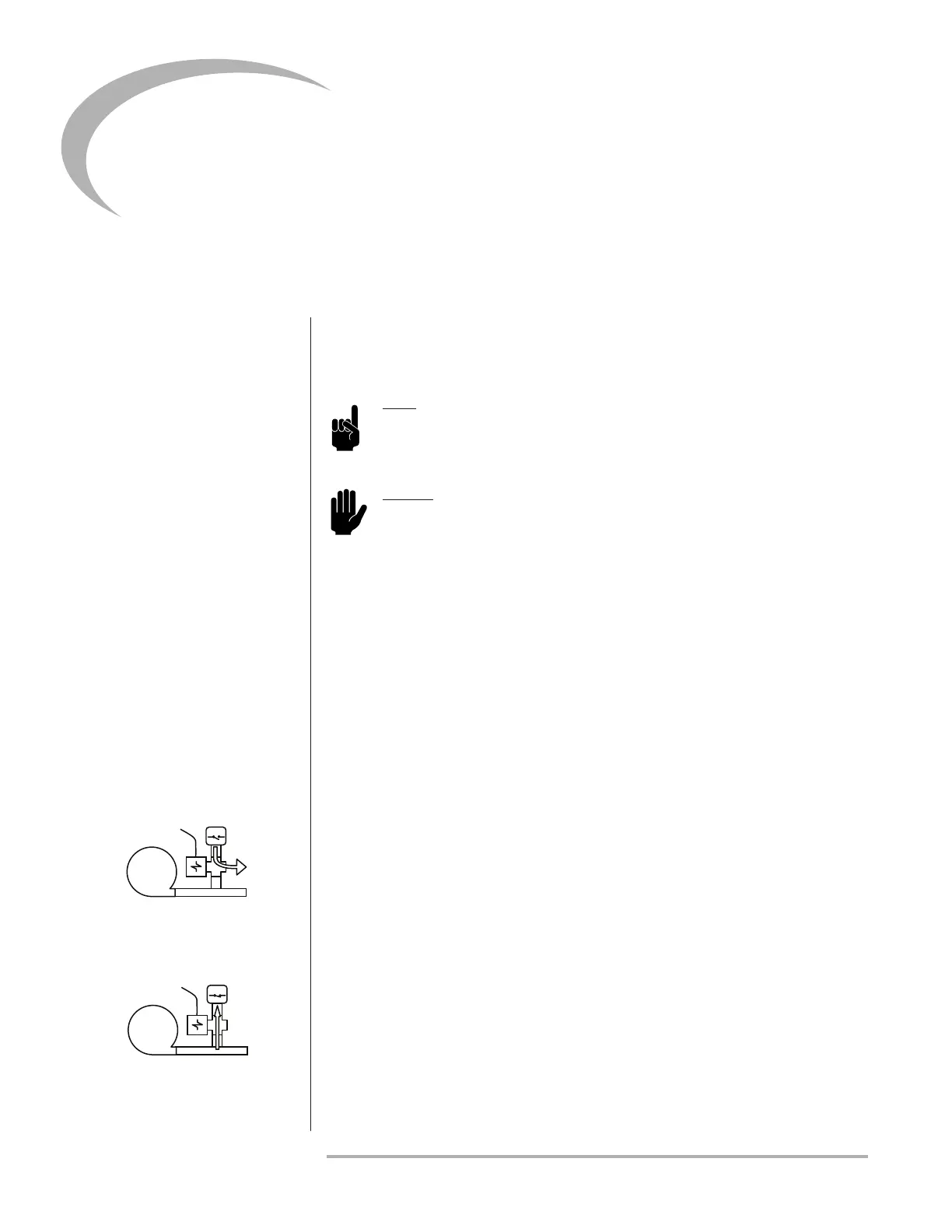

If the combustion air blower is controlled outside of the Veri-Flame system, then
a three way solenoid valve must be connected between the air switch port and
the blower sensing port. The valve de-energized state should vent the switch
to ambient pressure. The energized state then connects the air switch to the
blower sensing port. Power the valve from the blower ouput terminal 8. If ac-
cepted by local codes, the air switch could be wired between the combustion
blower output and the air switch input. Connecting the air switch in this manner
will satisfy the open contact (air short) check on the switch.
introDuCtion
Interlocks and
Limit Switch Input
Combustion Air
Switch Input
5
Wire external interlock, control, and limit switches in series to this input. Guard
against induced voltage levels to wiring connected to this input. In some extreme
wiring runs, reduction of induced voltages may require a load (relay or light)
connected to terminal 7 to avoid system error lockouts. This input is the power
source for the valve and ignition output terminals. Be sure all switches wired to
this input can handle the current required by the total of all loads connected to
terminals 3, 4, and 5.
In this section, the necessary procedures are detailed to integrate a Veri-Flame
into a burner system; Figures 5.1 and 5.2 illustrate the various terminal strips
mentioned.
FAN
3-Way Solenoid Valve
De-energized
To Fan Output
Terminal
Air
Switch
Open
To
Burner
FAN
3-Way Solenoid Valve
Energized
To Fan Output
Terminal
Air
Switch
Closed
To
Burne
r
