Eclipse Veri-Flame Instruction Manual 818 -6/06
The Eclipse Combustion Veri-Flame Single Burner Monitoring System controls
the start-up sequence and monitors the ame of single gas, oil, or combination
gas/oil burners. There are three different models to the Veri-Flame line: the no
purge, the purge and the modulation models. Each model features eld select-
able trial for ignition (TFI). Each model is also available for use with four types of
ame sensor: ultraviolet (UV), self-check UV, solid state UV/IR and ame rod.
Required components are the Veri-Flame, matching wiring base and a ame
sensor. Optional components include a remote display and cable, tester, and
various scannner accessories.
The Veri-Flame No Purge and Purge models are available in three different
series—5602, 5603 and 5605. The 5602 Series is UL listed, CSA certied, FM
approved and GE GAP acceptable; the 5605 Series is UL listed, FM approved
and GE GAP acceptable. The 5603 Series is for 240VAC applications and is
FM approved. Please see instruction manual 818-2 for European CE marked
versions.
The Veri-Flame Modulation model is available in two different series: 5602
and 5603. Both series are capable of modulation (high and low re purging). The
5602 Series is UL listed, CSA certied, FM approved and GE GAP acceptable.
The 5603 Series is for 240VAC and is FM approved.

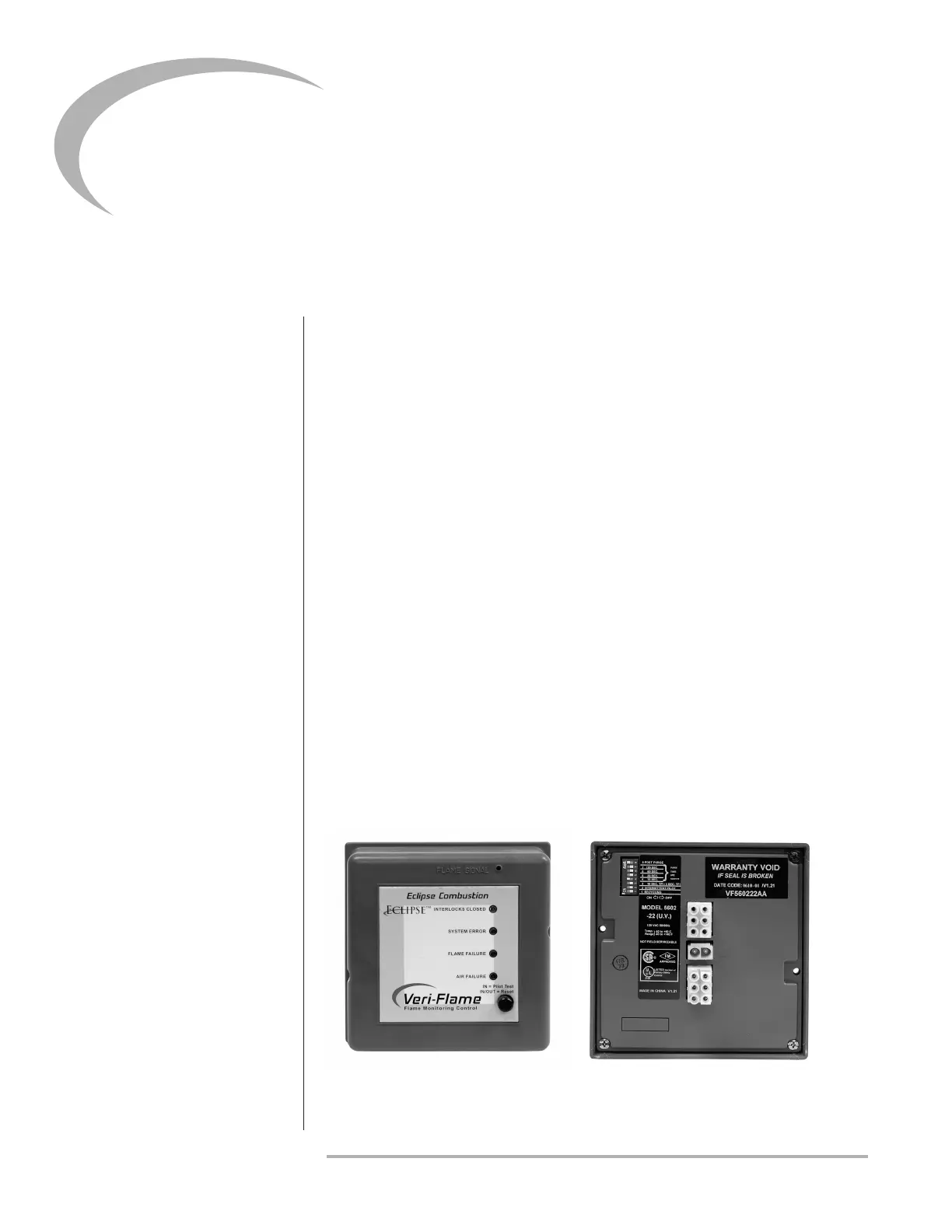

Figure 1 .1
Veri-Flame Single Burner Monitoring System
(Purge Unit Shown)
proDuCt
DesCription
Introduction
1
