Eclipse AVN2454 - Parking Brake Signal; Reverse Signal Cable

-
10
-
Foot-operated
Parking brake
Parking brake
Signal Cable
Hand-operated
Parking brake

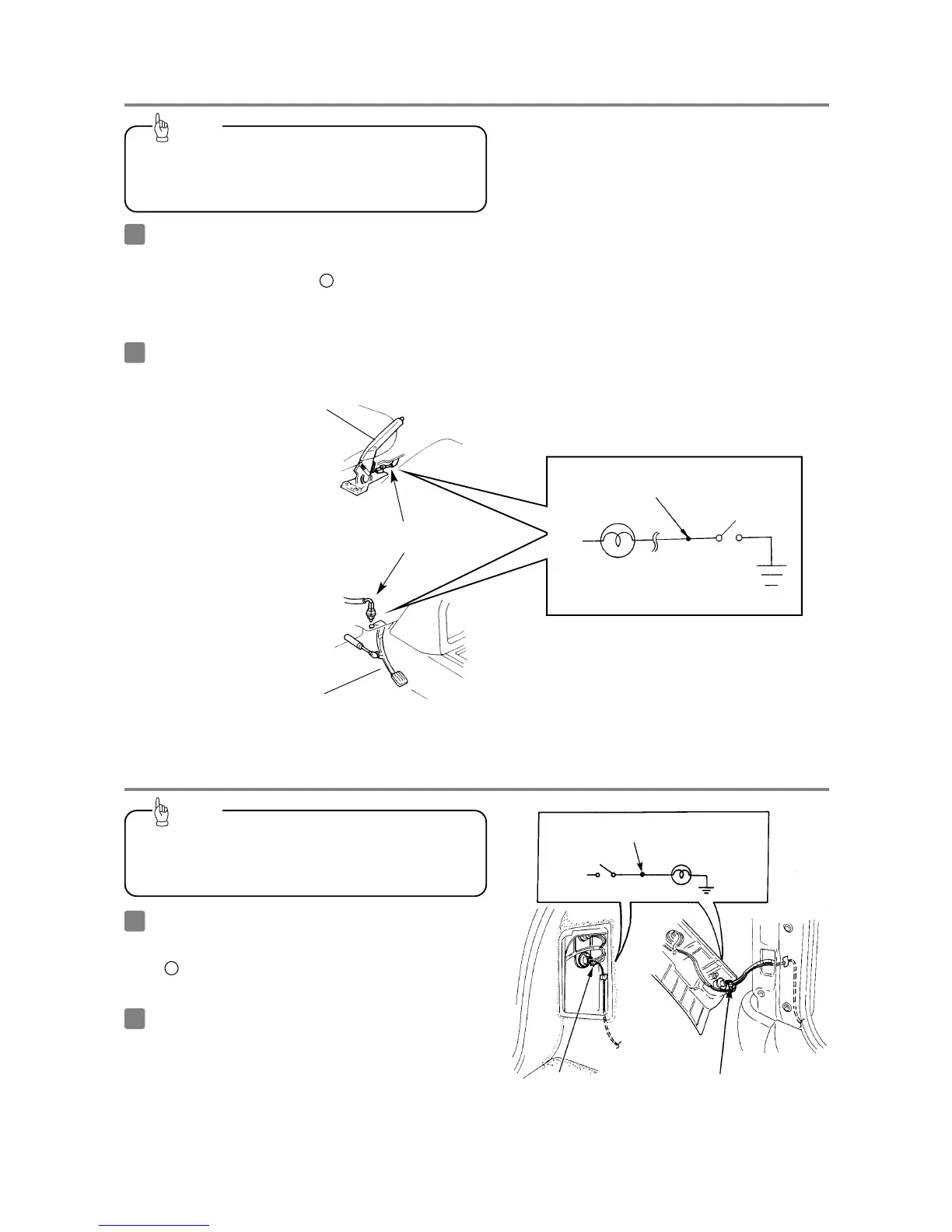

- An example for connecting the parking brake signal -
Use the splicing connector to connect the
parking brake signal connector (red/white) of the
interconnecting cable to the parking brake
signal cable.
4
1
Route the parking brake signal cable to the main
unit.
2
Position to attach
a splicing connector
Parking brake
signal cable
Always be sure to connect the parking brake signal
cable, otherwise the measurement precision will be
greatly reduced.
Tip
Position to attach
a splicing connector
Reverse signal cable
Reverse lamp
Reverse signal cable
- An example for connecting the reverse signal cable -
Use a splicing connector to connect the reverse
signal cable (green) of the interconnecting cable
to the reverse signal cable of the vehicle.
4
1
Route the reverse signal cable to the main unit .
2
Always be sure to connect the reverse signal cable,
otherwise the measurement precision will be greatly
reduced.
Tip
