Eclipse AVN2454 - Installation Diagram

-
5
-
Installation Diag
Installation Diag
r
r
am
am

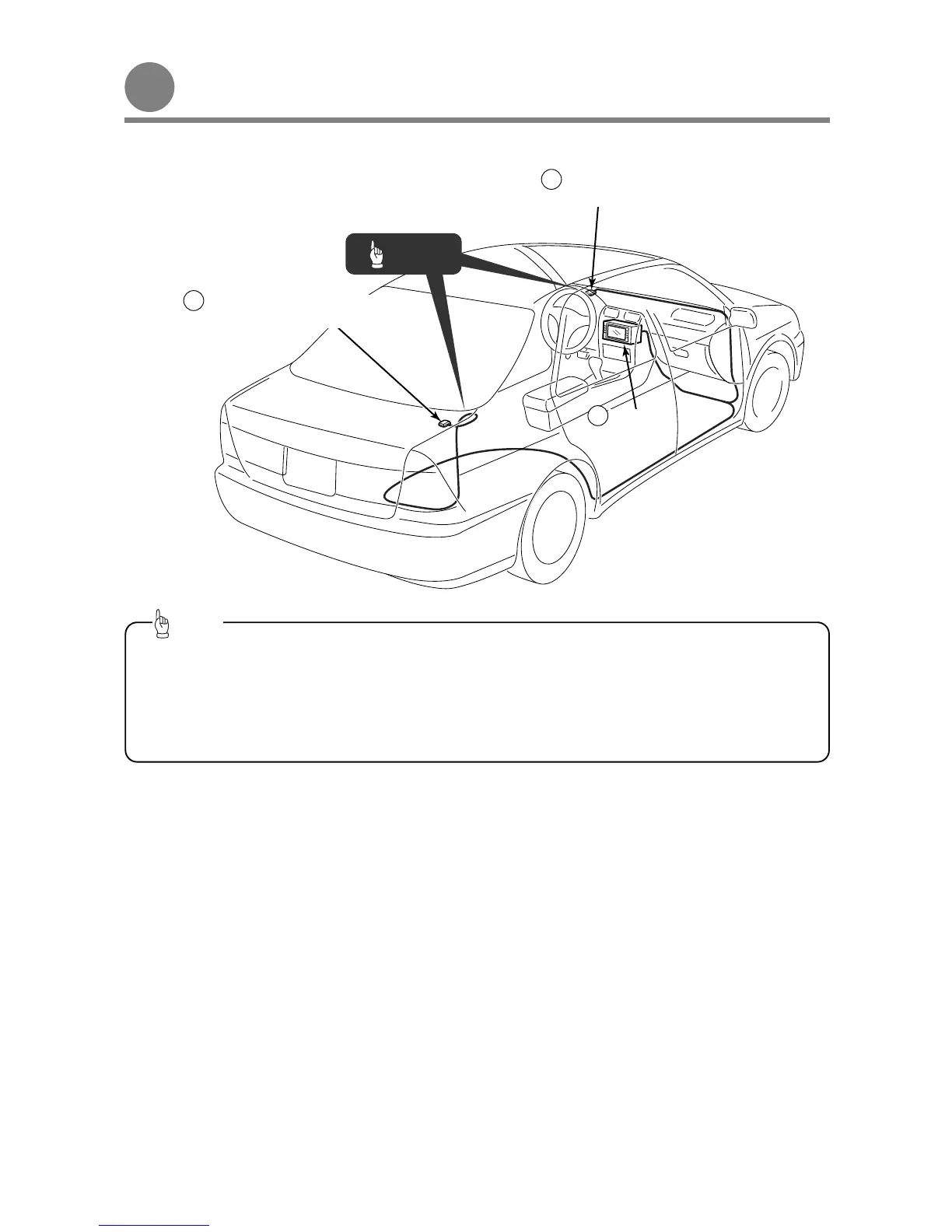

GPS antenna
(When installing inside the vehicle)
11
GPS antenna
(When installing outside the vehicle)
11
•
If installing the GPS antenna inside the vehicle, the location and the slope of the vehicle's windshield
will determine the accuracy of the GPS antenna to receive the GPS signal. If this occurs you may want
to install the antenna outside of the vehicle.
•
The materials used in front and rear vehicle windows can cause GPS reception sensitivity to drop
significantly. If this happens, install the GPS antenna to the outside of the vehicle.
Tip
Tip
Main unit
1
