Eclipse TFB, V2, Installation Guide 310, 11/14/2014

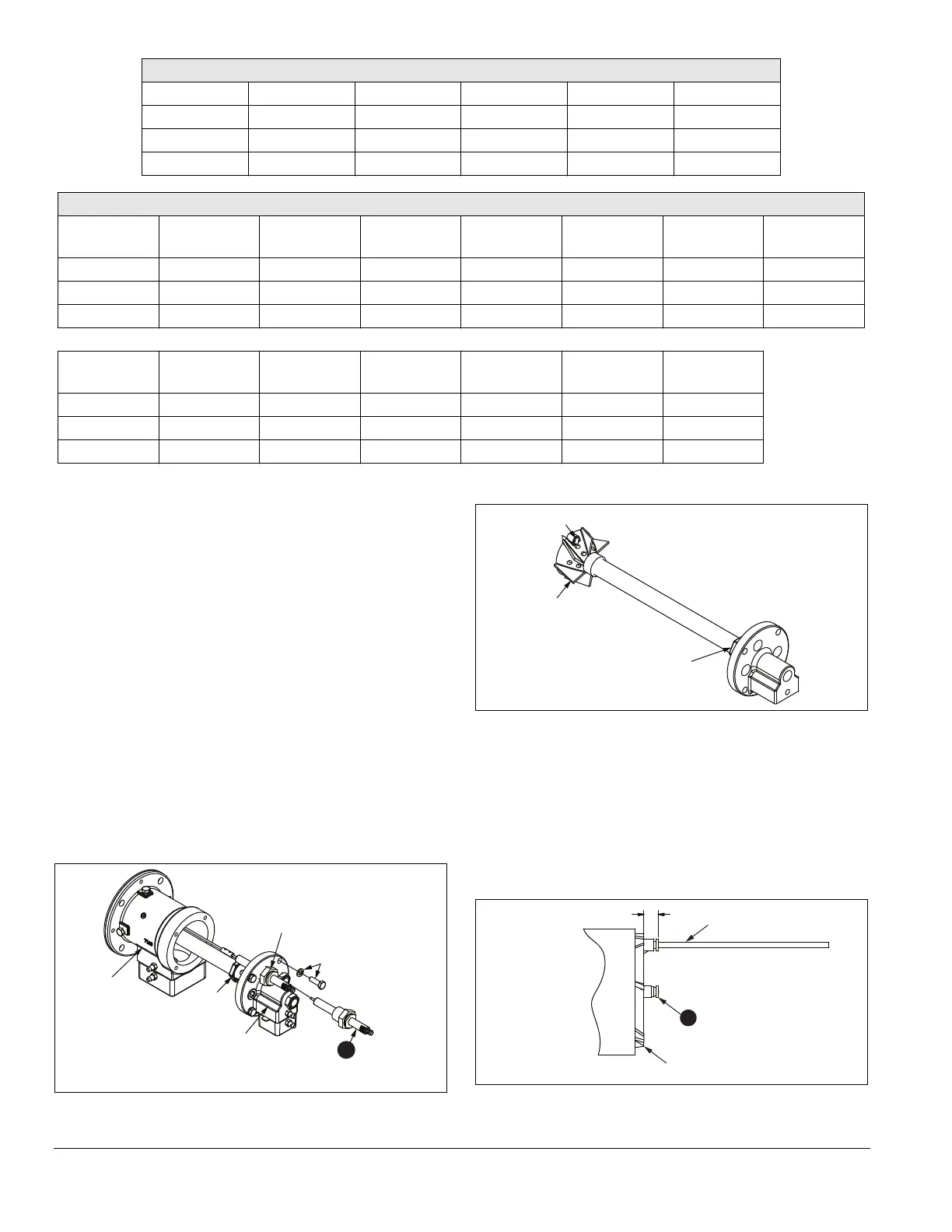

Adjust the Nozzle
NOTE: Place burner on a suitable working surface.
1. Remove the spark rod (3) or (3a) and flame rod (3) if
applicable.
2. Remove the four washers and bolts (1).
3. Pull the rear cover (2) far enough away from the
housing (4) to get access to the lock nut (5).
4. Loosen the lock nut (5).
5. Push the assembly back together.
6. Hold the rear cover (2) in position and screw the
nozzle in or out to adjust dimension A. See Figure 3.1.
7. Carefully pull the rear cover (2) and nozzle assembly
out of the housing (4).
Figure 3.2. Disassemble the Burner
Figure 3.3. Adjust the Nozzle
8. Turn the nozzle (6) over the shortest distance until the
opening (7) in the nozzle for the spark rod (3) aligns
with the appropriate opening in the rear cover (2).
9. Make sure that the nozzle (6) does not move and
tighten the lock nut (5).
10. Reinstall spark rod (3) or (3a) and flame rod (3) if
used.
Figure 3.4. Position the Spark Rod &
Flame Rod (if used)
Table 3.2 Dimension A Inches (mm) for TFB075
Fuel 301k-350k 351k-400k 401k-500k 501k-600k 601k-750k
Natural Gas 0.374 (9.5) 0.500 (12.7) 0.500 (12.7) 0.625 (15.9) 0.625 (15.9)
Propane 0.251 (6.4) 0.374 (9.5) 0.374 (9.5) 0.500 (12.7) 0.500 (12.7)
Butane 0.125 (3.2) 0.251 (6.4) 0.251 (6.4) 0.374 (9.5) 0.374 (9.5)
Table 3.3 Dimension A Inches (mm) for TFB200
Fuel 751k-800k 801k-900k 901k-1000k 1001k-
1100k
1101k-
1200k
1201k-
1300k
1301k-
1400k
Natural Gas 0.500 (12.7) 0.500 (12.7) 0.500 (12.7) 0.625 (15.9) 0.625 (15.9) 0.625 (15.9) 0.625 (15.9)
Propane 0.374 (9.5) 0.374 (9.5) 0.374 (9.5) 0.500 (12.7) 0.500 (12.7) 0.500 (12.7) 0.500 (12.7)
Butane 0.251 (6.4) 0.251 (6.4) 0.251 (6.4) 0.374 (9.5) 0.374 (9.5) 0.374 (9.5) 0.374 (9.5)
Fuel 1401k-
1500k
1501k-
1600k
1601k-
1700k
1701k-
1800k
1801k-
1900k
1901k-
2000k
Natural Gas 0.625 (15.9) 0.625 (15.9) 0.625 (15.9) 0.625 (15.9) 0.625 (15.9) 0.625 (15.9)
Propane 0.500 (12.7) 0.500 (12.7) 0.500 (12.7) 0.500 (12.7) 0.500 (12.7) 0.500 (12.7)
Butane 0.374 (9.5) 0.374 (9.5) 0.374 (9.5) 0.374 (9.5) 0.374 (9.5) 0.374 (9.5)
Spark rod location if
flame rod is used.
3a
5/8” (16 mm)
3a
Spark rod location if
flame rod is used
