Eclipse Winnox WX Series v1, Installation Guide No. 111, 8/26/05

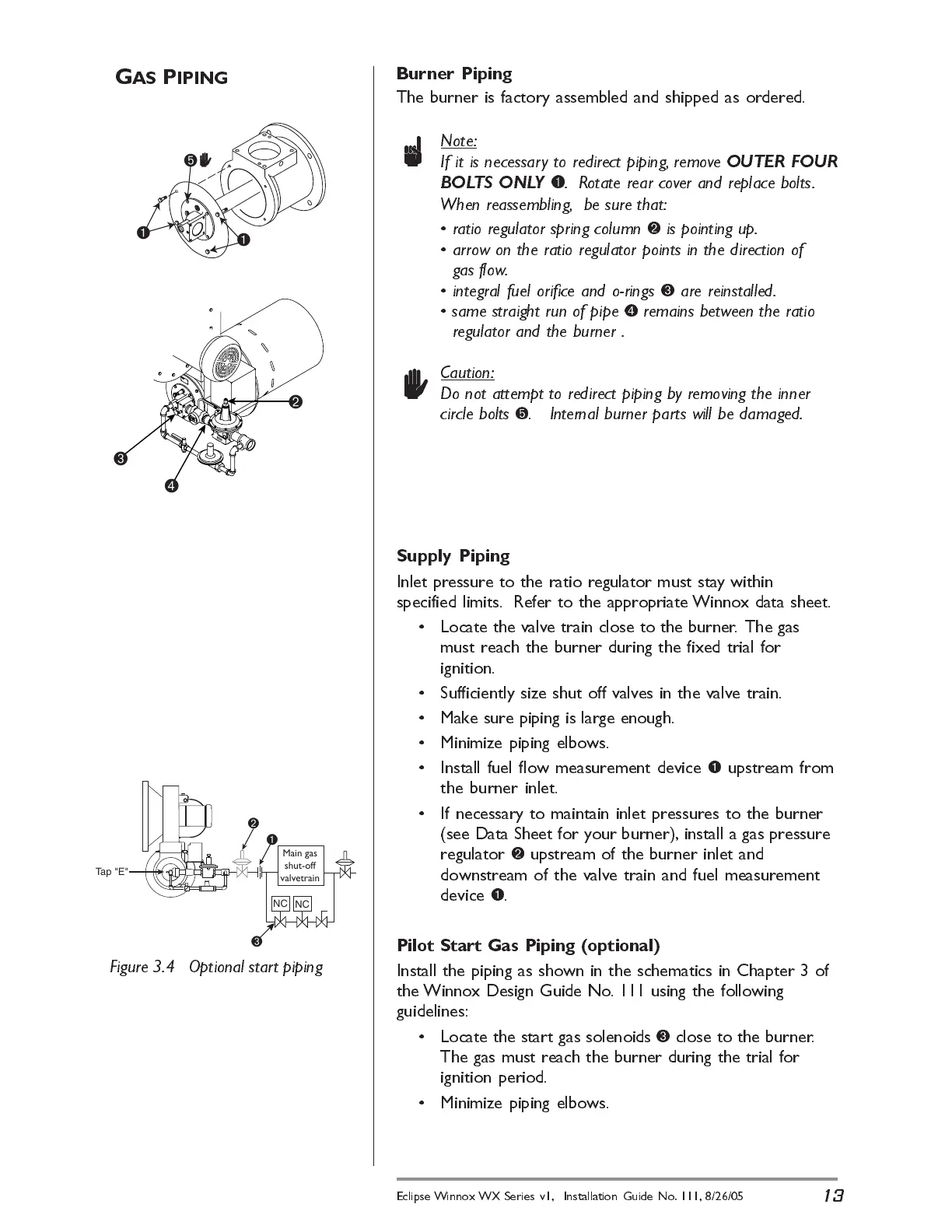

Figure 3.4 Optional start piping
G AS P IPING
1
5
1
c
2
3
4
Supply Piping
Inlet pressure to the ratio r egulator must stay within
specified limits. Refer to the appropriate Winnox data sheet.
 Locate the valve train close to the burner. The gas
must reach the burner during the fixed trial for
ignition.
 Sufficiently size shut off valves in the valve train.
 Make sure piping is large enough.
 Minimize piping elbows.
 Install fuel flow measurement device 1 upstream from
the burner inlet.
 If necessary to maintain inlet pressures to the burner
(see Data Sheet for your burner), install a gas pressure
regulator 2 upstream of the burner inlet and
downstream of the valve train and fuel measurement
device 1 .
Pilot Start Gas Piping (optional)
Install the piping as shown in the schematics in Chapter 3 of
the Winno x Design Guide No. 111 using the following
guidelines:
 Locate the start gas solenoids 3 close to the burner.
The gas must reach the burner during the trial for
ignition period.
 Minimize piping elbows.
Burner Piping
The burner is factory assembled and shipped as ordered.
n
Note:
If it is necessary to redirect piping, remove OUTER FOUR
BOLTS ONLY
1 . Rotate rear cover and replace bolts.
When reassembling, be sure that:
 ratio regulator spring column 2 is pointing up.
 arrow on the ratio regulator points in the direction of
gas flow.
 integral fuel orifice and o-rings 3 are reinstalled.
 same straight run of pipe 4 remains between the ratio
regulator and the burner .
c
Caution:
Do not attempt to redirect piping by removing the inner
circle bolts 5 . Internal burner parts will be damaged.
Tap "E"
1
2
Main gas
shut-off
valvetrain
NC
NC
3
