18

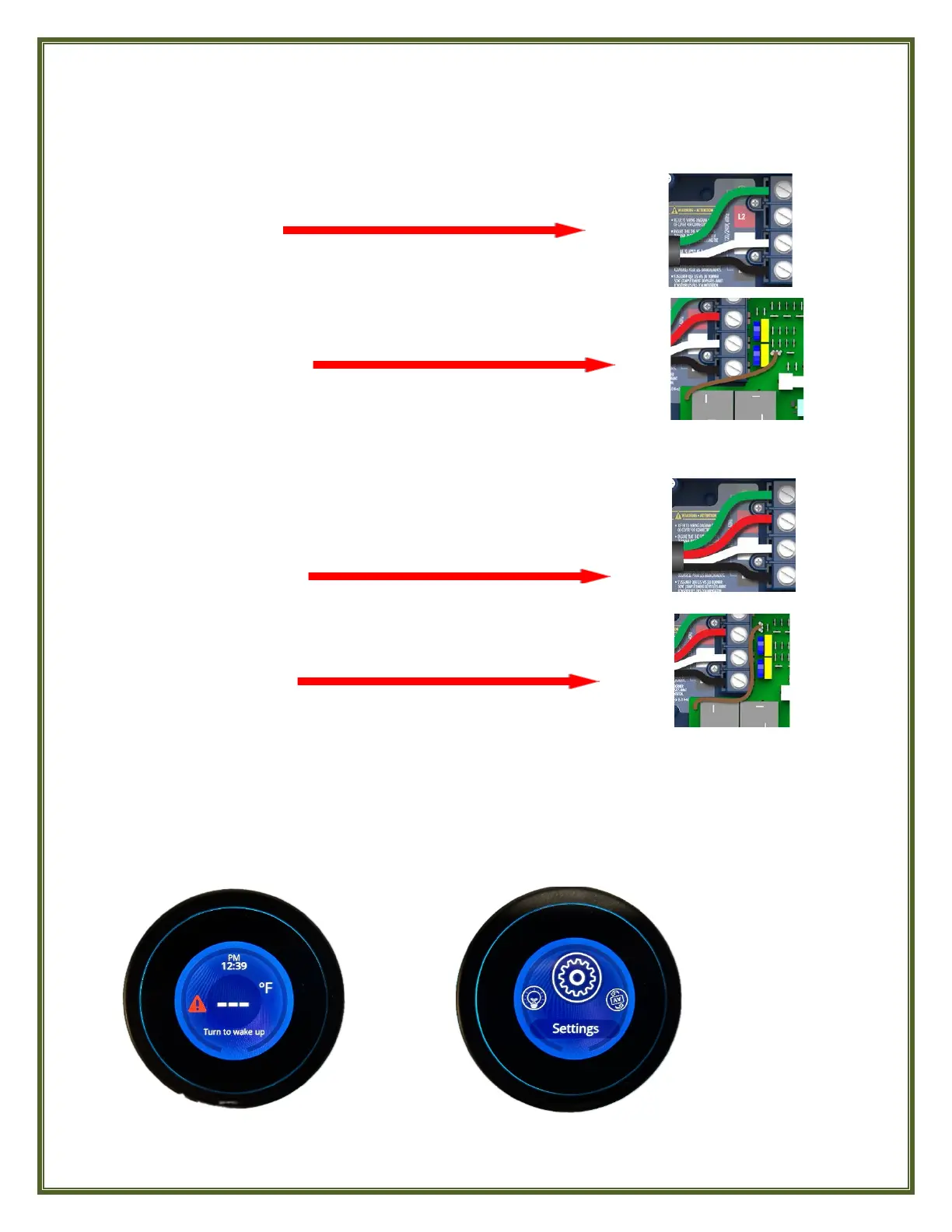

WIRING CONNECTIONS FOR 110 VOLT OPERATION
POWER CONNECTIONS
HEATER CONNECTION
WIRING CONNECTIONS FOR 220 VOLT OPERATION
POWER CONNECTIONS
HEATER CONNECTION
BREAKER SETTING
If your ECO SPA is wired for 110 Volt operation, the Control System
(‘Pack’) power terminal block 3 wiring connections should look like
this:
For the heater to operate at 1 kW on 110 Volts the brown jumper
wire’s yellow-jacketed spade lug is correctly and completely connected
from P5 to P44 like this:
DO NOT MOVE ANY OTHER WIRES ON THE CIRCUIT BOARD
Wired for 220 Volt operation, your ECO SPA’s Control System power
terminal block 4 wiring connections should look like this:
For the heater to operate at 4 kW on 220 Volts the brown jumper
wire’s yellow-jacketed spade lug is correctly and completely connected
from P5 to P17 like this
DO NOT MOVE ANY OTHER WIRES ON THE CIRCUIT BOARD
It’s important to specify the rating of the GFCI being used to ensure safe & efficient power
management by the Control System and avoid GFCI breaker tripping.
TO ACCESS BREAKER SETTINGS:
ACTIVATE the Topside Control and rotate the dial to SETTINGS
