pag.2
EN
420010749000 Azur 30/40/60/80 Blu 120 P
10 20 30 40 50 60 70 80
90
0
0,5
1
1,5
2
20 30 40 50 60 70 80 90 100
mbar
kcal/h
x1000
kW
AZUR 60
AZUR 80
100
110 120
2,5
3
BLU 120 P
AZUR 30
AZUR 40

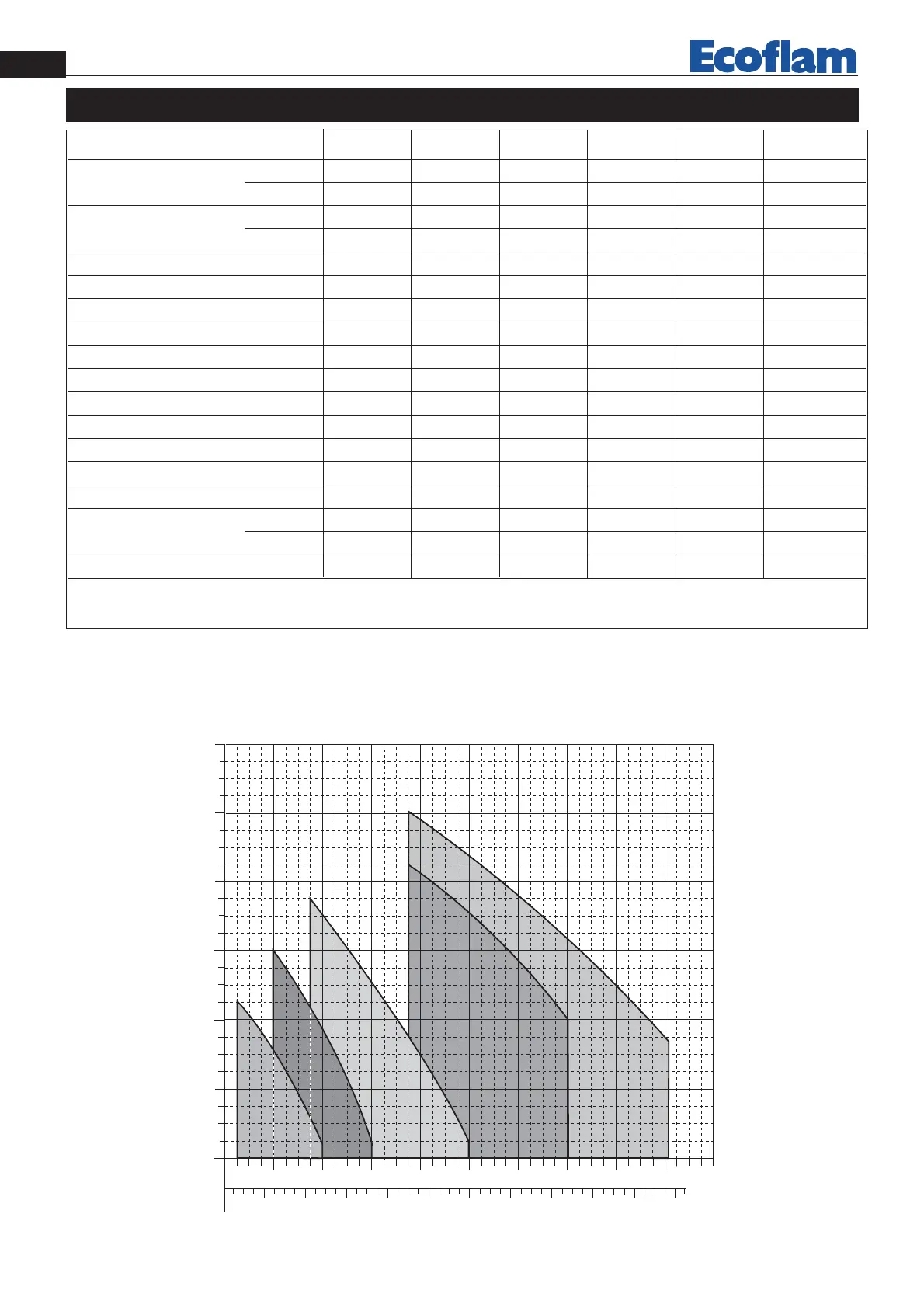

WORKING FIELDS
Pressure in the combustion chamber
Burner output
MODELS AZUR 30 AZUR 40 AZUR 60 AZUR 80 BLU 120 P BLU 120 P MB
Thermal power max. kcal/h 30.000 40.000 60.000 80.000 100.000 100.000
kW 34,9 46 69,8 93 116 116
Thermal power min. kcal/h 10.000 20.000 30.000 50.000 50.000 50.000
kW 12 23 35 58 58 58
Max. capacity G.N. Nm
3
/h 3,5 4,7 7 9,3 11,6 11,6
Min. capacity G.N. Nm
3
/h 1,2 2,3 3,5 5,8 5,8 5,8
Max. capacity L.P.G. Nm
3
/h 1,36 1,8 2,72 3,63 4,54 4,54
Min. capacity L.P.G. Nm
3
/h 0,45 0,9 1,36 2,27 2,27 2,27
Gas pressure G.N. mbar 20÷300 20÷300 20÷300 20÷300 20÷300 75÷300
Gas pressure L.P.G. mbar 50 50 50 50 50 50
Voltage single phase 50 Hz V 220 220 220 220 220 220
Motor W 50 50 50 50 75 75
Capacitor µF 2 2 2 2 3,5 3,5
Rpm N° 2800 2800 2800 2800 2800 2800
Transformer kV/mA 8/20 8/20 8/20 8/20 8/20 8/20
Control box Siemens LME 11 LME 11 LME 11 LME 11 LME 11 LME 11
Satronic DLG 976 DLG 976 DLG 976 DLG 976 DLG 976 DLG 976
Weight kg 10 12 12,5 13,5 14
Fuel : NATURAL GAS kcal/Nm
3
8.600
L.P.G . kcal/Nm
3
LCV 22.000
TECHNICAL DATA
