Ecoflam AZUR 40 - Overall Dimensions; Installation

pag.3
EN
420010749000 Azur 30/40/60/80 Blu 120 P









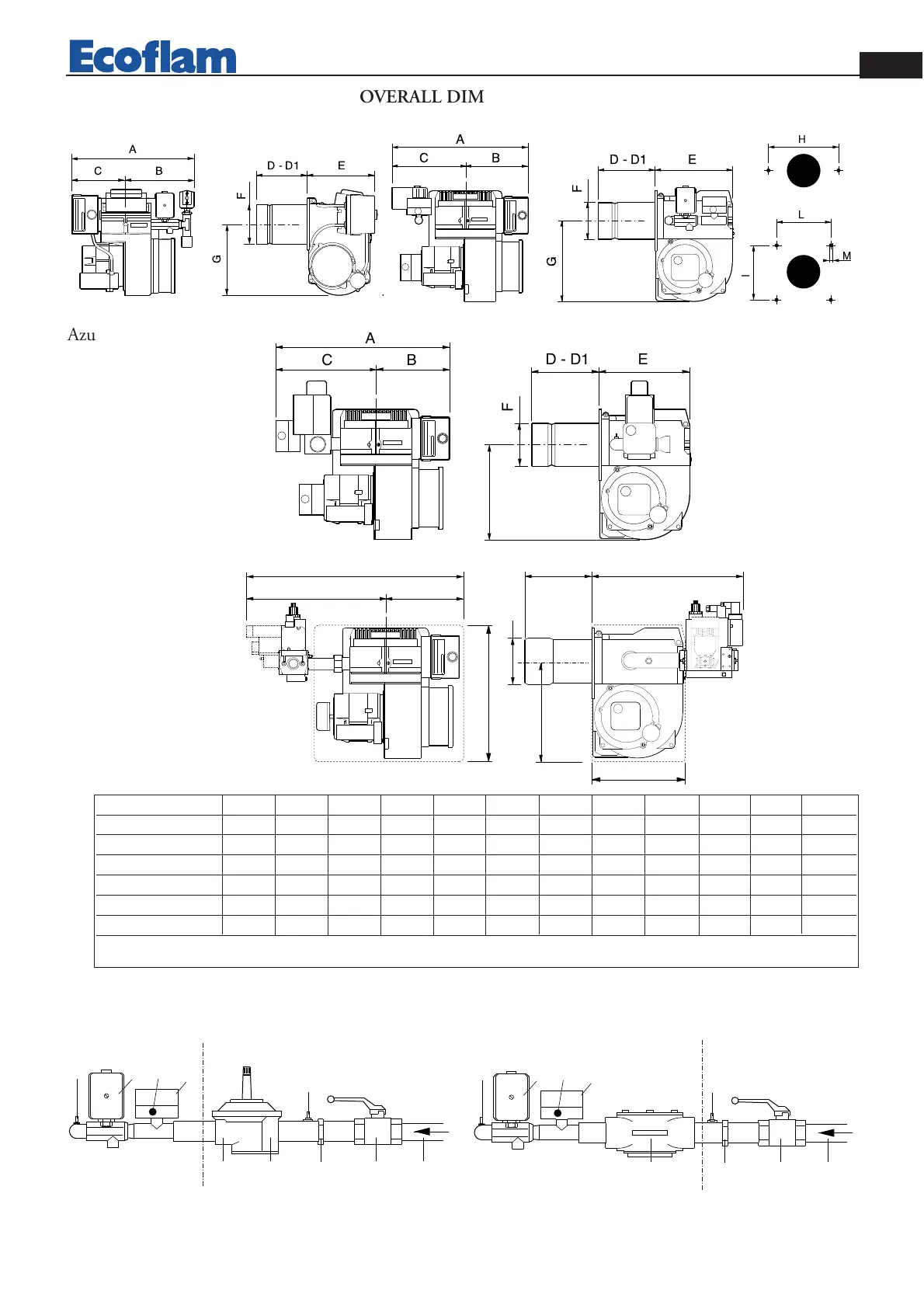

OVERALL DIMENSIONS
Azur 30
G
F
D-D1 E
C
A
B
H
M
L
I
Azur 40/60
G
F
D - D1 E
C
A
B
Azur 80
Blu 120 P
MODELS A B C D D1 E F G H I L M
AZUR 30 290 165 125 85 145 155 89 160 125 100 100 M8
AZUR 40 310 145 165 85 145 270 89 190 153 110 110 M8
AZUR 60 350 145 205 85 145 205 89 190 153 110 110 M8
AZUR 80 385 145 240 95 200 205 102 190 153 110 110 M8
BLU 120 P 385 145 240 95 200 205 102 190 153 110 110 M8
BLU 120 P MB 445 145 300 140 220* 260 108 190 153 110 110 M8
* Special Version D1 = 450
D= Short head D1= Long head
INSTALLATION
12
3
4
4
5
47
6
8
BURNER
GN 20÷100 mbar
12
3
4
4
5
47
6
BURNER
3 - Union
4 - Pressure gauge fixing point
1 - Main gas pipe
2 - Ball valve
LPG 50 mbar
5 - Gas filter
6 - Gas pressure switch
7 - Solenoid valve
8 - Gas governor
G
F
D - D1 E
C
A
B
220
280
BLU 120 P
MULTIBLOC
