Start up - Setting data table - Air regulation
The settings above are basic settings.
These adjustment values are normally
suitable for commissioning the burner.
These values have been determined in
our test labs and are useful for the first
switch-on as final setting must be done
using a combustion analyzer.
Favourable combustion values can be
achieved using the following nozzles:
DANFOSS H÷S 80°÷60°
DELAVAN W 60°
STEINEN S 60°

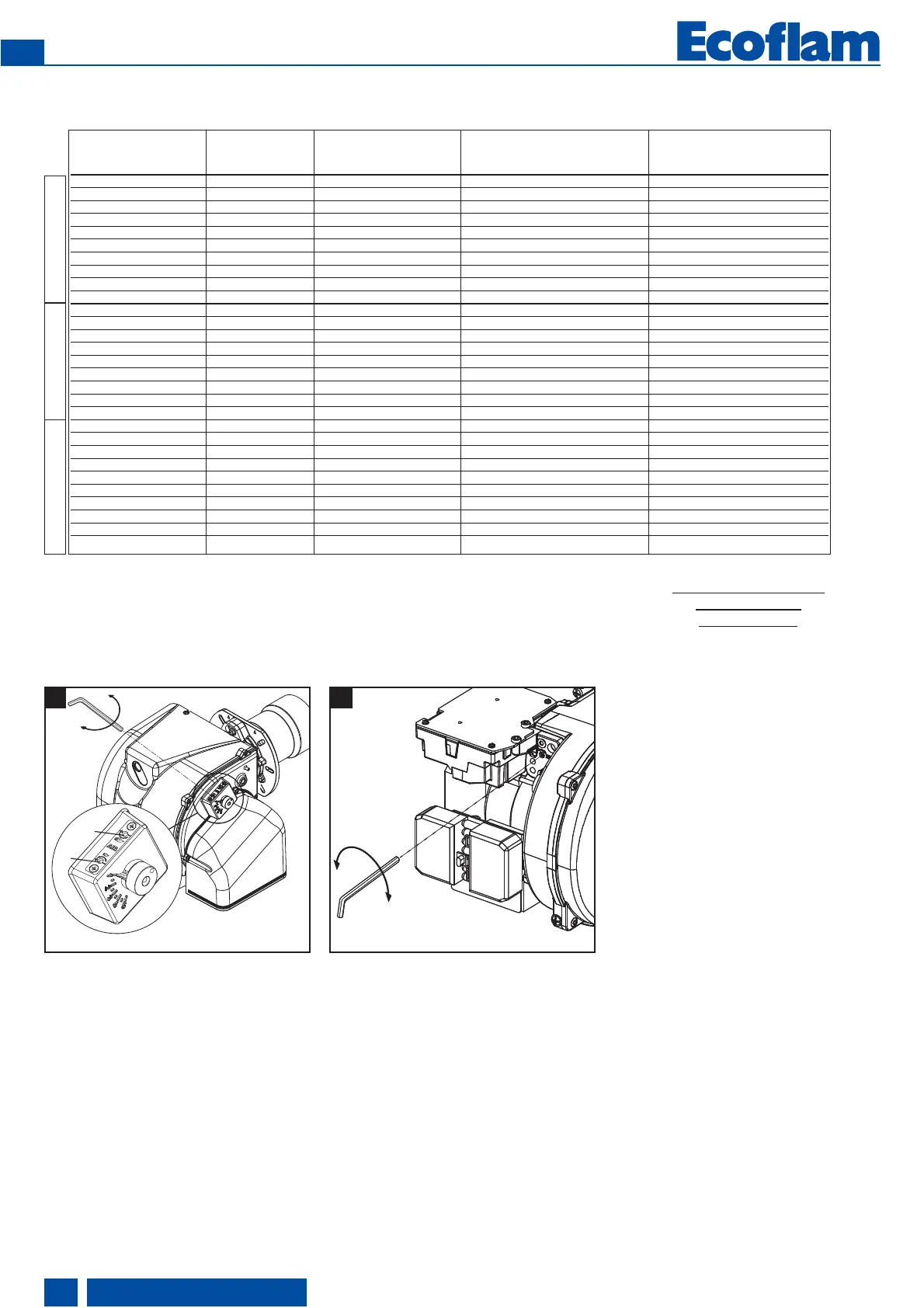

NOZZLE PUMP OUTPUT FIRING HEAD SETTING AIR DAMPER SETTING
gph spry bar kg/h Pos. Pos.
1,50 60° 12 6,2 0 1,5
1,65 60° 12 7,0 1 2,0
1,75 60° 12 7,6 2 2,5
2,00 60° 12 8,3 2,5 3,0
2,25 60° 12 9,3 3 3,2
2,50 60° 12 10,4 3,5 3,5
2,75 60° 12 11,5 4 4
3,00 60° 12 12,5 4,5 4,5
3,50 60° 12 14,9 5 4,5
4,00 60° 11 16,0 5 5
1,75 60° 12 7,6 0 1,5
2,00 60° 12 8,3 1 1,7
2,25 60° 12 9,3 2 2
2,50 60° 12 10,4 2,5 2,8
2,75 60° 12 11,5 3 3
3,00 60° 12 12,5 3,5 3,6
3,50 60° 12 14,9 4,0 4,1
4,00 60° 12 16,7 4,5 4,3
4,50 60° 12 19,1 5 5
2,25 60° 12 9,3 0 1,5
2,50 60° 12 10,4 0,5 2
3,00 60° 12 12,5 1,5 2,2
3,50 60° 12 14,9 2,0 2,5
4,00 60° 12 16,7 2,5 3
4,50 60° 12 19,1 3 3,3
5,00 60° 12 21,8 3,5 3,8
5,50 60° 12 23,6 4 4
6,00 60° 12 25 4,5 4,5
6,50 60° 11 27 5 5
MAX 30
MAX 20
MAX 15
Air damper setting (A).
To act on the screw A in figure:
• to increase output, turn screwdriver
counterclockwise.
• to reduce output, turn screwdriver
clockwise.
Note: screw B not used.
Firing head setting (B).
To act on the screw in figure:
• turn Allen key till you reach the
requested value (index 0-5).
+
-
+
-
B
