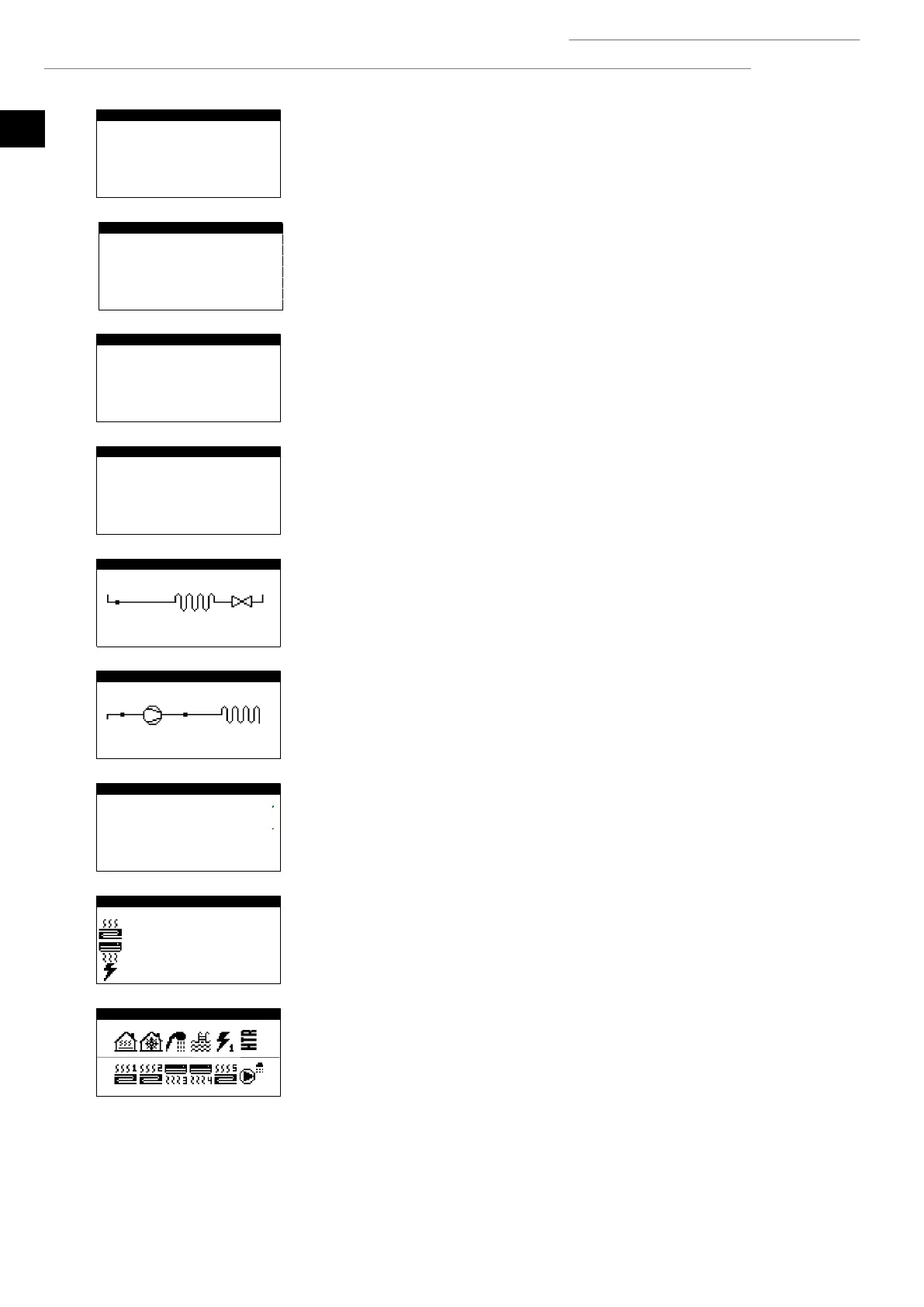

Room terminals
In installations with interior terminals equipped with bus communication (Th-T or TH
sensors), it displays the interior setpoint temperature (Tcons), the current temperature
(Treal) and the current relative humidity (HR) of the terminals assigned to each outlet unit.
Heating buffer / Cooling buffer
This shows the setpoint temperature, the start-up temperature differential and the current
temperature of the buffer storage tank.
There are separate screens for the heating and cooling buffer storage tanks.
Heating groups / Cooling groups
This shows the target outlet temperature (SetT), the current outlet temperature (RealT)
and the regulation percentage (Reg) of each outlet unit.
There are separate screens for the heating and cooling outlet units.
DHW
This shows the setpoint temperature, the start-up temperature differential and the current
temperature of the DHW storage tank.
Expansion valve
This displays the current parameters of evaporator operation and the expansion valve.
Compressor 1
This shows the parameters of compressor and condenser operation.
Compressor 2
This displays the registry of compressor hours of operation, number of start-ups and start-
up/hour ratios.
It also shows the current temperature of the compressor inverter.
Instant meter / Monthly energy meter / Year energy meter
These screens show information regarding heat pump consumption, power, energy
supplied and energy performance.
It has screens with information about the current moment, each month and by year.
Active demands
The upper part shows current demands for compressor start-up.
The bottom part shows the demands received by the heat pump to start the various outlet
units.
Active demands for the compressor or the outlet units do not imply that they will switch
on. There may be other reasons that prevent them from starting up.
