Ecolab Ecodos-PCB - Settings; Speed Potentiometer for SOLID Version (AC-Output)

417101373_Ecodos-PCB.docx
- 26 -
Rev. 10-03.12

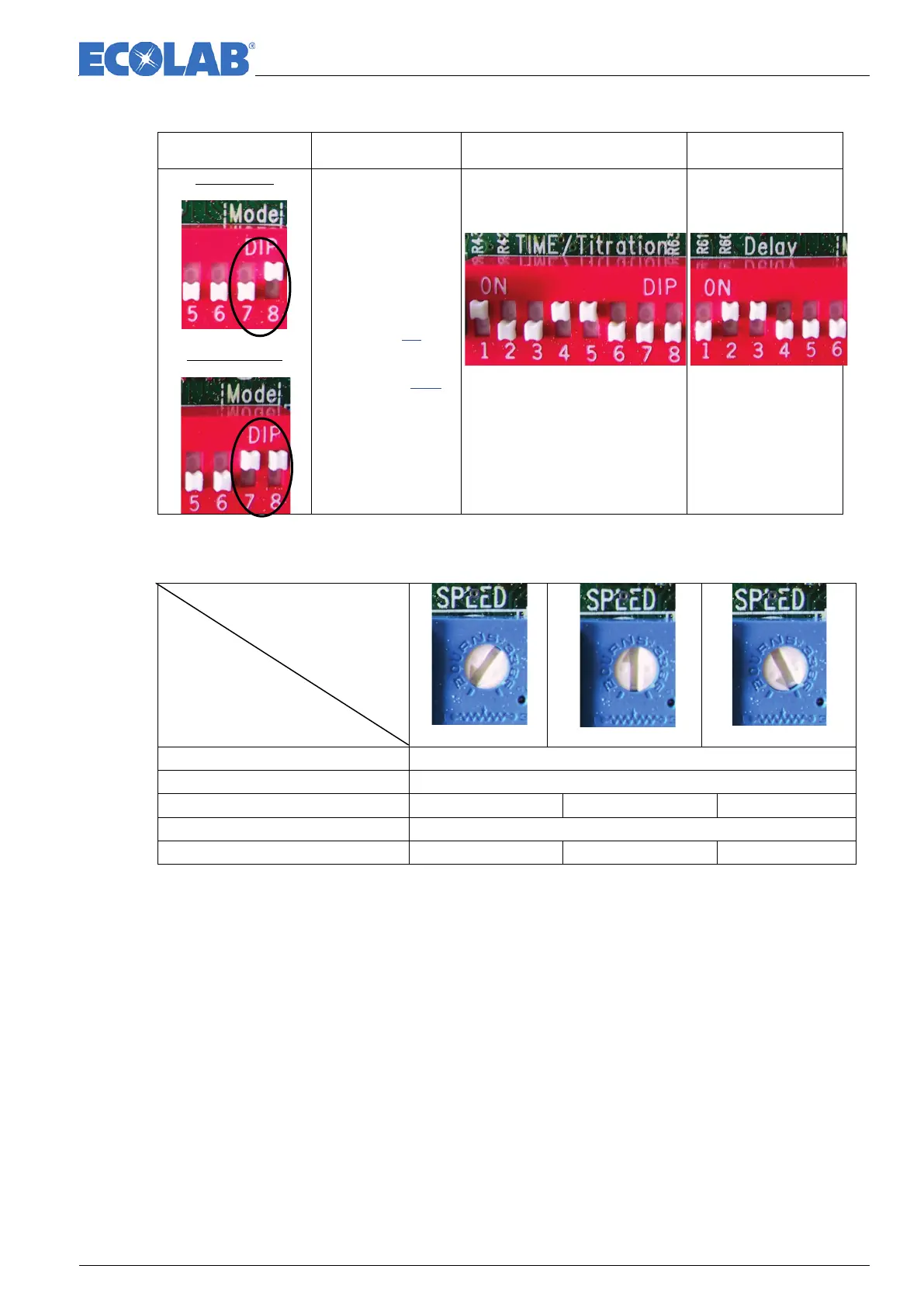

4.3.2 Settings
Mode Speed
Titration
(e.g. 5.0 mS/cm)
Max. dosage time
(e.g. 120 sec)
2-wire probe
(7=OFF, 8=ON)
inductive probe
(7=ON, 8=ON)
For liquid version:
Analog
chapter 4.1
For solid version:
See chapter
4.3.3
4.3.3 Speed potentiometer for SOLID version (AC-output)
Interval time
(Overshoot behaviour)
Concentration
(MIN)
(CENTRAL)
(MAX)
80 … 100% (Non adjustable)
50 … 80% AC output ON: 1 sec (fix)
AC output OFF: 29 sec app 15 sec Never (0 sec)
0 … 50% AC output ON: 1 sec (fix)
AC output OFF: 14 sec app. 7 sec Never (0 sec)
