The following instructions describe the retrofitting of the USB cable using the Ecoplus
PDRX dispensing unit as an example.
Installation Guide
For installing the retrofitting kit, opening the Ecoplus housing is necessary. For this, please
also refer to the Operating Instructions (especially chapters on Assembly and Installation).
Please also follow the safety instructions outlined in the respective manual.
Ecolab Engineering | Institutional Division
02/2023 | p. 2

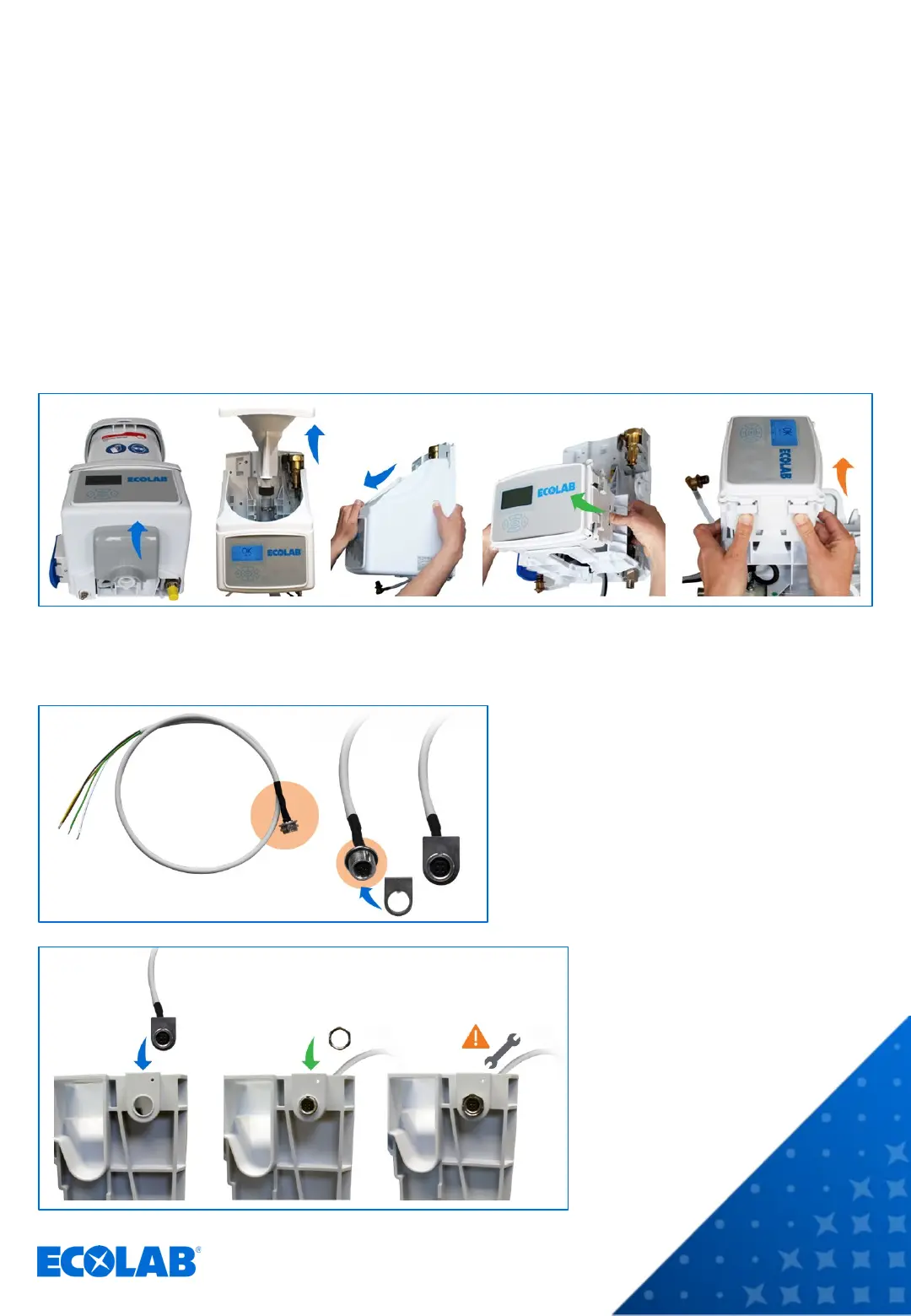

1 Unlock and remove the funnel lock. | 2 Remove the funnel. | 3 Unlock the front housing
(buttons on sides) and remove it. | 4 Press the two tabs on the electronics unit and lift it off
the device rear panel. | 5 Unlock the four tabs of the electronic unit cover and remove it.
5 Prepare USB cable by frontally sliding
the anti-rotation device over the flange
socket.
6 Insert the flange socket into
the slot on the bottom of the
housing rear panel.
7 Place the locknut on the
outside and tighten it.
