3.0 SPECIFICATIONS
3.1 Dimension
• Height: 22" (55 cm)
• Length: 48" (121.9 cm)
• Width: 8" (20.3 cm)
3.2 Services Required
• Water Supply
Minimum - 10 psi (.69 bar)
Maximum - 90 psi (6.2 bar)
• Water Volume
Minimum - 1/2 gal./min. (1.89 liters/min.)
Maximum - 20 gal./min. (75.6 liters/min.)
• Equipment Water Temperature
Minimum - 32°F (0°C)
Maximum - 130°F (54.4°C)
• Electrical 120VAC, 50/60Hz, 1 AMP
3.3 Equipment Supplied
The Mikro-Master 300 dispenser is supplied with a backflow
preventer. This backflow preventer should be installed just
before the shut-off valve to the flow meter. The mixing cham-
ber is a water filter that is internally modified to allow maxi-
mum mixing of the water and the chemical before going to the
distribution system.
3.4 Equipment Not Supplied
Inlet and outlet shut-off valves are not supplied with the
installation kit. If a pressure regulator is necessary, it should
be installed at the inlet to the back flow preventer. A water filter
housing without cartridge, a mounting bracket and a stainless
steel water filter cartridge are available if needed. (See
optional installation items under Lube Systems in the
Repair
Parts Manual.)
This filter should be connected into the input
water supply line.
2

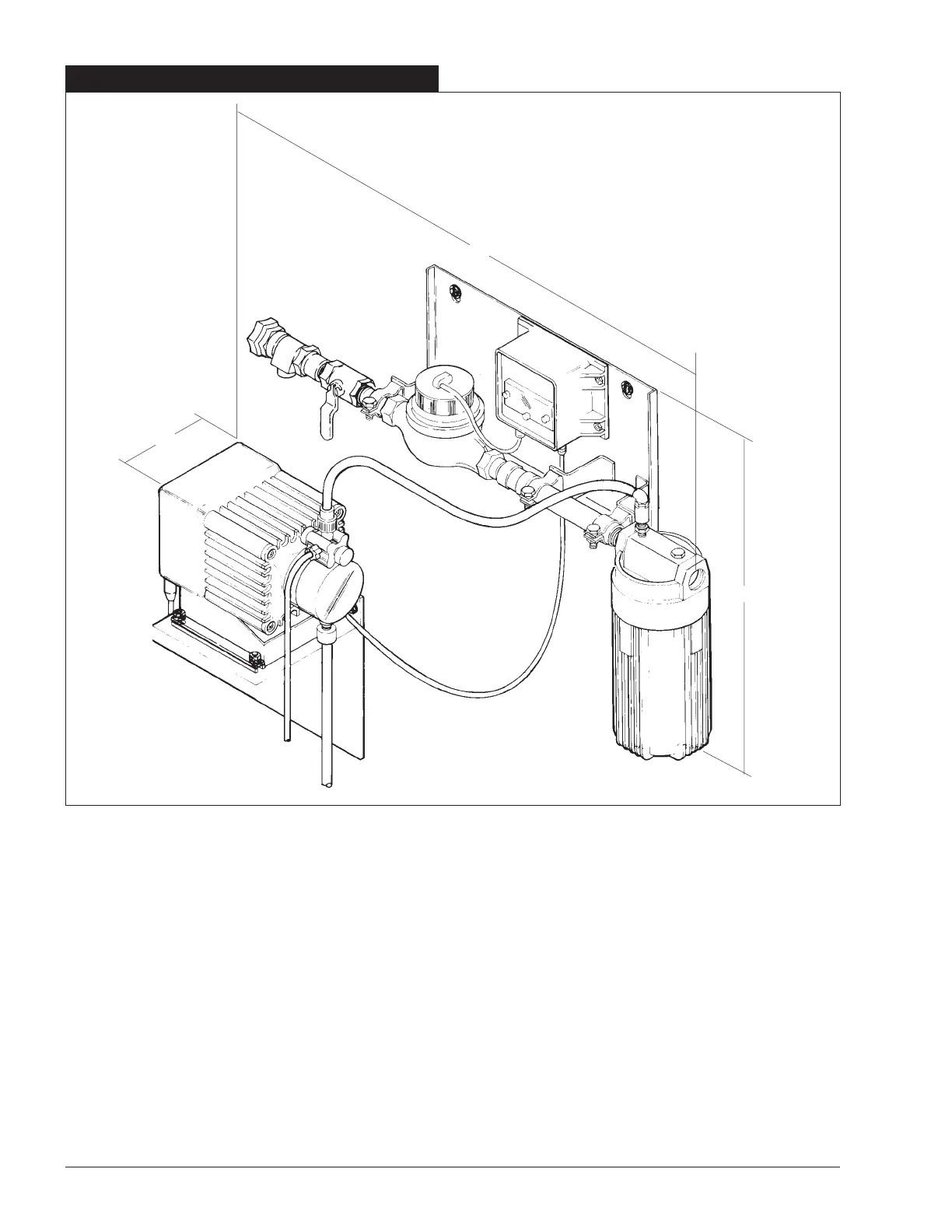

Installation Diagram
W
H
L
