Figure 2
Figure 1
Figure 3

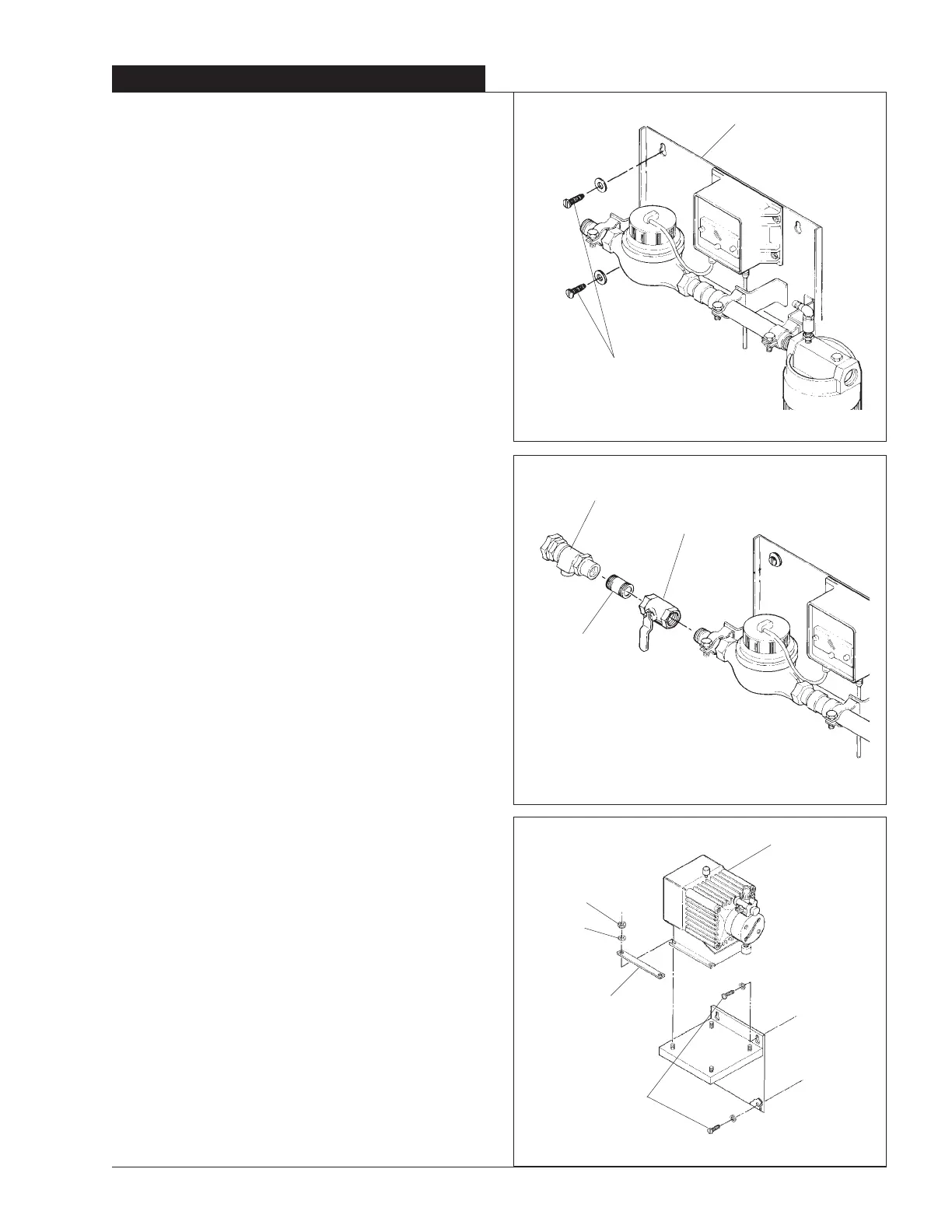

4.0 INSTALLATION PROCEDURES
WARNING - THESE INSTALLATION AND SERVICE IN-
STRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL
ONLY. THE INSTALLATION MUST BE IN ACCORDANCE
WITH THE LOCAL PLUMBING CODES.
1. Remove the water manifold assembly from the shipping
carton and mount on the wall immediately adjacent to the
water line using the screws and wall anchors provided,
refer to Figure1.
Keep in mind that the flow meter manifold
assembly must be mounted horizontally. For the best
results, it should be mounted at the lowest horizontal point
in the pipeline.
NOTE - If the pipeline is not adjacent to a wall, remove
the base from the flow meter manifold assembly and
mount it directly into the pipeline. Insure that the pipe-
line is adequately supported for the extra weight of the
manifold assembly.
2. Install anti-siphon valve and shut-off valve (optional) up-
stream (inlet) of the flow meter manifold assembly,
refer to
Figure 2.
Make sure that the orifice size of the valve is at
least as large as the nominal size of the flow meter. Plumb
the inlet, which is the inlet through the flow meter, on the
left-hand side of the manifold assembly
3. Locate an area on the wall that is convenient to both the
chemical injection point and the 120VAC/60Hz electrical
supply. Mount the pump shelf slightly below the level of
the flow meter pulser assembly so that the head of the
pump is below the injection point on the manifold assem-
bly mixing chamber (this is to keep air in the line from the
pump to the injection point to a minimum),
refer to Figure
3.
Mount the pump on a shelf using the stainless steel
mounting bar, nuts and washers provided. For conven-
ience, the pump can be mounted so the head is either to
the right or left of the injection point on the flow meter
manifold assembly.
4. Plug the cable connector from the programmable divider
into the receptacle located under the control panel of the
pump,
refer to Figure 4.
3
MOUNTING
SCREWS
MIKRO-MASTER MANIFOLD
ASSEMBLY
BACKFLOW
PREVENTER
CLOSE
NIPPLE
NUT
WASHER
MOUNTING
BAR
PUMP
SHELF
MOUNTING
SCREWS
LMI
PUMP
OPTIONAL
SHUT-OFF
VALVE
