2. Display layout
Example:
pressure: 25 bar
Standard
ER
pressure: 25 bar
Standard
ERA
+
-
OK
(1)

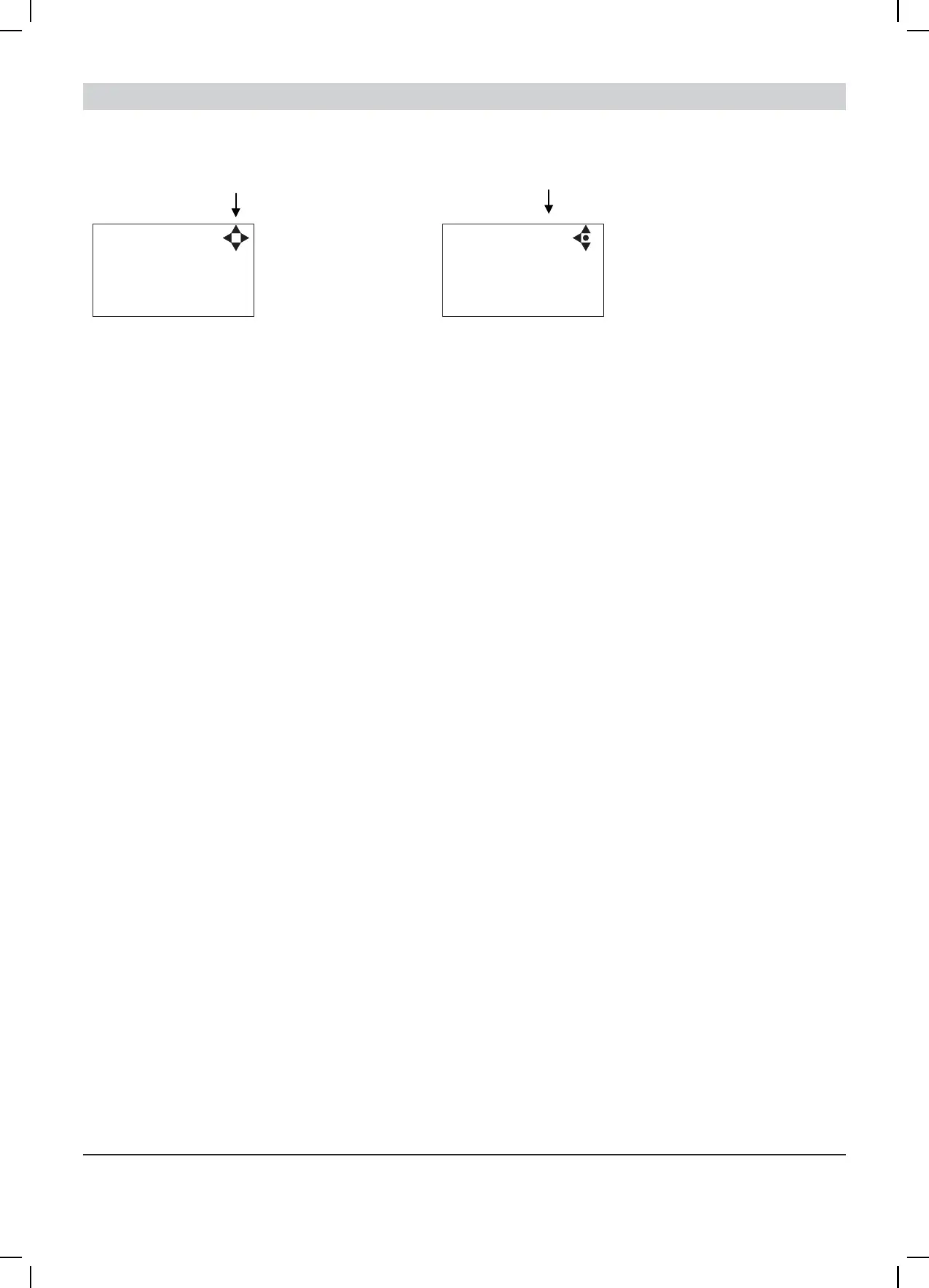

When switched on the display will show an arrow symbol in the top right corner equivalent to the
active navigation buttons on the control board.
The arrows illustrate that it is possible to scroll up and down between the menus. Scrolling to the
right makes it possible to enter a value. Set the value scrolling up (+) or down (-) to set the value
higherorloweraccordingly.Conrmbypressingok.
(2)
A letter combination for easy reference in connection with service work will appear in the top right
corner of the display.
