Installing Upper Universal Mid-Support
Install 2 brackets on high
side of module frame,
positioned 1/3
rd
in from

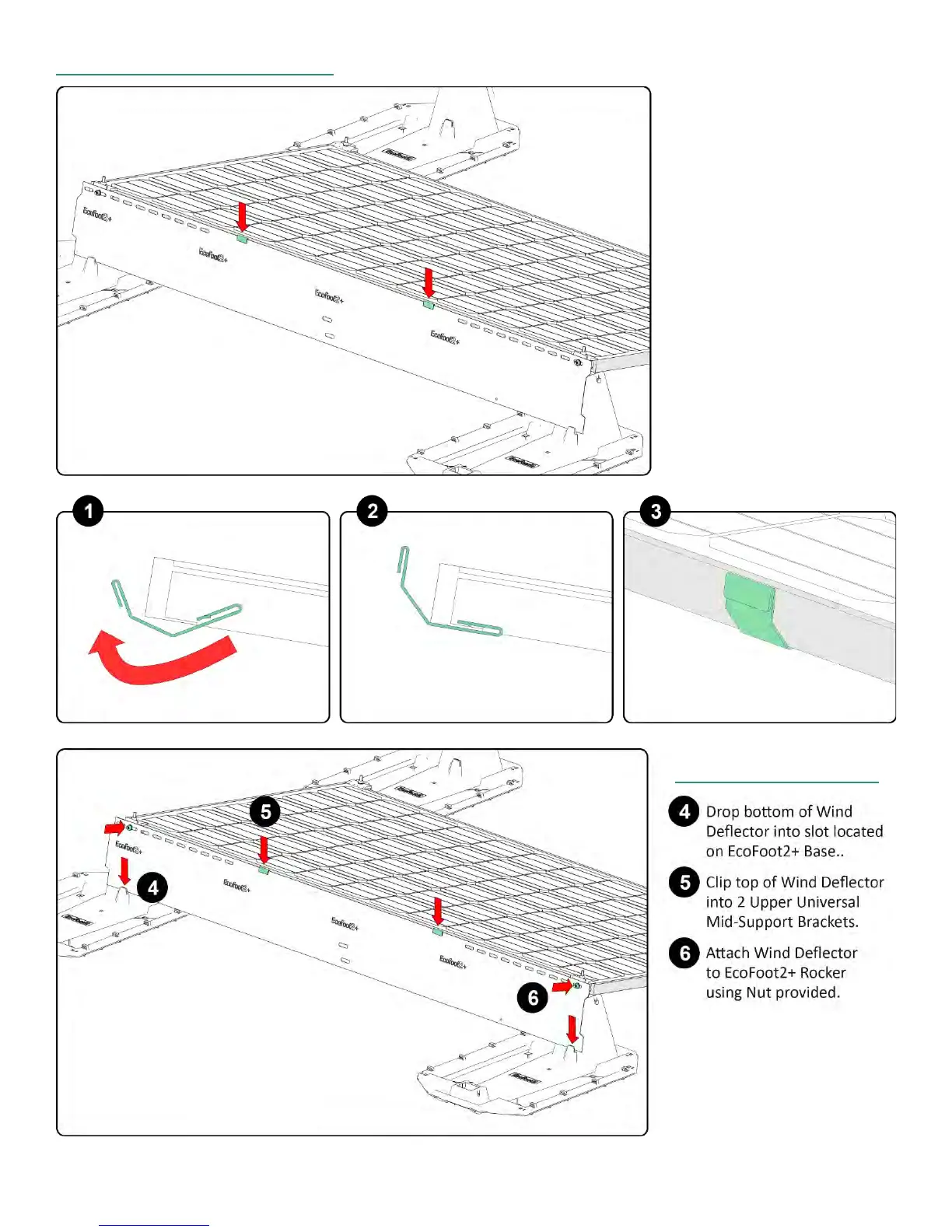

Installing the Wind Deflector
To install, pull brackets onto module return
flange until fully seated as shown below.
