Module Removal
Note: If a module is to be removed from an array, the following steps must be taken.
a) Determine module to be removed
Identify and mark the module to be removed.
b) Install ground lug on adjacent modules
Install a WEEB Lug 6.7 on both modules adjacent to the module to be removed. Utilize the
grounding hole on the frame of the module.

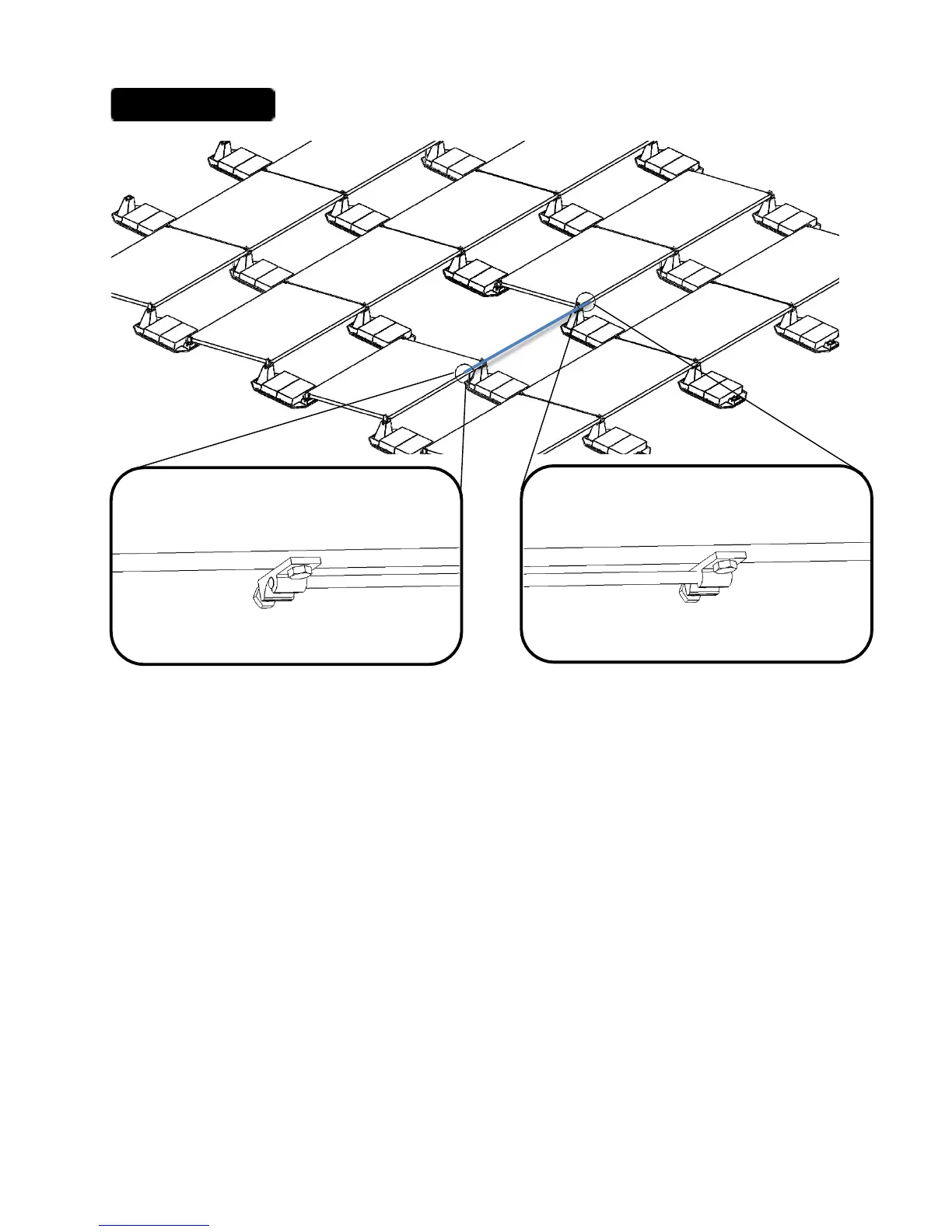

c) Connect Bonding Jumper
Lay a bare #6 CU conductor into the two lay in lugs connected to the adjacent modules. Tighten
lay-in lug terminal screw onto the conductor and torque to 7 ft- lbs.
When wiring the array, keep bare copper from contacting bare aluminum.
ADDENDUM A
