Ecolibrium Solar EcoFoot2+ - Ballast Block Placement

Ecofoot2Plus_Install_Guide_V1.6-FINAL Page 8 of 12
January 5, 2018, ES10560 ecolibriumsolar.com

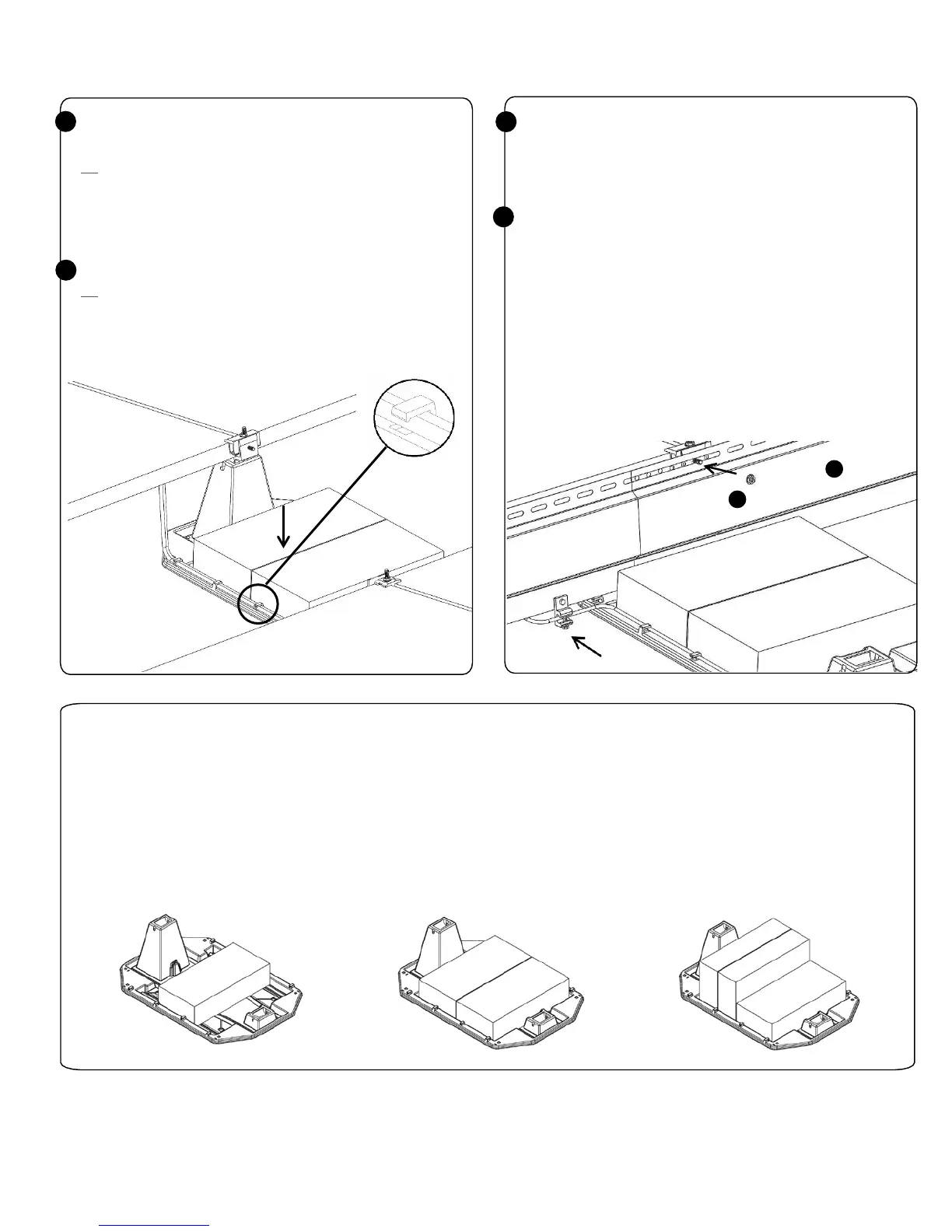

When using two ballast blocks,
lay the blocks flat in the
EcoFoot2+ Base tray.
Three Blocks
F
F
F
When using a single ballast block,
lay the block flat in the center of
EcoFoot2+ Base tray.
4 Place Ballast (not included) as required per
PE Certified Ballast Plan provided.
Tip: See note below for ballast block placement. In
freeze/thaw environments, use concrete block with
minimum compressive strength of 3,000psi (ref ASTM
C1491-03 Standard Specifications for Concrete Roof Pavers).
5 Route, connect and secure conductors.
Tip: Wire clips attached to the module flange (not included) can
be used to dress conductors in a row of modules. Integrated
snap features in the Base can be used to dress conductors
bridging rows.
E
EcoFoot2+
®
Ballast Block Placement
One Block
Two Blocks
When placing three ballast blocks
in the EcoFoot2+ Base tray, lay
one block flat and two on the
long edge. This configuration
helps to prevent blocks from
becoming dislodged accidentally.
6
Place Deflectors (E) into slot on EcoFoot2+® Base and
attach to Rocker using Nut (F) provided. Using a 1/2"
deep socket, torque Nut (F) to 14 ft-lbs. Application of
anti-seize on threaded post is recommended.
7
EcoFoot2+ is listed to carry module-to-module ground
bond through the wind deflector. Each row of
modules/wind deflectors must be grounded per the
NEC and ANSI/NFPA 70
as described in Addendum C of
this Install Guide. See Addendum C for requirements
and Ground and Bond Path.
