Ecofoot2Plus_Install_Guide_V1.6-FINAL Page 6 of 12

January 5, 2018, ES10560 ecolibriumsolar.com

EcoFoot2+

®

Core Components

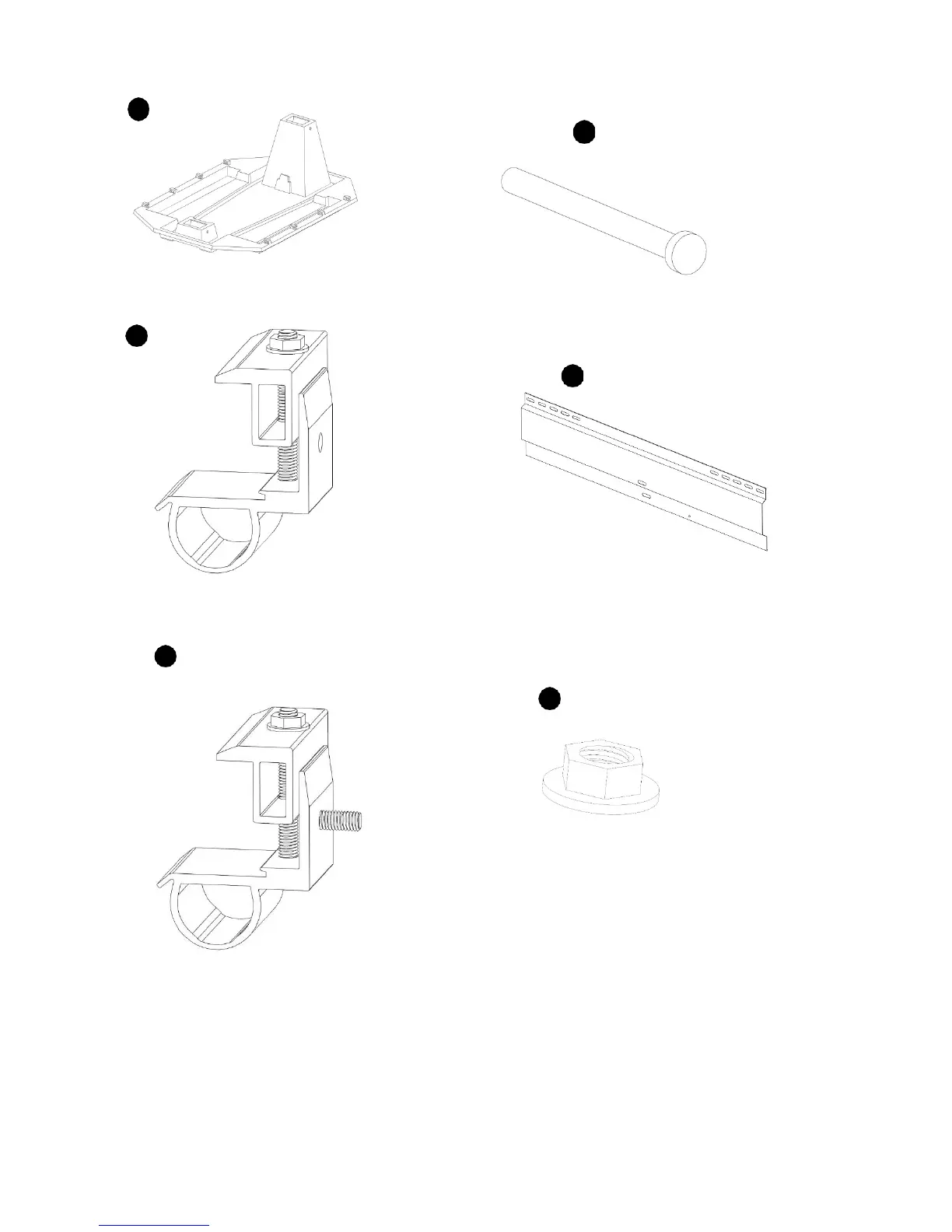

A

EcoFoot2+ Base

D Clevis Pin

B

Clamp-

Lower

F

C

Clamp-

Upper

E Deflector

F Nut
