e-NRG Bioethanol is the only fuel to use in this appliance.

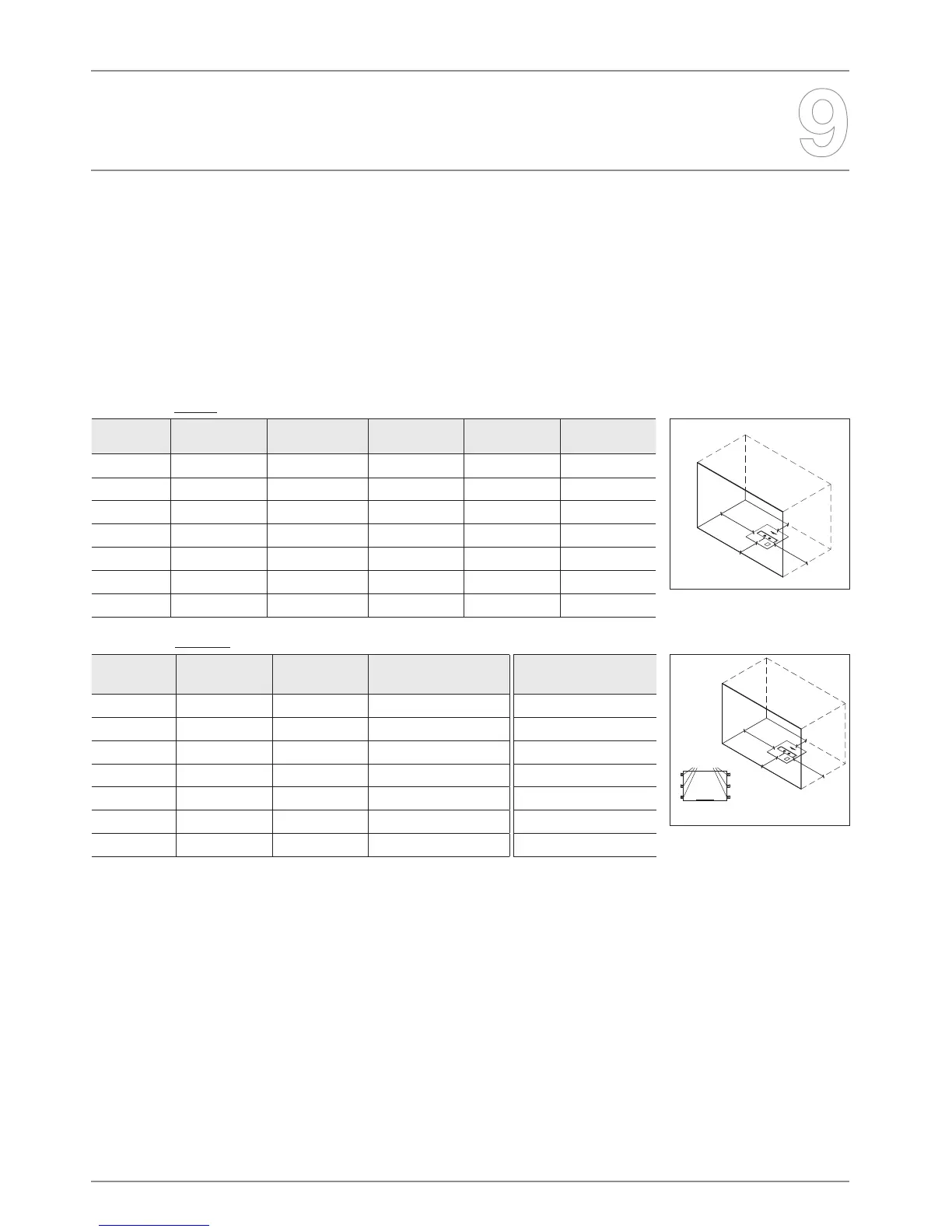

Clearances & Installation
Ensure that the mouth of the ame is positioned a minimum of 1500mm [59.1in] away from curtains,
ammable materials, and other sources of ignition. Be aware of drafts. The oor must be level and the Burner
positioned on a at surface. The Burner must only be placed into non-combustible materials and must be
installed in accordance with the outlined safety requirements and clearances. Please send drawings to your
local representative to conrm the setting complies with the manufacturer’s requirements prior to installation.
Burner Clearances
EcoSmart Fire Burners can be installed into two (2) types of settings:
A. Those that are encased by non-combustible materials similar to that
which you would nd in a traditional masonry set-up. We refer to this
installation type as “WITHIN A FIREBOX SETTING”
B. Those that are not encased by non-combustible materials and set
up in a more modern setting without sides or a top. We refer to this
installation type as “WITHOUT A FIREBOX SETTING”
A. INSERTING WITHIN A FIREBOX SETTING
BURNERS Firebox Width (X) Firebox Depth (Z) Overhead (Y) Rear (B2) Front (B1)
BK SERIES 650mm [25.6in] 365mm [14.4in] 650mm [25.6in] 30mm [1.2in] 45mm [1.8in]
XL900 1200mm [47.2in] 350mm [13.8in] 500mm [19.7in] 40mm [1.6in] 50mm [2.0in]
XL700 1000mm [39.4in] 350mm [13.8in] 500mm [19.7in] 40mm [1.6in] 50mm [2.0in]
XL500 800mm [31.5in] 350mm [13.8in] 500mm [19.7in] 40mm [1.6in] 50mm [2.0in]
XS340 450mm [17.7in] 300mm [11.8in] 450mm [17.7in] 65mm [2.6in] 45mm [1.8in]
AB8 650mm [25.6in] 450mm [17.7in] 800mm [31.5in] 30mm [1.2in] 45mm [1.8in]
AB3 400mm [15.7in] 350mm [13.8in] 500mm [19.7in] 30mm [1.2in] 45mm [1.8in]
B. INSERTING WITHOUT A FIREBOX SETTING
BURNERS Overhead (Y) Front (B1)
Nearest Combustible
Radius (A)
Rear (B2)
(Only if Non-combustible)*
BK SERIES 1500mm [59.1in] 45mm [1.8in] 600mm [23.6in] 30mm [1.2in]
XL900 1500mm [59.1in] 50mm [2.0in] 600mm [23.6in] 40mm [1.6in]
XL700 1500mm [59.1in] 50mm [2.0in] 600mm [23.6in] 40mm [1.6in]
XL500 1500mm [59.1in] 50mm [2.0in] 600mm [23.6in] 40mm [1.6in]
XS340 1500mm [59.1in] 45mm [1.8in] 600mm [23.6in] 65mm [2.6in]
AB8 1500mm [59.1in] 45mm [1.8in] 600mm [23.6in] 30mm [1.2in]
AB3 1500mm [59.1in] 45mm [1.8in] 600mm [23.6in] 30mm [1.2in]
*WARNING! Fire hazard. The rear wall should be non-combustible. If it is combustible, you must allow at
least 600mm (23.6in.) clearance between the wall and the rear of the EcoSmart Fire.
e.g BK SERIES
Y
Z
X
A
B1
A
B2
e.g BK SERIES
min
20mm
[0.8]
Spacers
FRONT VIEW
A
A
B2
B1
Y
The VB2 burner is specially designed as a ‘drop-in’ burner system to a purpose-built, existing or new,
replace setting. You should seek conrmation from the insert manufacturer and install the replace
according to the manufacturers instructions before inserting the burner.
NOTE: The burner is not approved for independent installation under C-UL US.
Custom made reboxes must:
- Be made out of a non-combustible material such as stainless steel
- Be constructed to accommodate a Top Tray
- Have built in spacers of 20mm [0.8in] on all sides to ensure that it does not sit directly against any
combustible materials and an air gap is incorporated for insulation around the box construction. The use of
insulation wool is permitted.
The Fire Company Pty Ltd is not liable for any injuries or damages sustained through the use of custom
made or privately commissioned Fireboxes. The Fire Company Pty Ltd recommends using the Burner in
a Firebox manufactured by The Fire Company Pty Ltd only. The Fire Company Pty Ltd is not liable for any
injuries or damages sustained through the use of custom made or privately commissioned Fireboxes.
A re extinguisher is strongly recommended.
