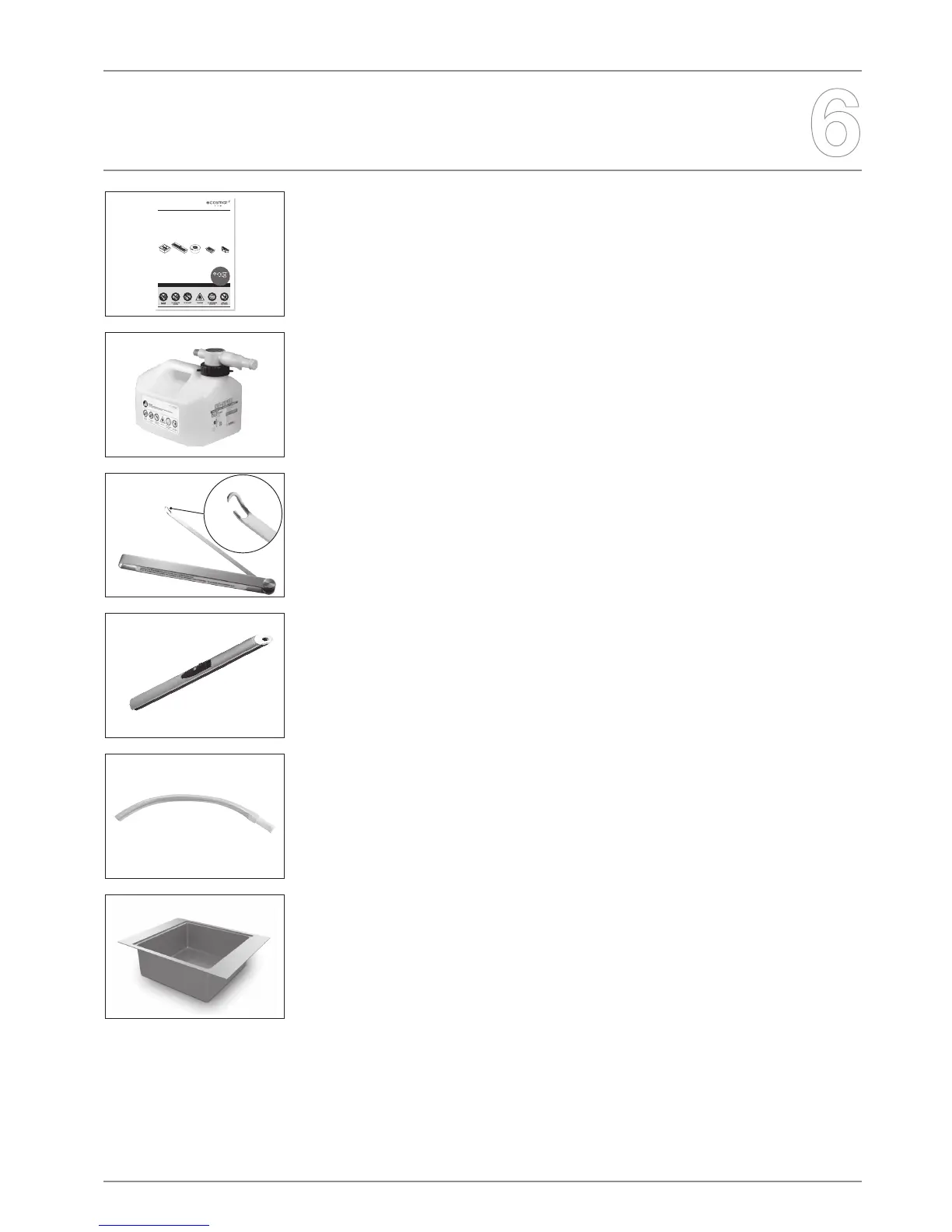

Standard Equipment Received
BK Series AB Series XS Series VB SeriesXL Series
INSTALLATION,
OPERATION
AND MAINTENANCE
MANUAL
PLEASE READ THESE INSTRUCTIONS COMPLETELY
BEFORE OPERATING THE ECOSMART™ FIRE.
! WARNINGS:
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
e-NRG bioethanol is the
ONLY fuel to be used in
this appliance.
Installation, Operation and Maintenance Manual
In order to obtain optimal and safe results from your appliance , we recommend carefully reading the
entire instruction manual.
h 297mm x l 210mm x d 8mm
h [11.7in] x l [8.3in] x d [0.3in]
Jerry Can with Spill Proof Safety Spout (CARB Regulation compliant)
This 4.75 Litres [1.25Gal] Jerry Can has been chosen for its unique safety features. It includes a built-in
ame arrester, an automatic stop ow, a fast ow rate, a locking thumb button control, and a self-venting
system. The Jerry Can will allow safe storing/decanting of the e-NRG Bioethanol used in the Burner.
Due to safety regulations the Jerry Can provided with this package comes without fuel.
h 220mm x l 185mm x d 235mm
h [8.7in] x l [7.3in] x d [9.3in]
Lighting Rod
This long slender piece of stainless steel with a small return at the end enables you to safely
adjust the slider position on the Burner at any time. It is also used for the ignition procedure.
h 657mm x l 28mm x d 23mm
h [25.9in] x l [1.1in] x d [0.9in]
Lighter*
This rellable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further
enhances the management of the lighting process.
* Due to safety regulations the butane lighter provided with this package comes without fuel. Small re-charge cans of butane gas with the necessary
connections can be purchased from your hardware store. Lighter image is indicative only, the model included may vary from time to time.
h 185mm x l 15mm x d 15mm
h [7.3in] x l [0.6in] x d [0.6in]
Extension Spout (AB series Only)
An extension spout is included with the AB3 Burner. This is for use with models that have more
restricted access to the lling point so that lling can be done in a safe manner according to the
procedures outlined in the Operations Manual.
l 500mm x ø 25mm
l [19.7in] x ø [1in]
Top Tray (BK Series only)
The BK series burners come with a protective Top Tray. All other burners do not. Top Trays for other
burners are available as accessories through your local distributor.
BK5 Top Tray BK2 and BK3 Top Tray
h 123mm x l 400mm x d 317mm h 93mm x l 400mm x d 317mm
h [4.8in] x l [15.7in] x d [12.5in] h [3.7in] x l [15.7in] x d [12.5in]
See page 11 for more information on Top Trays.
