INSTALLATION AND OPERATION GUIDELINES FOR REVERSE OSMOSIS SYSTEMS ECOSOFT ROBUST MINI,
ROBUST 1500, ROBUST PRO, ROBUST 3000, ROBUST 3000MAX, ROBUST 4000
ENG

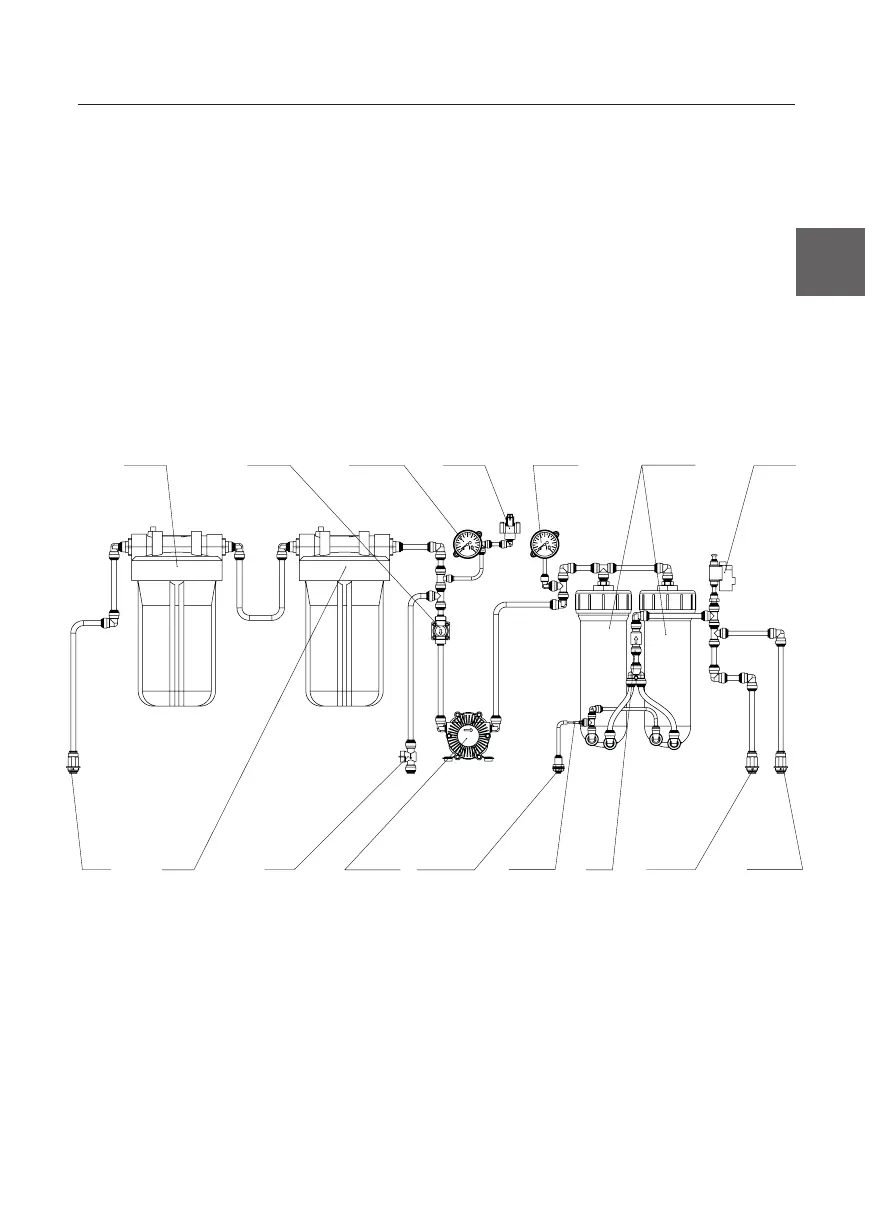

Figure 6. RObust 3000MAX (Code: ROBUST3000MAX)
Flush
valve
Inlet
solenoid
valve
Booster
pump
Operating
pressure
gauge
Afterfilter
pressure
gauge
Low
pressure
switch
High
pressure
switch
Water
inlet
3/8''
Tank
connection
3/8''
Carbon
filter
(CTO)
Permeate
outlet 3/8"
Drain outlet
1/4''
RO element
Carbon filter
(GAC)
Check
valve
Flow
restrictor
