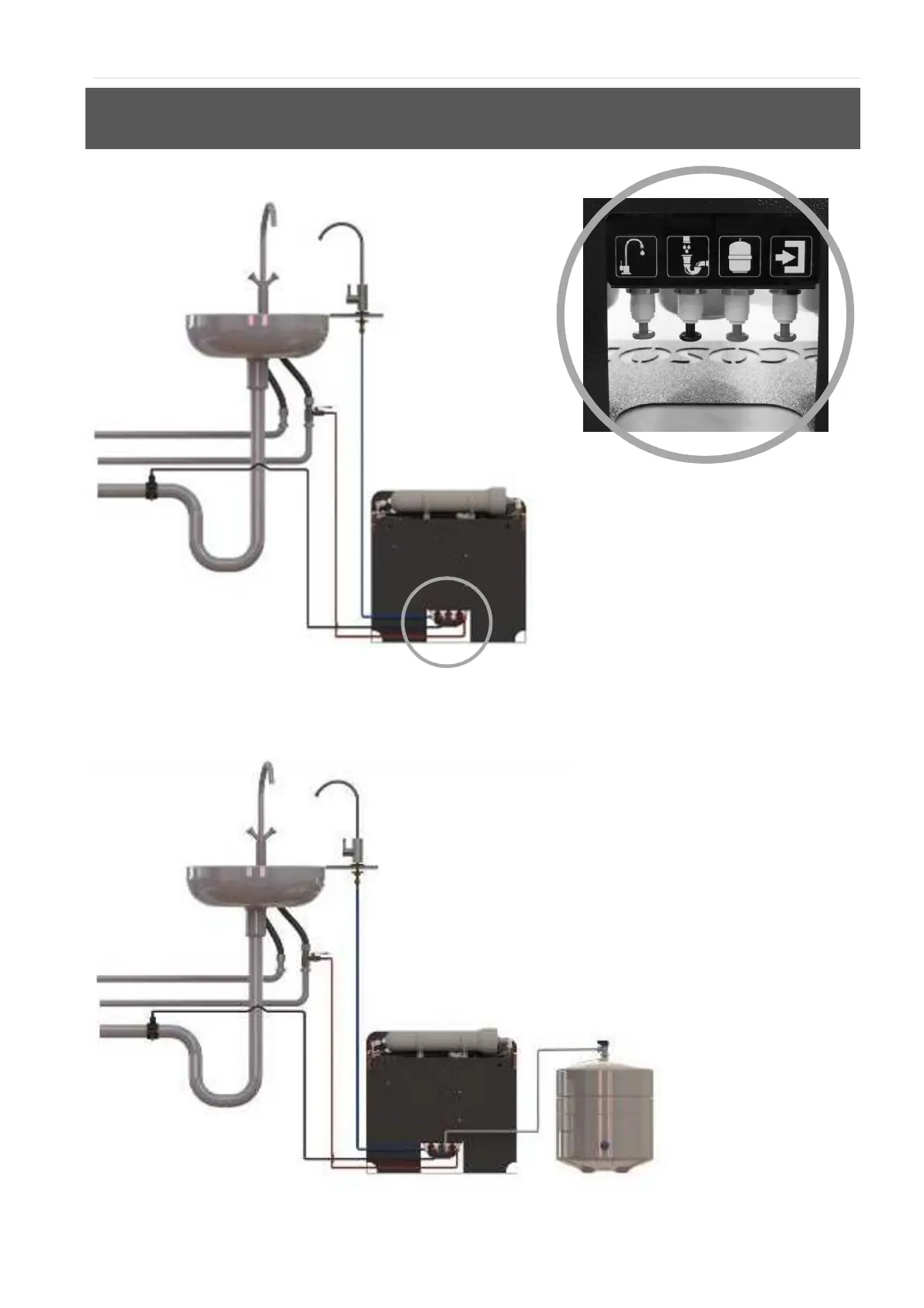

3. INSTALLATION DIAGRAMS
3.1. ECOSOFT Robust base model
3.2. ECOSOFT Robust with pressure tank
Connections.
Purified water. Run blue tube from
purified water port to purified water
faucet.
Drain. Run black tube from drain
port to drain saddle installed on
drain pipe.
Pressure tank. Run white tube from
pressure tank port to the pressure
tank.
Inlet. Run red tube from feed water
outlet to the inlet port in port rack.
To Next Page
