Installation with rain cover

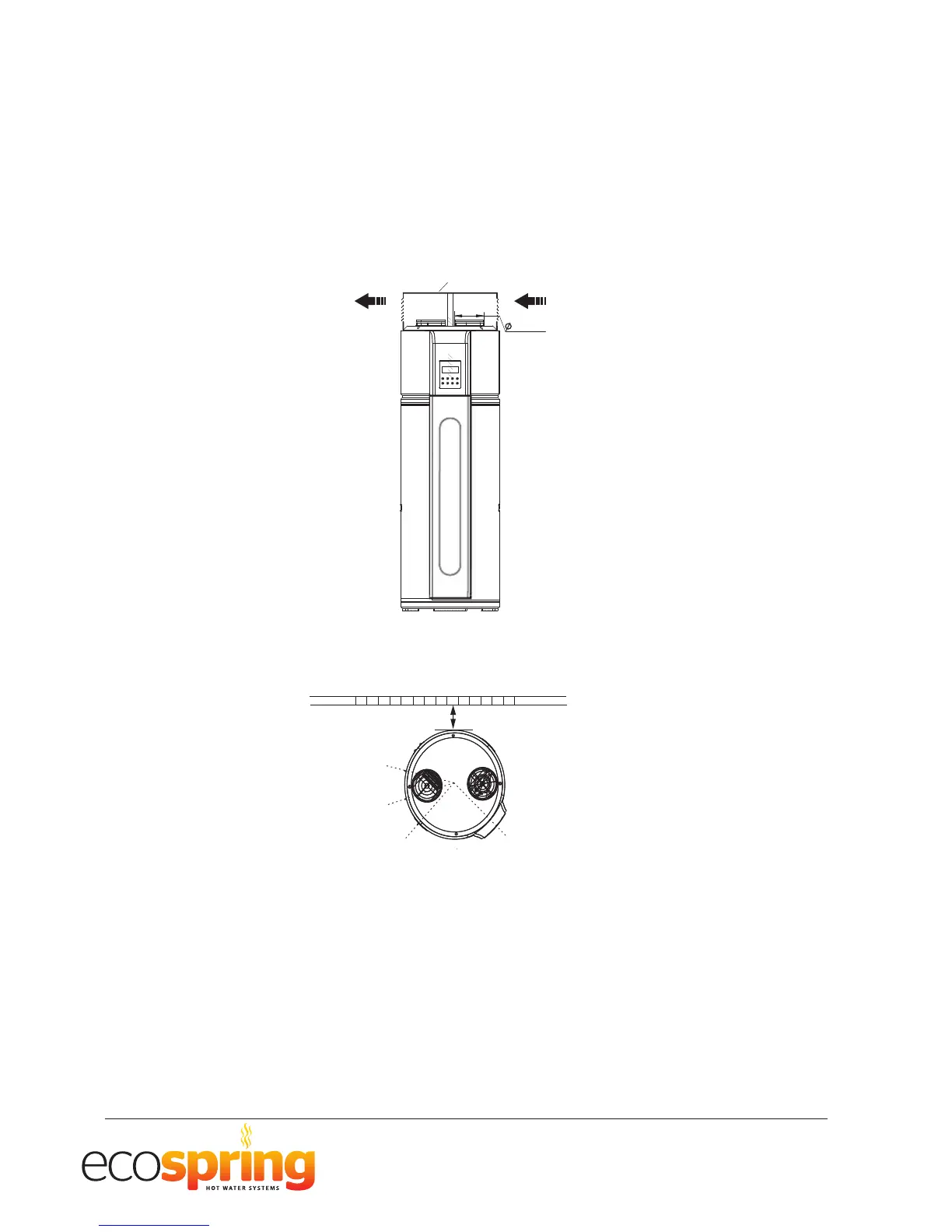

Fig.4.7
4.7 Installation
Installation uses outdoor air.
Air inletAir outlet
190mm
Outdoor rain cover seperates the inlet
and outlet air flow.
≥100mm
Water inlet &
outlet
Anode & Coil
PTR Valve
Display
Rain cover not shown in plan view.
4.7.1 Installation - Outdoors
