CHAPTER 2, INSTALLATION AND OPERATION
98307600 Rev. C-1 2-3

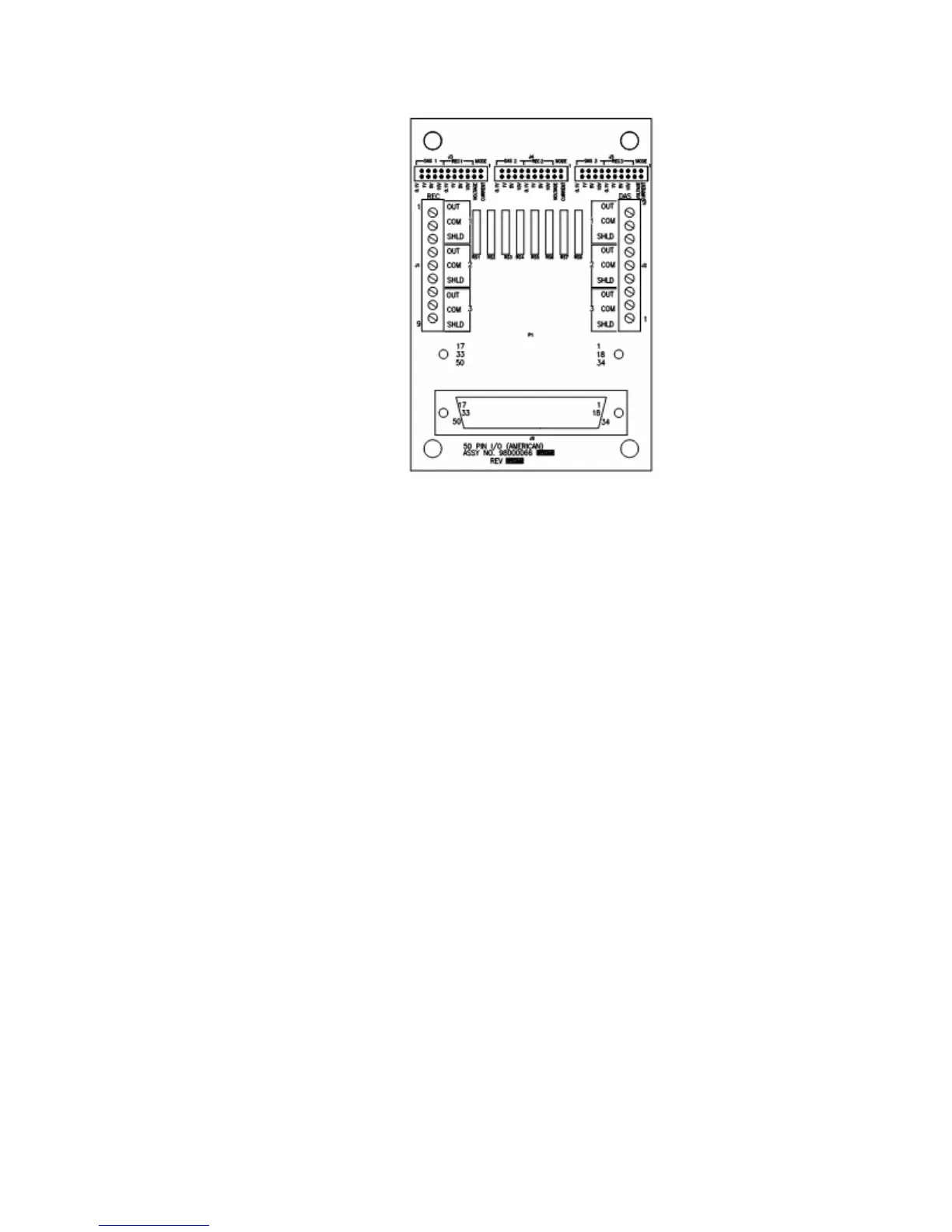

Figure 2-2. 50-Pin Connector Board (Front)
The output is jumper-selectable as:
Current (see Figure 2-3). Range is set using the menu in a later step.
Voltage, with selectable ranges of 0 to 0.1 V, 0 to 1 V, 0 to 5 V, and 0 to
10 V. See Figure 2-3.
