ECR Dunkirk PVWB-5D - Page 24

24
Key
No.
Description
Part
No.
1 ¾” ASME Relief Valve 14622011
2 ¾” x 6½” Nipple 14607002
3
3a
Temperature Pressure Gauge -
2” shank
1260006SP
3b
Tee, 1¼” x 1¼” x ¾”, Black
Iron
PF05901
3c
Bushing, ¾” x ¼”, Black
Iron
1060002
3d
Nipple, 1¼” x 2½”, Black
Iron
14607044
6 1¼” x ¾” x 1¼” Tee 1510001
7 Aquastat Relay 1010002
‡ Isolation Valve Set- Grundfos 14626043
8 Isolation Valve Set- Taco 14626043
‡ Cast Iron Flange Set- Grundfos 14626050
‡ Cast Iron Flange Set- Taco 14626049
‡ Grundfos Pump UP15-42F Circulator CI006.01
9 Taco Pump 007 CI-001.03
10 1¼” x 2½” Nipple 14607044
11 1¼” Bent Return Nipple 14607003
12 Intermittent Pilot Control 14662070
‡ Spill Switch (36TX16-6282) 280°F 14660002
‡ Rollout Switch 14629002
‡ 4” Vent Damper (with 3” Adapter) 1182004
‡ 5” Vent Damper 1182005
‡ 6” Vent Damper 1182006
‡ 7” Vent Damper 1182007
‡ Vent Damper Operator (Motor) 1140002
‡ 2½” x 1¼” Bushing (2 Required) 14693008
‡ 2½” Plug 14693024
‡ 2½” x ¾” Bushing 14693083
‡ ½” Plug (3 Required) 1395003
‡
400°F Black Silicone Rubber Adhesive
Sealant (10.3 oz. Cartridge)
14606020
‡ Not illustrated

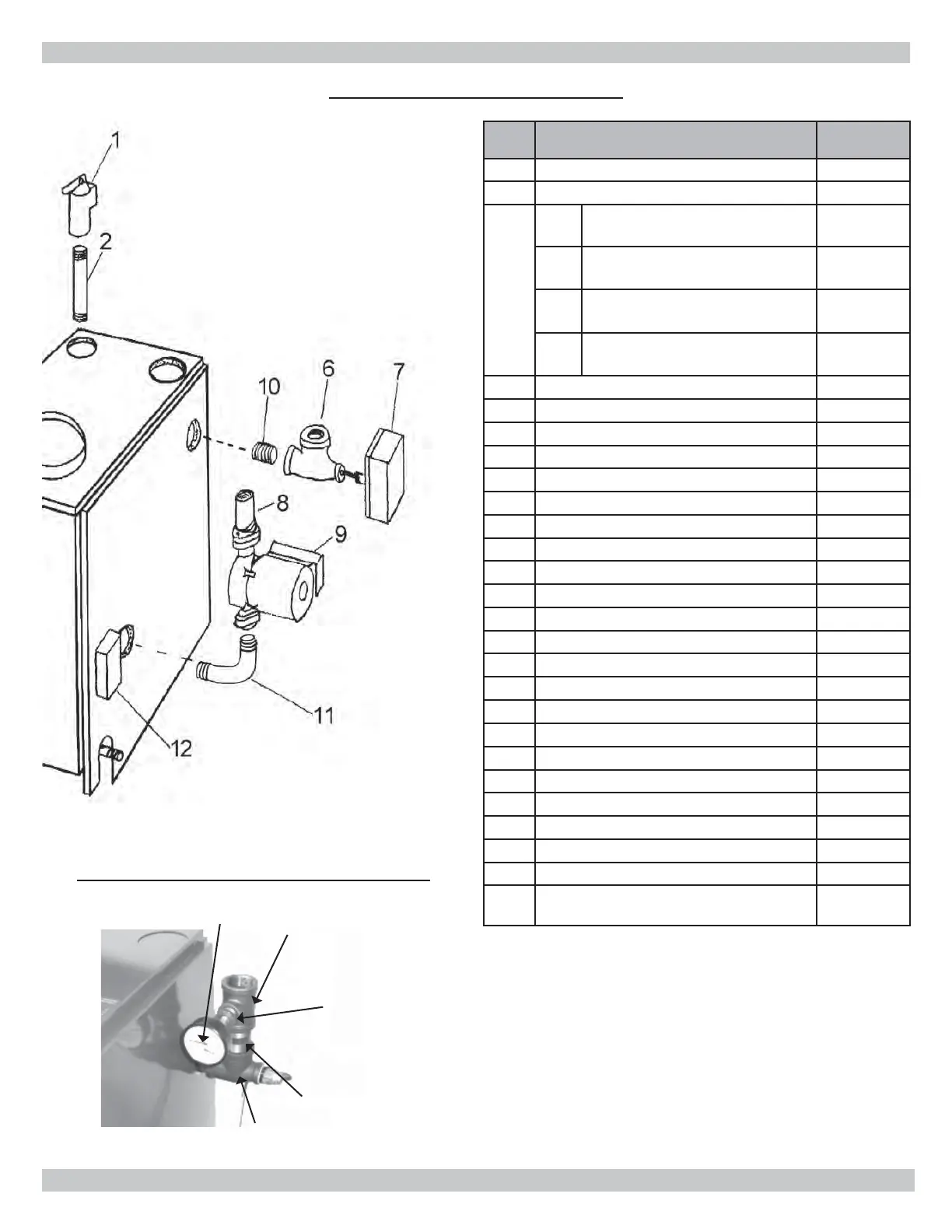

BOILER CONTROLS AND PIPING
REPAIR PARTS
Temperature Pressure Gauge Assembly
3a
3b
3c
3d
6
