Chapter 2
16
A68M-C4DL USER MANUAL

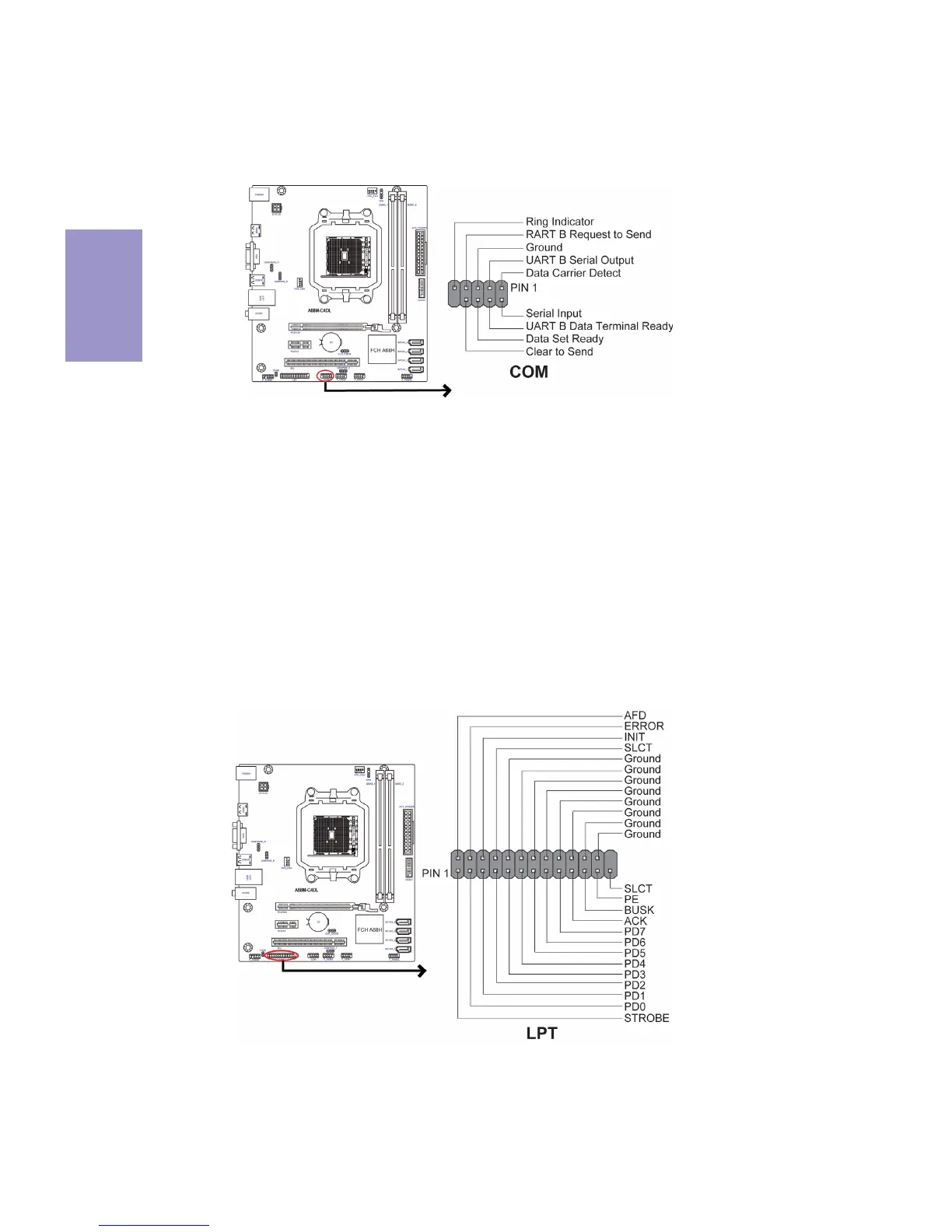

4. COM: Onboard Serial Port
H
eader
Connect a serial port extension bracket to this header to add a serial port to your
system.
5. LPT
: Onboard P
arallel P
ort
H
eader
This is a header that c
an be used to connect t
o the printer
, scanner or other devices.
19
21
Table of Contents
Default Chapter
2
About the Manual
2
Canadian Department of Communications
2
Declaration of Conformity
2
Table of Contents
3
Chapter 1 Introducing the Motherboard
5
Introduction
5
Pakage Contents
5
Specifications
6
Motherboard Components
8
I/O Ports
10
Chapter 2 Installing the Motherboard
11
Safety Precautions
11
Installing the Motherboard in a Chassis
11
Checking Jumper Settings
12
Installing Hardware
13
Installing the Processor
13
Installing the CPU Cooler
14
Installing Memory Modules
15
Installing Add-On Cards
16
Connecting Optional Devices
18
Installing a SATA Hard Drive
23
Connecting Case Components
24
Front Panel Header
27
Hard Drive Activity LED
27
Reset/Power Switch
27
Chapter 3 Using BIOS
29
About the Setup Utility
29
The Standard Configuration
29
Entering the Setup Utility
29
Resetting the Default CMOS Values
30
Using BIOS
30
BIOS Navigation Keys
31
Main Menu
32
Advanced Menu
33
Lan Configuration
34
Pc Health Status
35
Power Management Setup
37
Acpi Settings
38
Cpu Configuration
39
Sata Configuration
40
Usb Configuration
41
Super Io Configuration
42
Chipset Menu
44
South Bridge
45
MB Intelligent Bios III) Menu
46
Boot Menu
48
Security Menu
50
Exit Menu
51
Updating the BIOS
52
Chapter 4 Using the Motherboard Software
53
Auto-Installing under Windows 7/8/8.1
53
Running Setup
53
Manual Installation
55
ECS Utility Software (Intelligent EZ Utility)
55
Chapter 5 Trouble Shooting
57
Start up Problems During Assembly
57
Start up Problems after Prolong Use
58
Maintenance and Care Tips
58
Basic Troubleshooting Flowchart
59
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ECS A68M-C4DL and is the answer not in the manual?
Ask a question
