Chapter 1
6
A68M-C4DL USER MANUAL

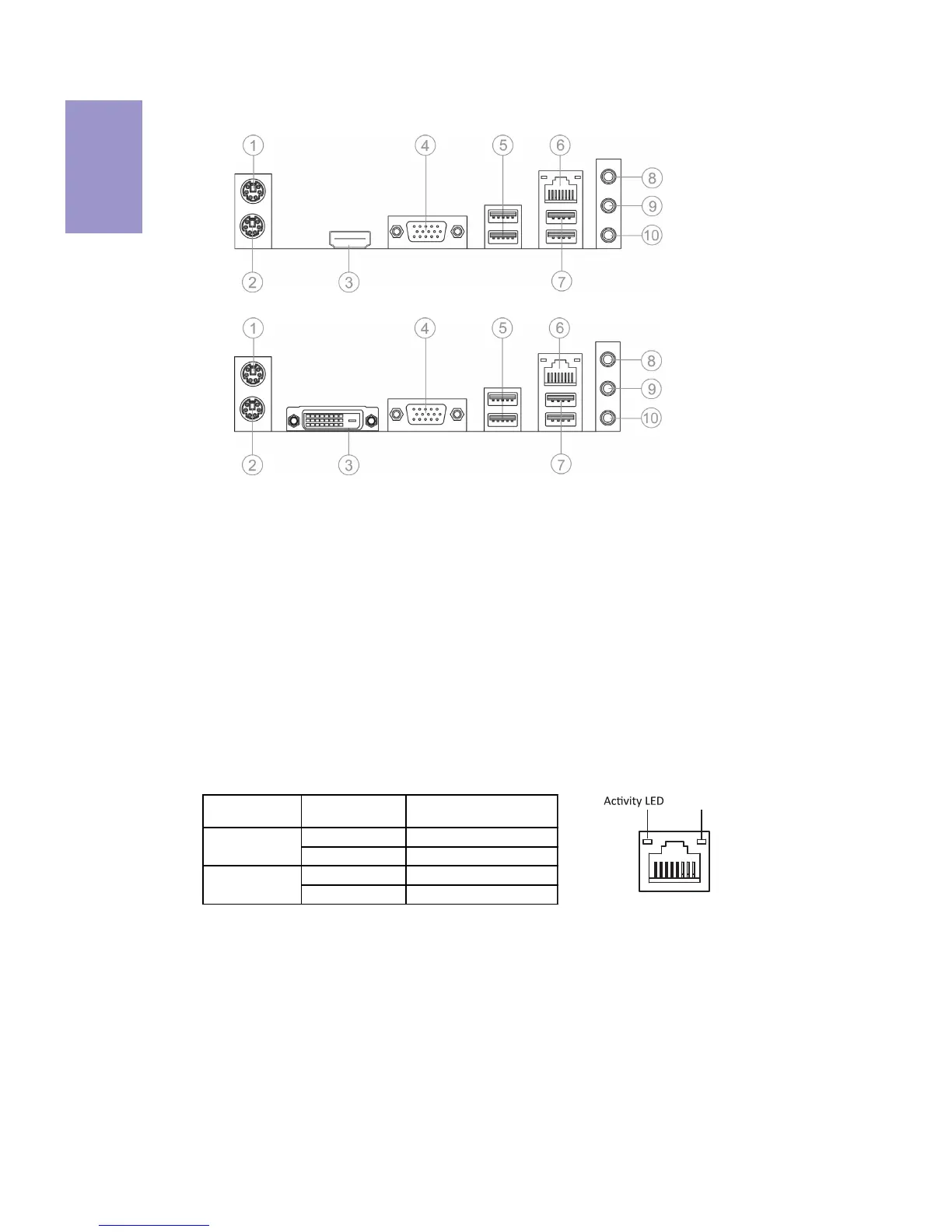

I/O Ports
1. PS/2 Mouse(green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard(purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. HDMI or DVI Port (DVI port optional)
You can connect the display device to the HDMI (or DVI) port.
4. VGA Port
You can connect the display device to the VGA port.
5. USB 3.0 Ports(Blue)
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. USB 2.0 Ports(Black)
Use the USB 2.0 ports to connect USB 2.0 devices.
8. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
9. Line-out(lime)
It is used to connect to speakers or headphones.
10. Microphone(pink)
It is used to connect to a microphone.
