Chapter 2
21
A75F2-M2 USER MANUAL
1 & 2 & 5. SYS_FAN(System Cooling FAN Power Connector) & CPU_FAN(CPU
cooling FAN Power Connector) & PWR_FAN(Power Cooling FAN Power Connec-
tor)
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Connect the CPU cooling fan cable to CPU_FAN.
Connect the System cooling fan connector to SYS_FAN.
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.

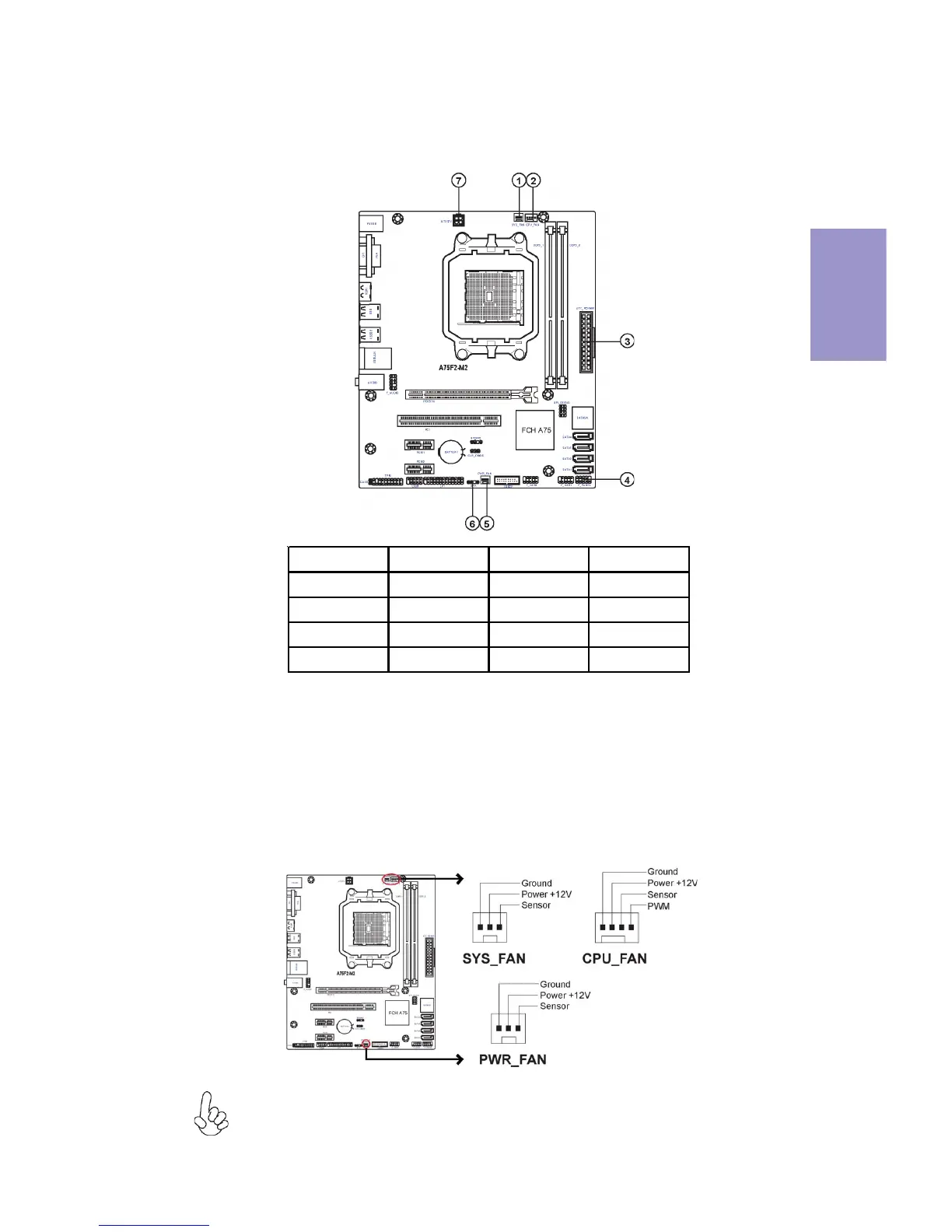

2-4-7. Connecting Case Components
No. Components No. Components
1 SYS_FAN 5 PWR_FAN
2CPU_FAN6 SPK
3 ATX_POWER 7 ATX_12V
4 F_PANEL —— ——
Connect the Power cooling fan connector to PWR_FAN.
