57
A75F2-M2 USER MANUAL
Chapter 5
Chapter 5
Setting Up AMD A75 RAID Configuration
Setting Up a bootable RAID Array
This section explains how to configure a bootable AMD RAID array.
1. Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Setting Up the BIOS
2. Use the arrow keys to select Advanced menu (see Figure 1.1), then select
SATA Configuration and press Enter.

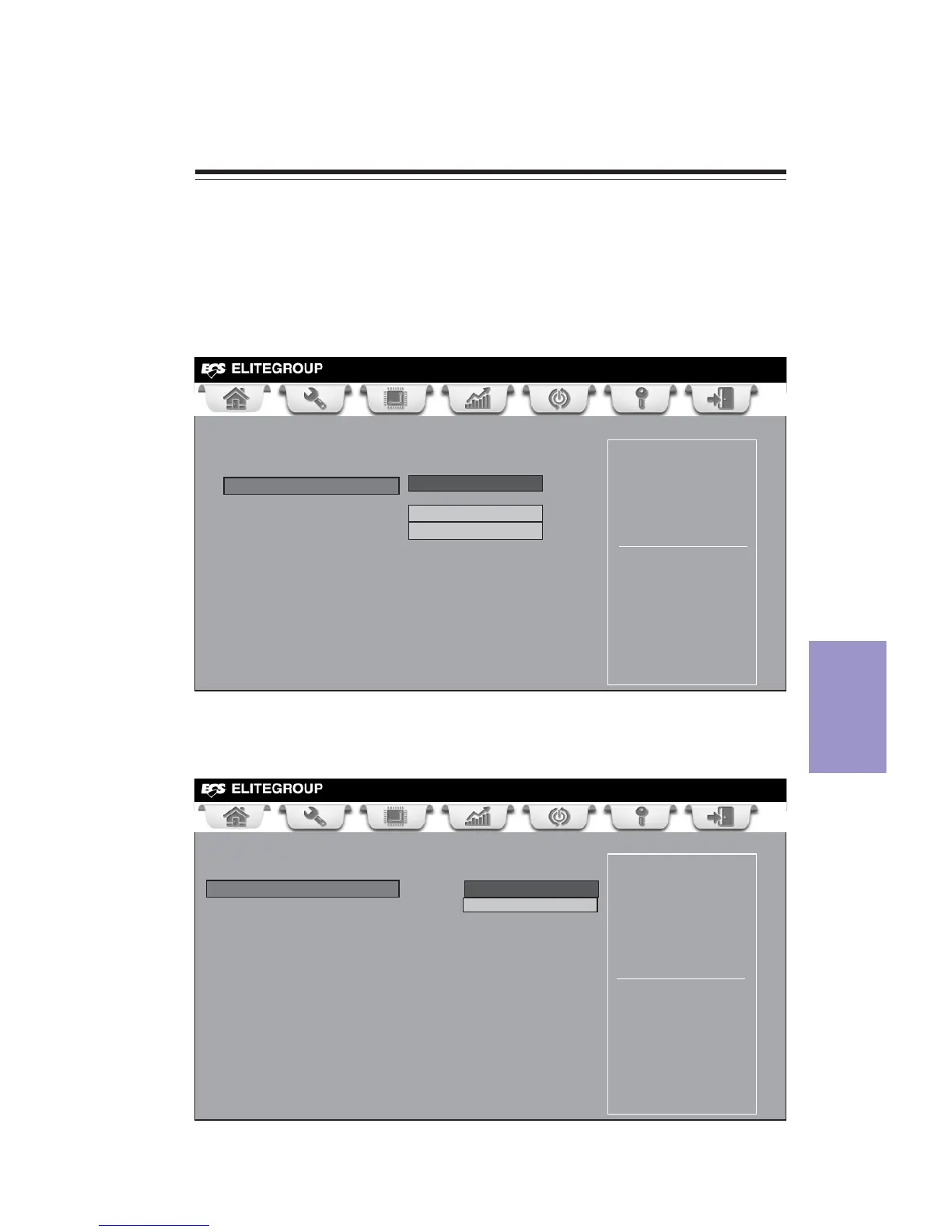

Figure 1.1 BIOS CMOS Setup Utility Main Screen
Figure 1.2 SATA Configuration Screen
Main Advanced Chipset M.I.B III Boot Security Exit
SATA Configuration
Serial-ATA Controller Enabled
SATA Mode IDE Mode
SATA Port1 ST3500413AS (500.1G
SATA Port2 PIONEER DVD-RW ATAPI
SATA Port3 Not Present
SATA Port4 Not Present
SATA Port5 Not Present
SATA Port6 Not Present
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Choose the system default
language
Main Advanced Chipset M.I.B III Boot Security Exit
BIOS Information
System Language English
System Date Fri 04/27/2012
System Time 00:11:52
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
