Installing the Motherboard

Checking Jumper Settings & Clear CMOS Button

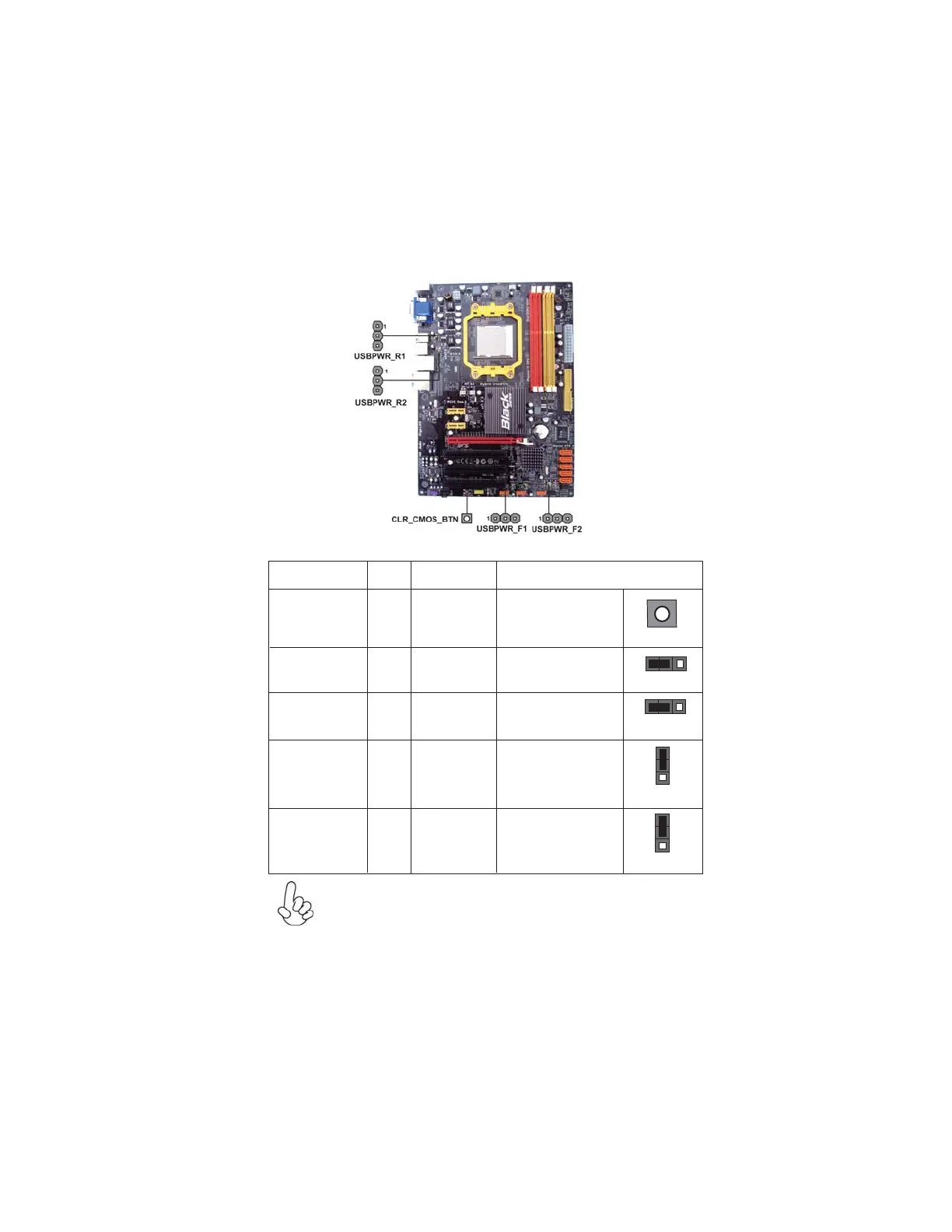

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

1. To avoid the system unstability after clearing CMOS, we recommend

users to enter the main BIOS setting page to “Load Default Settings” and

then “Save & Exit Setup”.

2. Make sure the power supply provides enough 5VSB voltage before

selecting the 5VSB function.

3. It is required that users place the USBPWR_F1~2 & USBPWR_R1~2

cap onto 2-3 pin rather than 1-2 pin as default if you want to wake up the

computer by USB/PS2 KB/Mouse.

USB Power

Cotroller

USBPWR_F1

Jumper

Type Description

Setting (default)

2-3: 5VSB

1-2: VCC5

USBPWR_F1 3-pin

3-pin

2-3: 5VSB

1-2: VCC5

USBPWR_F2

3-pin

2-3: 5VSB

USB Power

Cotroller

USB Power

Cotroller

NO PUSH: NORMAL

PUSH: CLEAR

CLEAR CMOS

button

CLR_CMOS_BTN

USBPWR_F2

USBPWR_R1

USBPWR_R2

1-2: VCC5

2-3: 5VSB

USBPWR_R1

3-pin

USB Power

Cotroller

CLR_CMOS_BTN

Questions and Answers:

Need help?

Do you have a question about the ECS A880GM-AD3 and is the answer not in the manual?

ECS A880GM-AD3 Specifications

General

Number of memory slots	4
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
CPU fan connector	Yes
USB 2.0 connectors	3
Number of SATA connectors	5
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard chipset	AMD 880G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	Radeon HD 4250
Maximum graphics card memory	512 MB
Parallel processing technology support	Hybrid CrossFireX
PCI Express x1 slots	2
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
