Installing the Motherboard

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

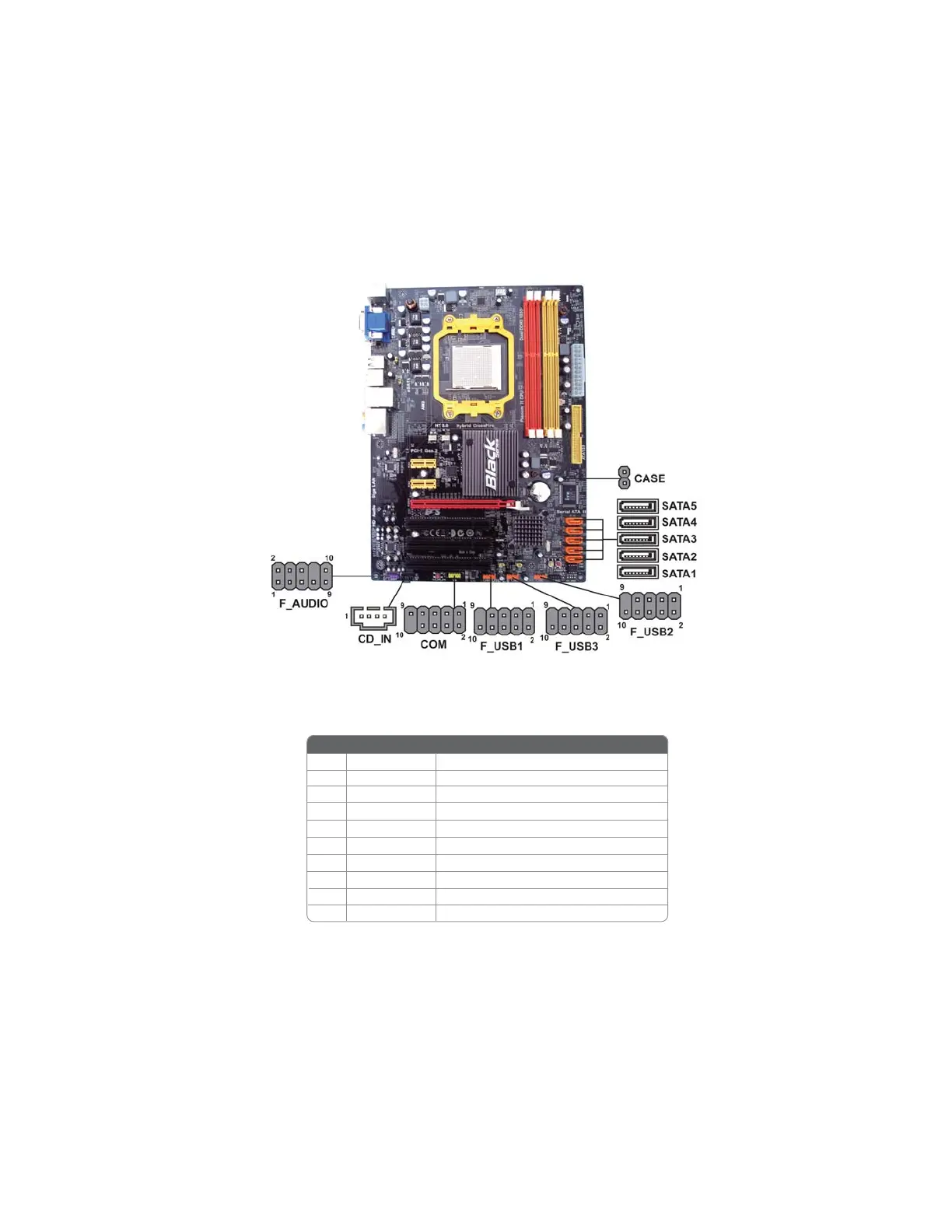

COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.

1 DCDB Data Carrier Detect

2 SINB Serial Input

3 SOUTB UART B Serial Output

4 DTRB UART B Data Terminal Ready

5 GND Ground

6 DSRB Data Set Ready

7 RTSB RART B Request to Send

8 CTSB Clear to Send

9 RI Ring Indicator

10 Key No pin

Pin Signal Name Function

Questions and Answers:

Need help?

Do you have a question about the ECS A880GM-AD3 and is the answer not in the manual?

ECS A880GM-AD3 Specifications

General

Number of memory slots	4
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
CPU fan connector	Yes
USB 2.0 connectors	3
Number of SATA connectors	5
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	6
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888S
Motherboard chipset	AMD 880G
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows XP/Vista/7
Graphics card	Radeon HD 4250
Maximum graphics card memory	512 MB
Parallel processing technology support	Hybrid CrossFireX
PCI Express x1 slots	2
LAN controller	Realtek RTL8111DL
Networking features	Gigabit Ethernet
BIOS type	AMI
BIOS memory size	64 Mbit
