ECS B75H2-M3 User Manual

Chapter 2
16
B75H2-M3 USER MANUAL
Please make sure that the USB cable has the same pin assignment as indi-
cated above. A different pin assignment may cause damage or system hang-
up.

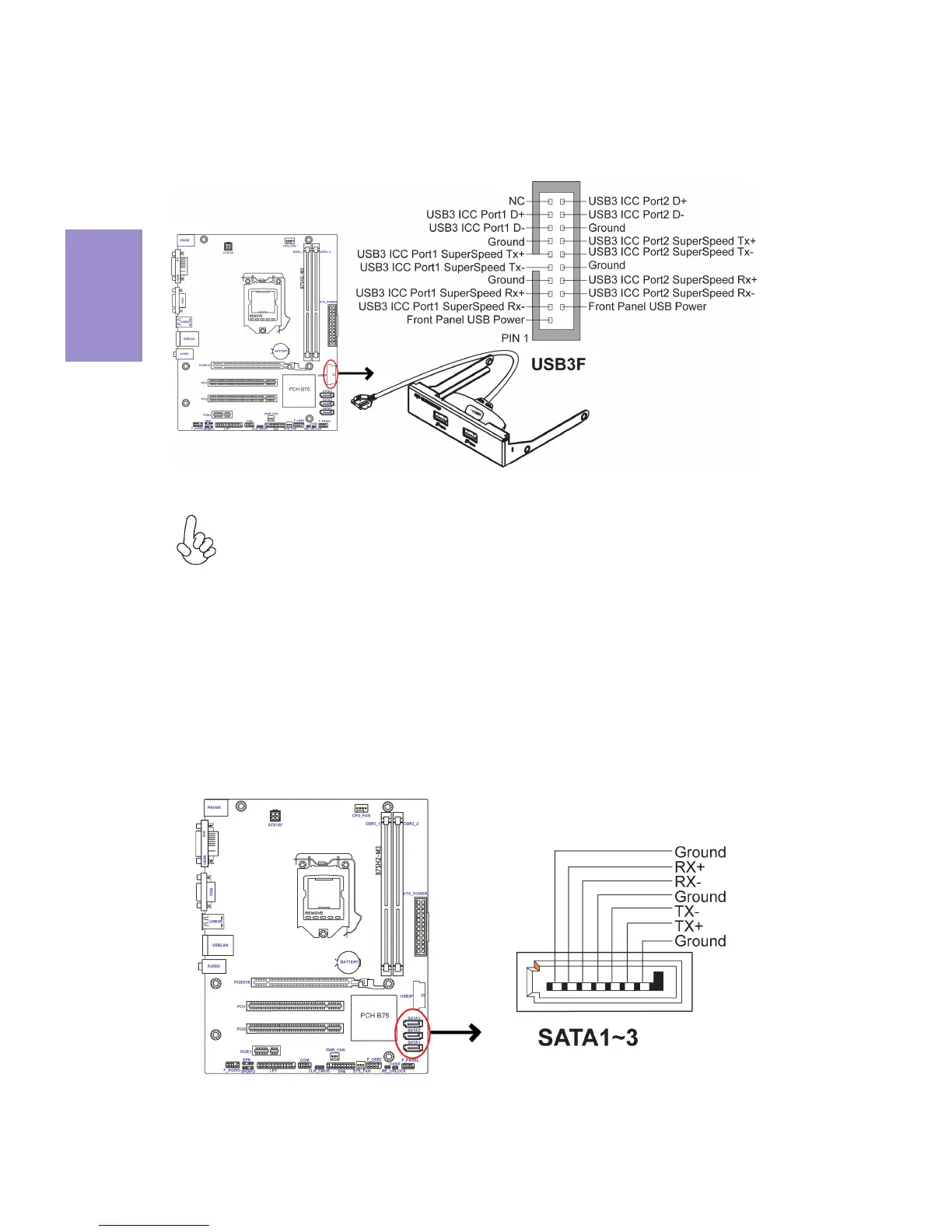

This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0
ports, which delivers 5Gb/s transfer rate.
1. USB3F: Front Panel USB 3.0 header
SATA2~3 connectors are used to support the Serial ATA 3.0Gb/s devices, and SATA1
connector supports the Serial ATA 6.0Gb/s device, simpler disk drive cabling and
easier PC assembly. It eliminates limitations of the current Parallel ATA interface.
But maintains register compatibility and software compatibility with Parallel ATA.
2 & 3. SATA1~3: Serial ATA connectors

ECS B75H2-M3 Specifications

General

Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Power fan connector	Yes
Number of COM connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA
On-board graphics card	No
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	210 mm
Width	244 mm
