ECS B75H2-M3 User Manual

Chapter 3
B75H2-M3 USER MANUAL
43
Use this item to show the information of trusted computing configuration.
TPM Support (Enabled)
Use this item to enable or disable the TPM port.O.S. will not show TPM.Reset
of platform is required.
Trusted Computing
Enable or Disable Bios
Support for security
device. O.S. will not show
Security Device.TCG EFI
Protocol and INT1A
interface will not be
available.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

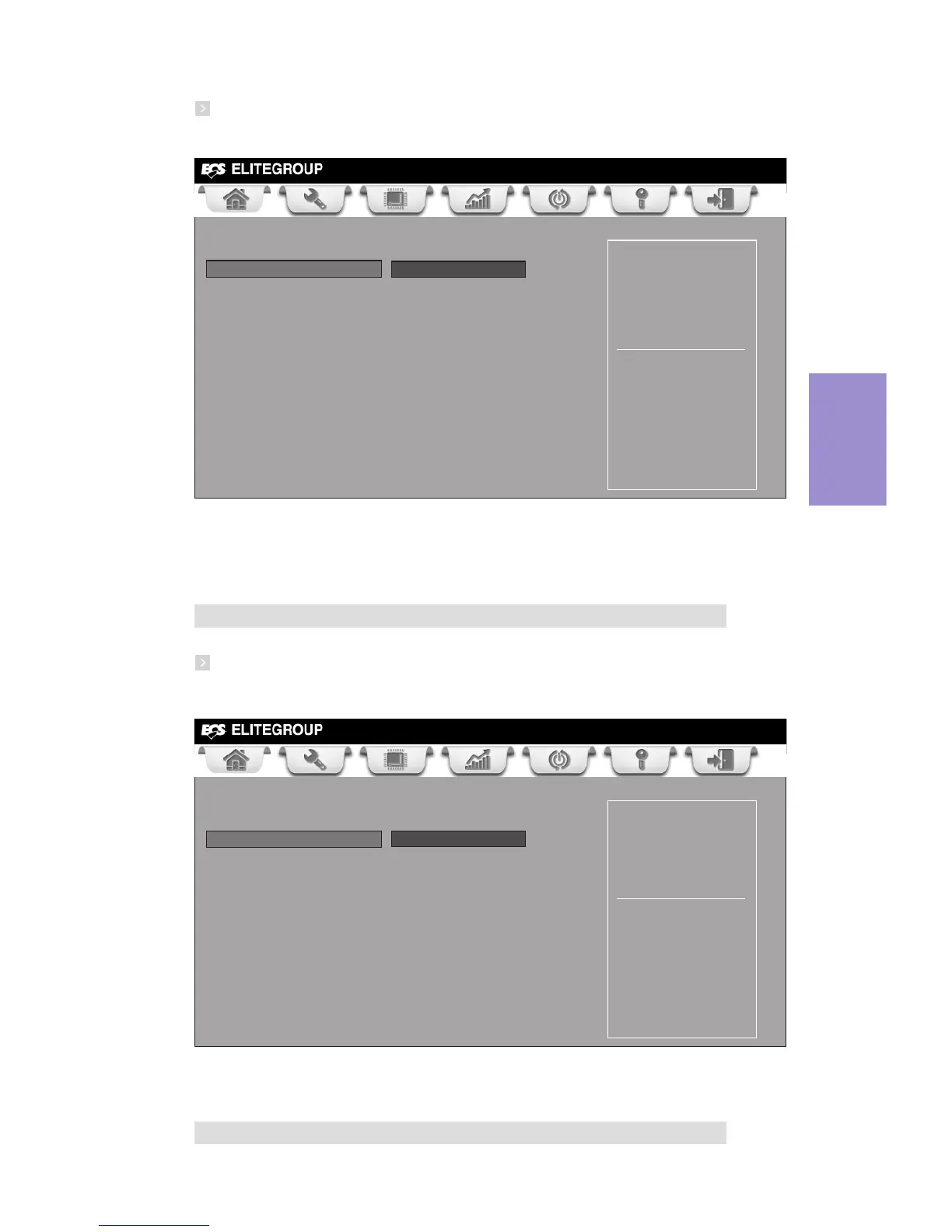

TPM Configuration
TPM Support Enabled
Current TPM Status Information
No Security Device Found
F2: Previous Values

Use this item to show the information of
Intel(R) Rapid Start Technology.
Intel(R) Rapid Start Technology
Press <Esc> to return to the Advanced Menu page.
Intel(R) Rapid Start Technology
(Disabled)
Use this item to enable or disable the Intel(R) Rapid Start Technology.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select

: Select Screen
/Click: Select Item
F1: General Help
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology Disabled
F2: Previous Values

Press <Esc> to return to the Advanced Menu page.

ECS B75H2-M3 Specifications

General

Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Power fan connector	Yes
Number of COM connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA
On-board graphics card	No
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	210 mm
Width	244 mm
