ECS B75H2-M3 User Manual

Chapter 2
22
B75H2-M3 USER MANUAL
2-4-6. Installing a SATA Hard Drive
About SATA Connectors
Your motherboard features three SATA connectors supporting a total of three drives.
SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface
for the IDE hard drives which are currently used in most PCs. These connectors are
well designed and will only fit in one orientation. Locate the SATA connectors on the
motherboard and follow the illustration below to install the SATA hard drives.
To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial
ATA protocol. This SATA cable comes with a SATA power cable. You can connect either
end of the SATA cable to the SATA hard drive or the connector on the motherboard.

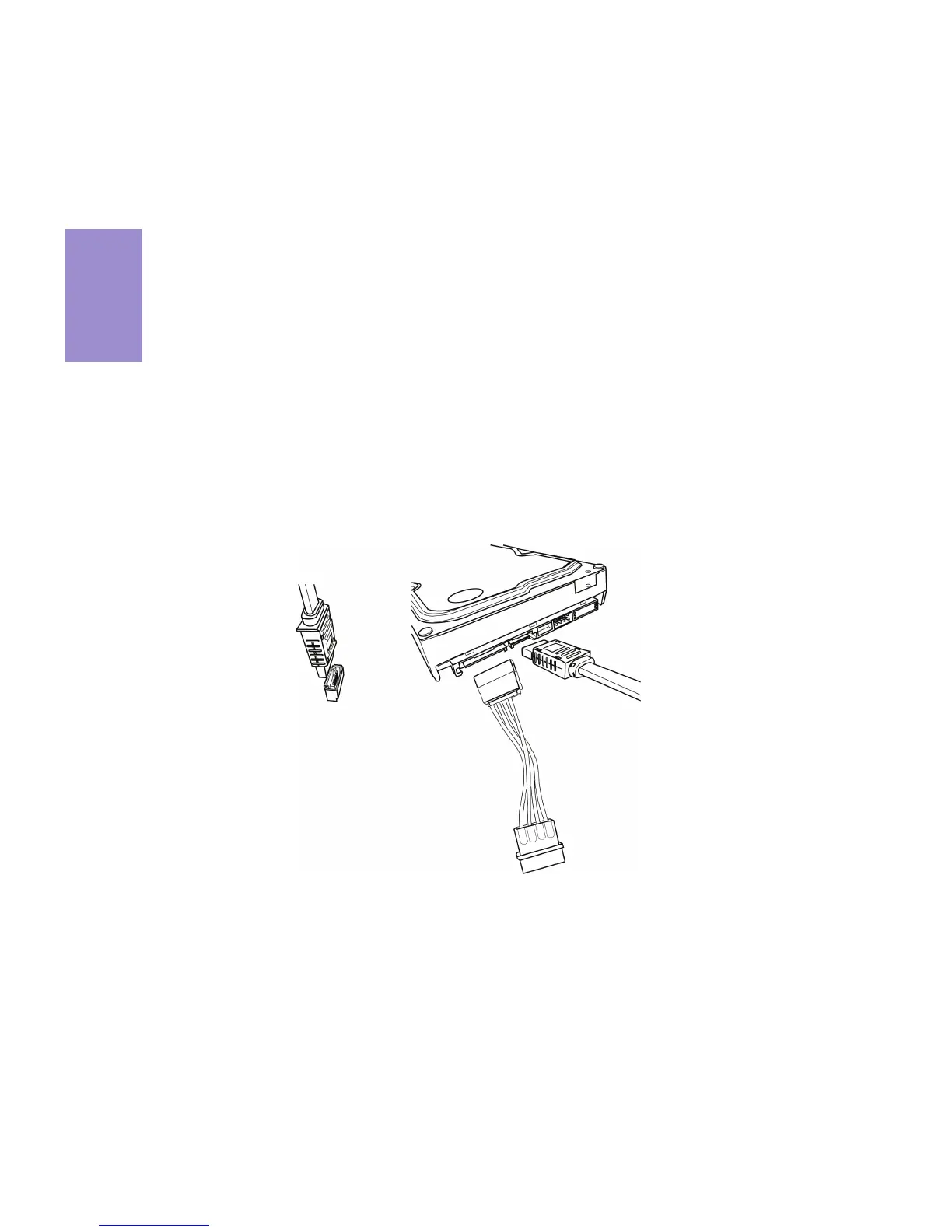

Refer to the illustration below for proper installation:
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the other
end to the power supply.
* For reference only
Installing Serial ATA Hard Drives
This section describes how to install a SATA Hard Drive.

ECS B75H2-M3 Specifications

General

Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	4
Power fan connector	Yes
Number of COM connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA
On-board graphics card	No
Ethernet interface type	Gigabit Ethernet
Sustainability certificates	ENERGY STAR
BIOS type	AMI
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	210 mm
Width	244 mm
